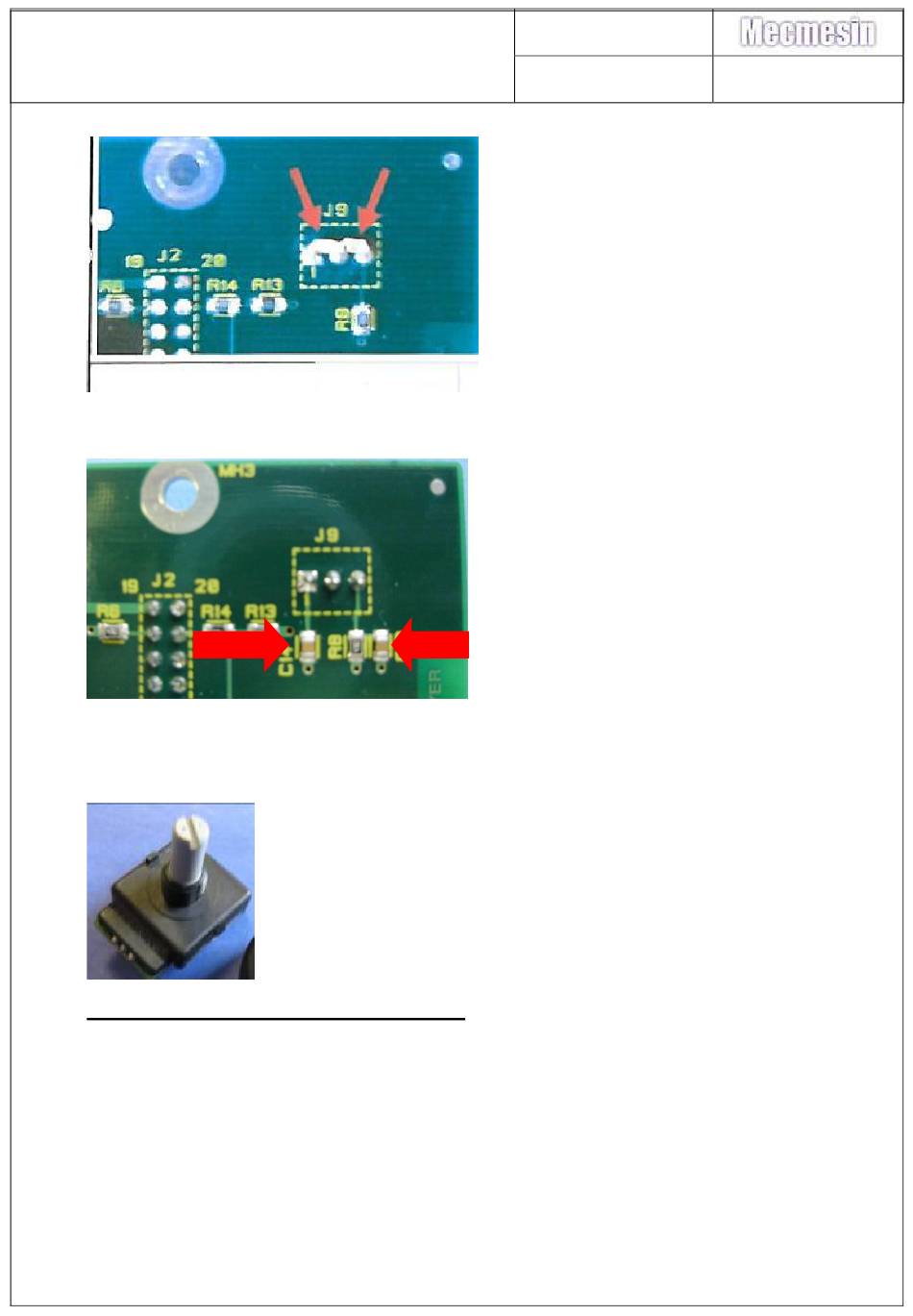

Later PCB with capacitors added
Replace front panel PCB if the two capacitors are missing.
iv.
Replace
v. 331-076 MECHANICAL ROTARY ENCODER (SPEED POT).

15) Error 09 is displayed on screen

i. The limit switches are set too close together. - i.e. both trigger. Move
limit switch actuators further apart, ensuring that the moving
crosshead will not damage the test piece.
ii. Check the limit switch assy is securely connected to the PCB.
iii. Continuity test limit switch assy IDC cable.
iv. The fault maybe caused by a faulty 307-044 OPTO SWITCH OPB625
on 300-148-V01 LIMIT SWITCH ASSY
Number 022-005
