23.

Limit Switch Assembly Replacement

NOTE:
106. Remove the base plate as per 7, Instructions 2 to 6
108. Partially remove the rear panel as per Section 10 for Parvalux or Section 12
for Dunker and lay clear of the limit switch
109. Remove knoblets from the two
adjustable limit switch collets
110. Remove the shroud as per Section 20.
General anti static precautions should be observed.
Number 022-005
Issue Number: 08

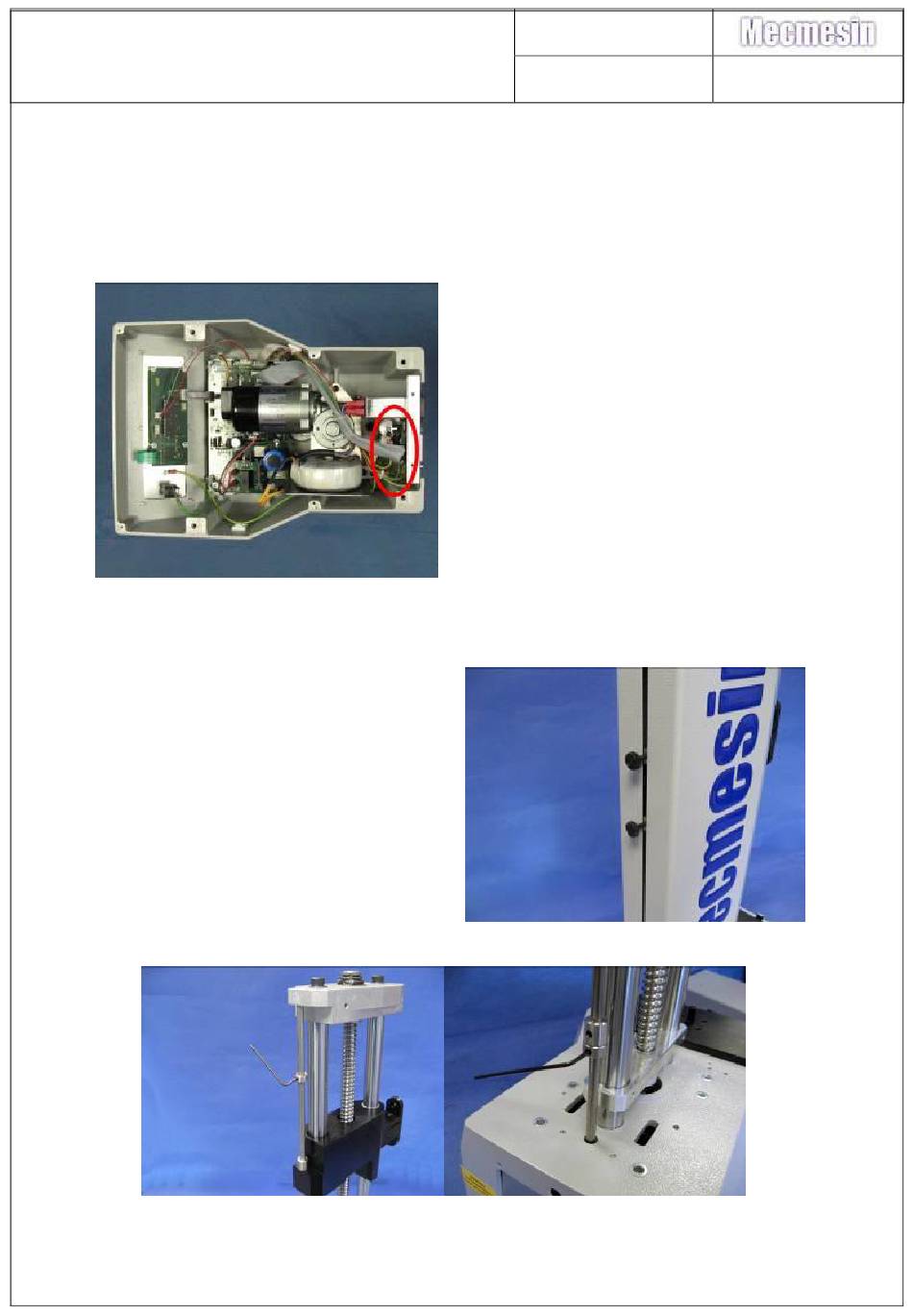

107. Locate the limit switch as identified
in the photograph
