Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
11.

Mains Filter Replacement Dunker

25. Remove the base plate as per 7, Instructions 2 to 6

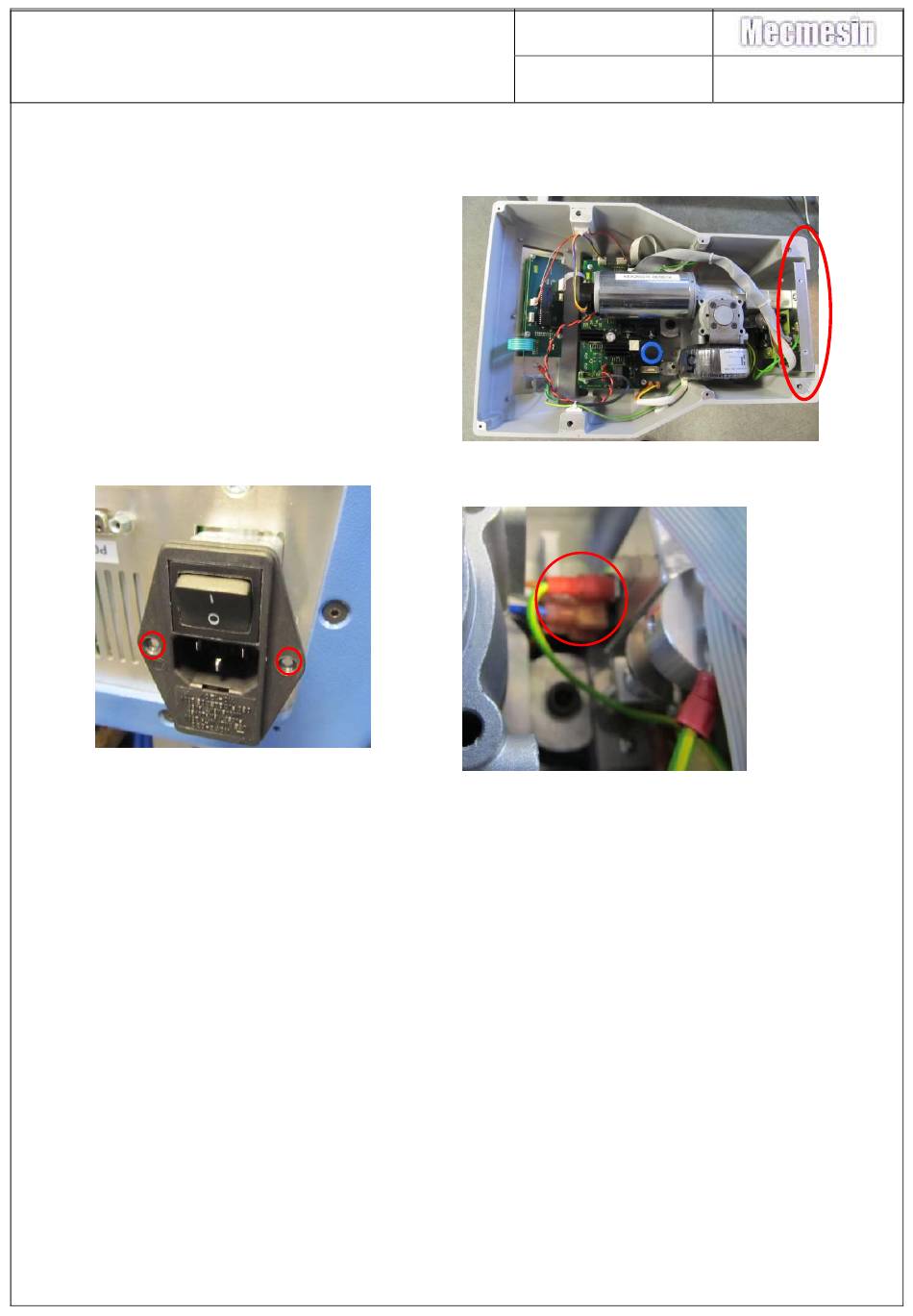

26. Locate the rear panel as identified
in the photograph
27. Remove the M3x10 countersunk screws holding the mains inlet filter and
ease it out of position
28. Note: Record the connections between the transformer and mains inlet filter.
Disconnect grey/blue/brown/mauve connectors from transformer to mains
inlet filter and the earth connection to the inlet filter.
29. The mains inlet filter can now be completely removed
Refitting of the Mains Filter
is the reverse of the above procedure
Number 022-005
Issue Number: 08 Page 13 of 58
