Emergency Stop Replacement

General anti static precautions should be observed.
NOTE:
76. Pull off loom connection.
77. Note the orientation of the switch,
and maintain this orientation on re-
assembly.
Refitting the Emergency Stop button
is the reverse of the above procedure
Number 022-005
Issue Number: 08

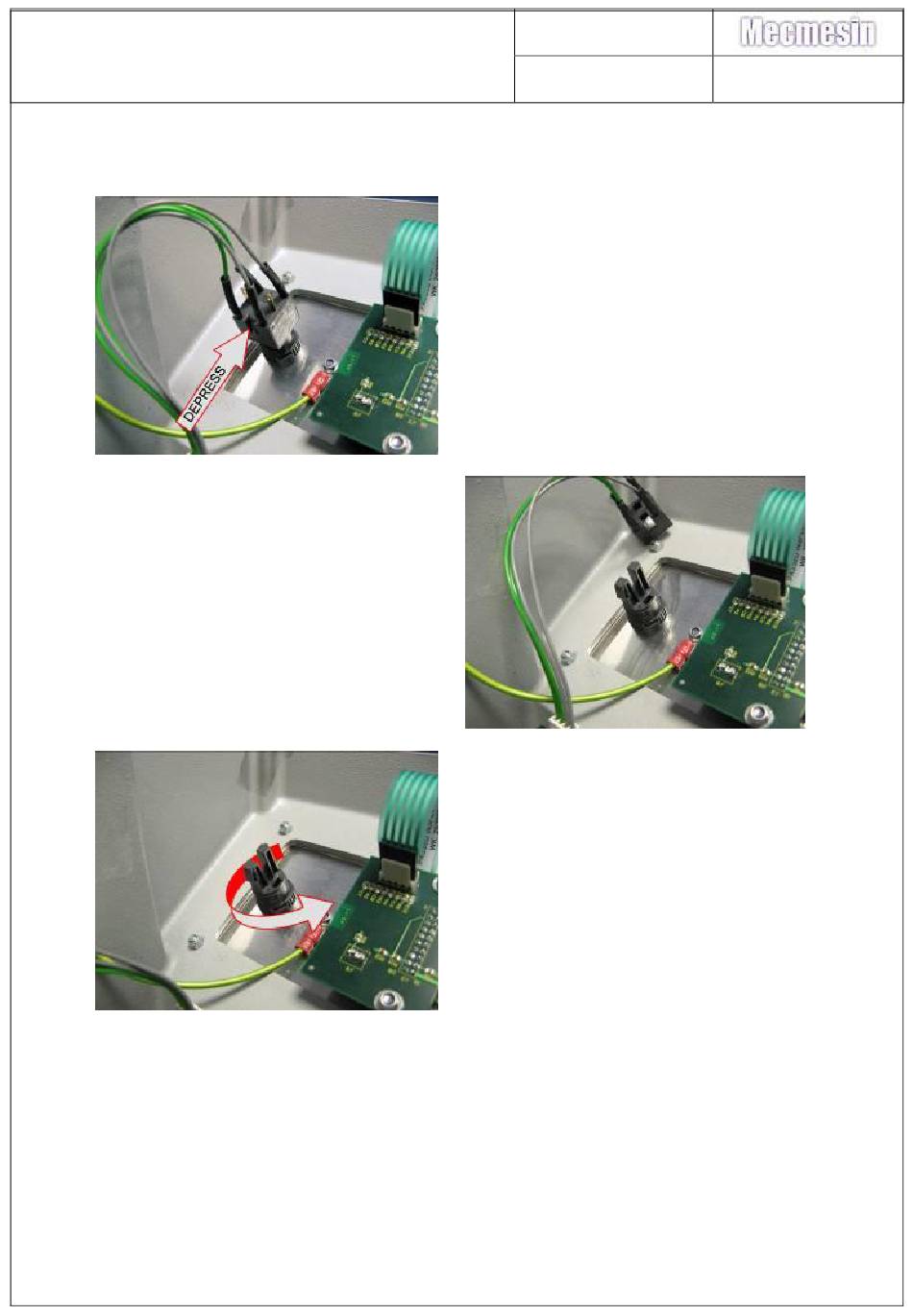

75. Depress the release lug on rear of
Emergency Stop button to release
loom connection - take care -
excessive force can break the lug.
78. Using a suitable tool unscrew the
collar retaining the Emergency
Stop button and remove
completely, enabling the
Emergency Stop to be withdrawn
through the front of the front panel.
79. Fit replacement Emergency Stop.
