12. Shroud Removal and Replacement
54.

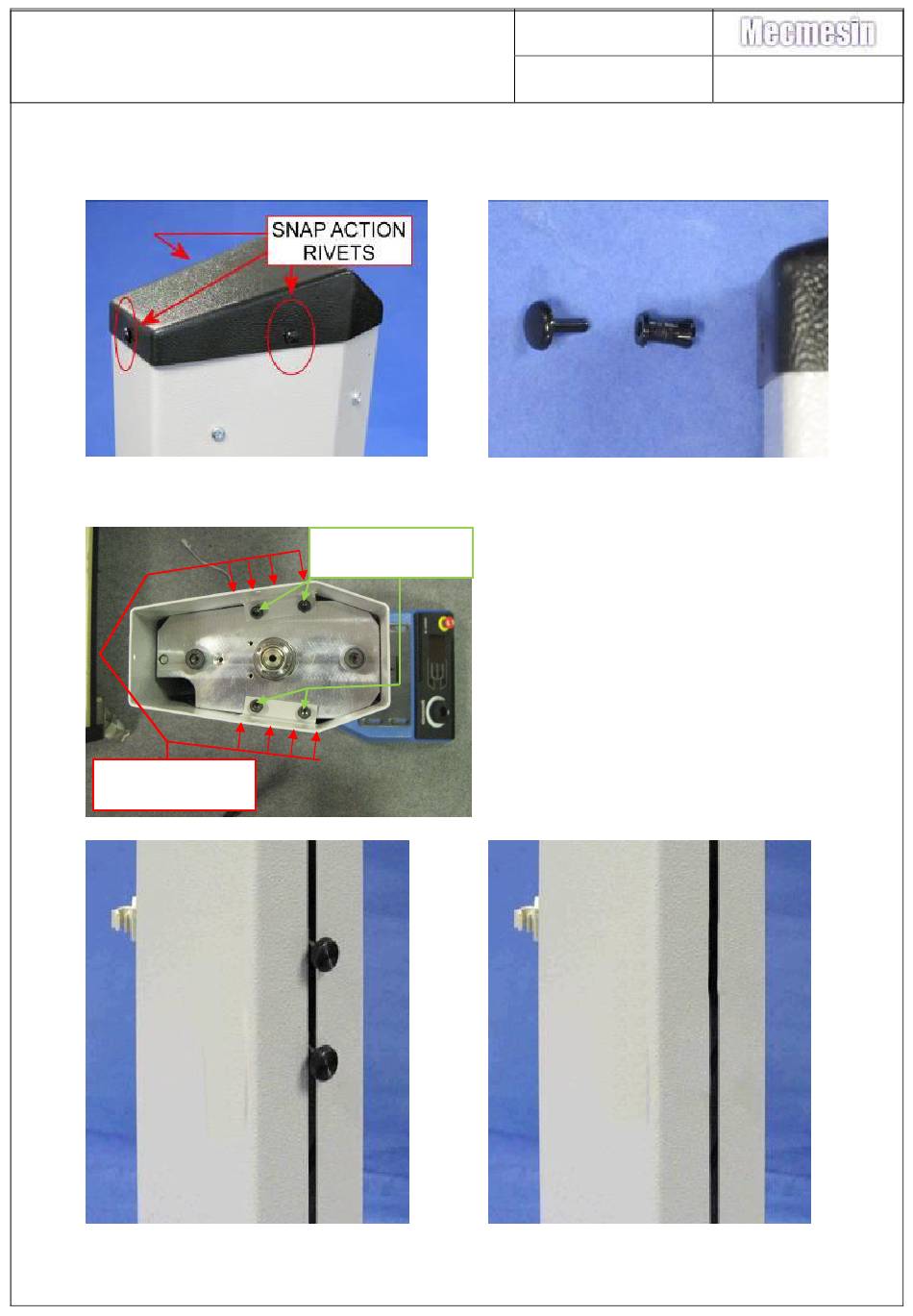

Remove the base plate as per 4, Instructions 1 to 5
55.
Remove the 3-off plastic snap action rivets retaining the top cap to the shroud
and lift off the cap.
FIXINGS TO
BASE
57.
Unscrew and remove the 2-off knoblets from the limit switch collets
FIXINGS TO TOP
CROSSHEAD
Number 022-780
Issue Number: 02
56.
Remove all the shroud retaining
screws, as shown in the
photograph.
.
