Front Panel Replacement - Mecmesin Multitest 0.5d Service And Repair Manual

Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
16.

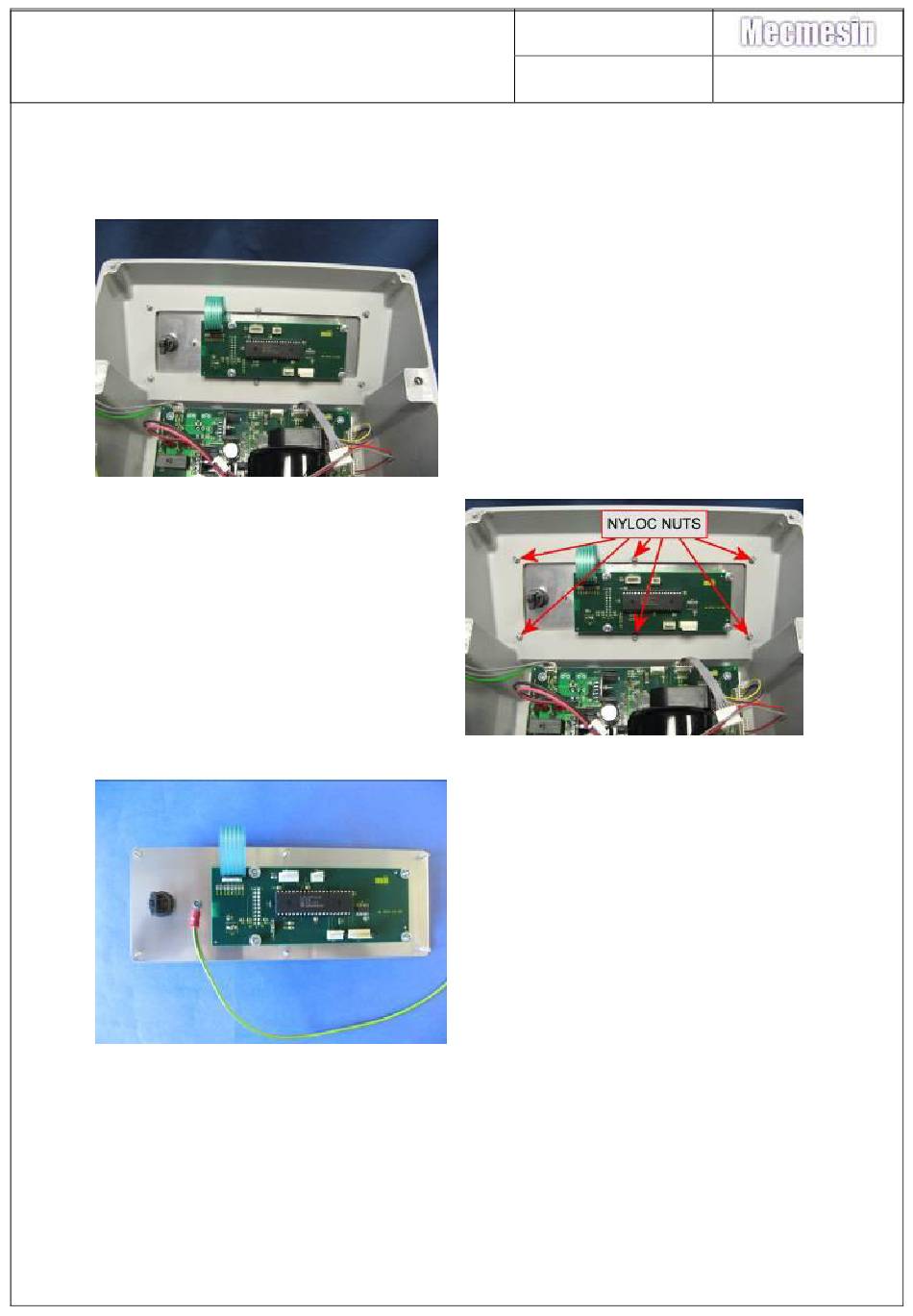

Front Panel Replacement

68. Remove the base plate as per 7, Instructions 2 to 6
71. Remove the 6-off Nyloc retaining
nuts.
.
Number 022-005
Issue Number: 08
General anti-static precautions
NOTE:
should be observed.
69. Record the wiring loom
connections to all front panel
components, and disconnect.
70. Remove earth loom from front
panel by unscrewing Nyloc nut.
72. The front panel may now be
removed from the base casing
Page 21 of 58
