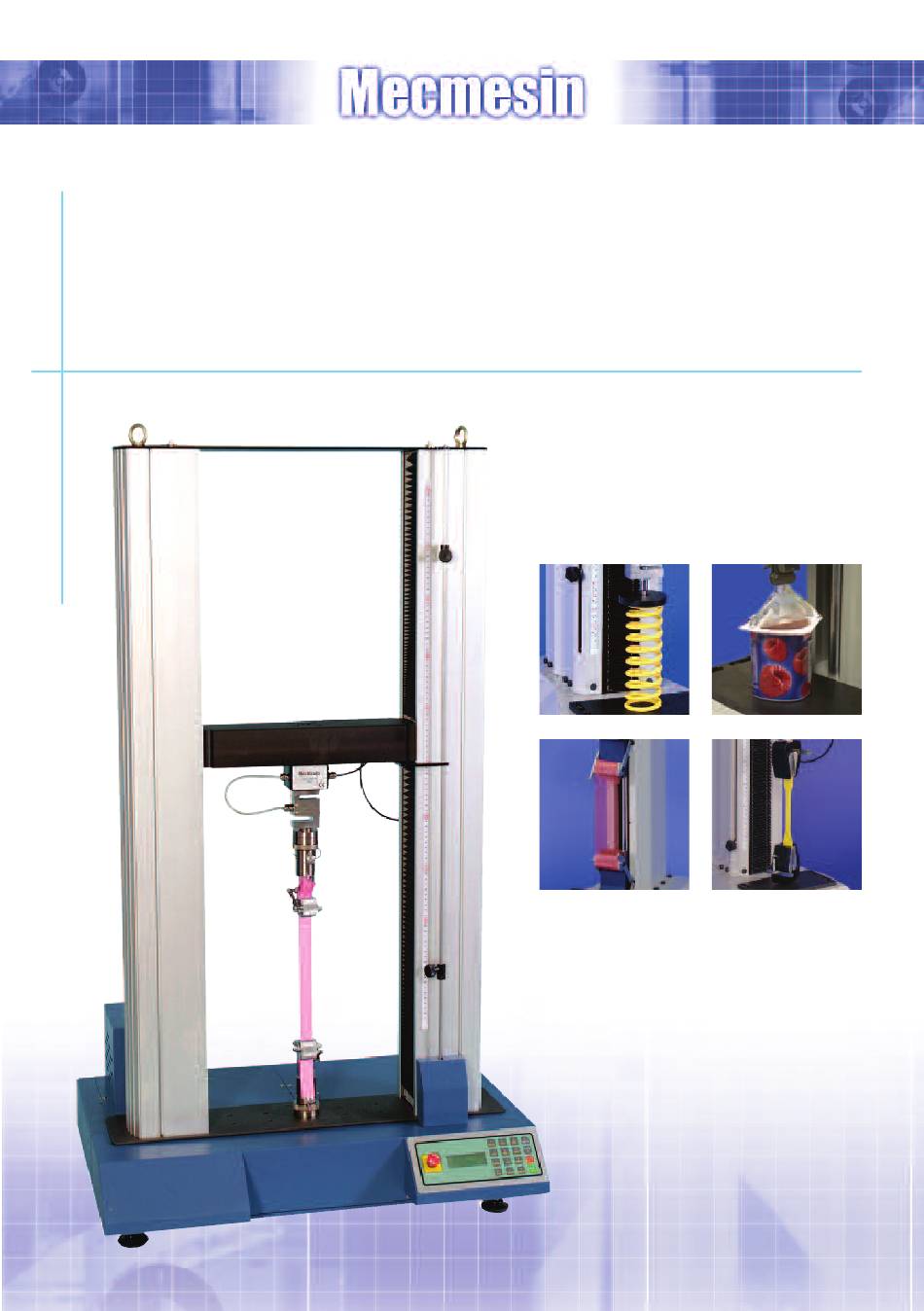

- Page 1 t e s t i n g t o p e r f e c t i o n MultiTest- Start-up Manual Version 0.4i onwards Effective August 2007 To be used in conjunction with the Reference Manual on the CD provided.
-
Page 2: Table Of Contents

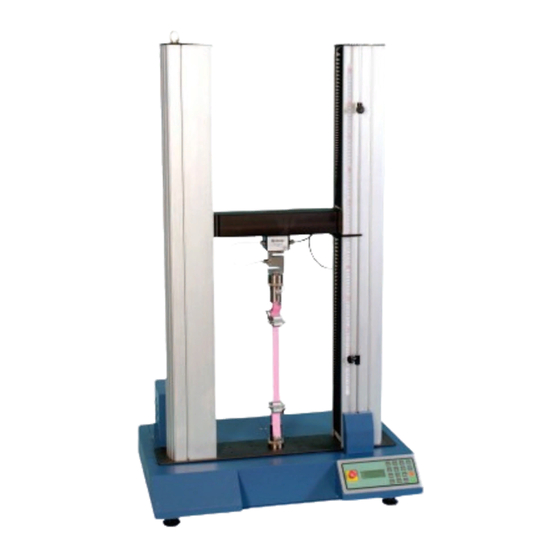

Mecmesin MultiTest-x Manual Contents Introduction ......................Hardware ......................Safe Operation of MultiTest-x Systems System Set-up and Operation Connecting up ..................Loadcell ....................Limit Stops ....................Control Panel .................... Software ........................ Booting-up the Software Commands i) Direct Command ..................ii) Menu Options .................. -
Page 3: Introduction
When using the MultiTest-x system please ensure that the ventilation holes situated on the back and bottom* of the unit are not obstructed. Also attach (hand tight only) the four rubber feet to the MultiTest-x system with the screws provided. -
Page 4: Safe Operation Of Multitest-X Systems
Within the European Union (EU), a copy of this Appendix will, if appropriate, be supplied in a language appropriate to your country by your local Mecmesin Agent. Note: Although movement of the test stand crosshead can be stopped via software,... - Page 5 It is possible to modify your MultiTest-x for operation in a country with a different supply voltage by: turning off the power, removing the fuse cartridge housing, checking that both fuses are fitted, rotating the cartridge through 180º, then reassembling and reinstalling.
-
Page 6: Loadcell
Note that the position of the port depends upon the capacity of the MultiTest-x stand. It is: near the top of the right-hand side of the column shroud for a MultiTest 2.5-x, about half way up the right-hand side of the column shroud for a MultiTest 1-x and MultiTest 5-x, and for twin-column test frames about half way up the rear face of the right-hand column. -
Page 7: Limit Stops
The range of travel of the crosshead can be physically limited by using ‘limit stops’, each MultiTest-x has both an upper limit stop and a lower limit stop. Limit stop adjusters are illustrated above: MultiTest 1-x and MultiTest 2.5-x, use type (1), MultiTest 5-x uses type (2), while MultiTest 10-x and MultiTest 25-x use type (3). -
Page 8: Software
Mecmesin MultiTest-x Manual Software Booting-up the Software When the MultiTest-x is switched on, information including the serial number of the stand, the version number of the stand and the procedures being loaded will be displayed. Eventually a screen similar to this, will be displayed. -
Page 9: Commands
Selecting an option from within a menu iv. Typing in a value i) Direct Command A direct command is one to which the MultiTest-x system will attempt to respond without delay. The direct commands are: • Pressing [Jog Up] to move the crosshead up •... -
Page 10: Iii) Selecting Option Within A Menu
Mecmesin MultiTest-x Manual Note that, as the maximum number of options which can be displayed concurrently is four, a ‘v’ in the lower right-hand corner indicates that there is at least one more menu option which can be displayed by pressing the [Jog Dn] key. The keys [1], [2], [3], [4] and [5] have, in effect, been programmed to act as ‘soft keys’. - Page 11 Mecmesin MultiTest-x Manual Most of the menu options and all option values entered can only be altered when the system is in ‘supervisor mode’. It is possible for all operators to see the settings when not on supervisor mode, however any attempt by an operator who does not have supervisor status, to: •...
-
Page 12: Support
• If your local agent is not able to answer a particular question, this question can be emailed to support@mecmesin.com. In the unlikely event of a fault developing with your MultiTest-x system, or if you need to arrange routine calibration or servicing, you should either: •... -
Page 13: Appendix 2 : A Guide To The Safe Use Of Mains Powered Test Frames
Appendix 2 : A Guide to the Safe Use of Mains Powered Test Frames Mecmesin test frames have been designed and manufactured in a controlled system to ensure compliance with all relevant European Union Directives. Visit the Mecmesin website www.mecmesin.com to download the appropriate European Union documentation. - Page 14 After the above points have been checked and confirmed to be correct, the machine may be connected to the mains outlet using only with the mains lead supplied. Ensure that access to the [Emergency Stop] button on the MultiTest-x control panel is never obstructed. Check its basic operation with reference to the operating manual.
-
Page 15: Operator Training
Operator Training Each person who is to use the machine should be fully trained in the safe use of motorised testing machines. Training can be arranged by contacting Mecmesin Limited or an Authorised Agent. The machine has the ability to generate forces large enough to cause permanent damage to human limbs, if placed between the crosshead and the base. -
Page 16: Machine Guarding
Mecmesin MultiTest-x Manual Machine Guarding If, after the assessment, it is considered that machine guarding is needed, then contact your local supplier who, through Mecmesin, can arrange the supply of a suitable guard offering the required level of protection. Continued Safe Use Once the machine is installed it should provide a reliable long-term resource for universal testing. -
Page 17: Avoiding Accidental Damage To Test Frame
DECLARATION OF CONFORMITY: Please refer to the ‘Literature & FAQs’ section of the Mecmesin website for a copy of the EC Declaration of Conformity relevant to your machine. IF IN DOUBT CONSULT YOUR LOCAL SUPPLIER TO ENSURE CONTINUED... -
Page 18: Multitest-X Specifications
Mecmesin MultiTest-x Manual MultiTest-x Specifications 1- x 2.5- x 5- x 10- x 25- x MultiTest Rated capacity 1000 2500 5000 10,000 25,000 1,000 2,500 1,100 2,200 5,500 Number of ballscrews Column spacing 15.7 15.7 Speed range mm/min 0.1 - 500 in/min 0.004 - 20... - Page 19 External software Output of test results to PC/Printer/Datalogger Yes, via RS232 serial port Communication with PLC/Digital Yes, via programmable digital ports Control Interface 4 Inputs + 6 Outputs Mecmesin reserves the right to alter equipment specifications without prior notice. E&OE...
- Page 20 Over 30 years experience in force & torque technology Formed in 1977, Mecmesin Ltd is today widely regarded as a leader in force and torque technology for quality control testing in design and production. The Mecmesin brand stands for excellent levels of performance and reliability, guaranteeing high quality results.
