Multitest 0.5d, 1d & 2.5d
Service and Repair Manual

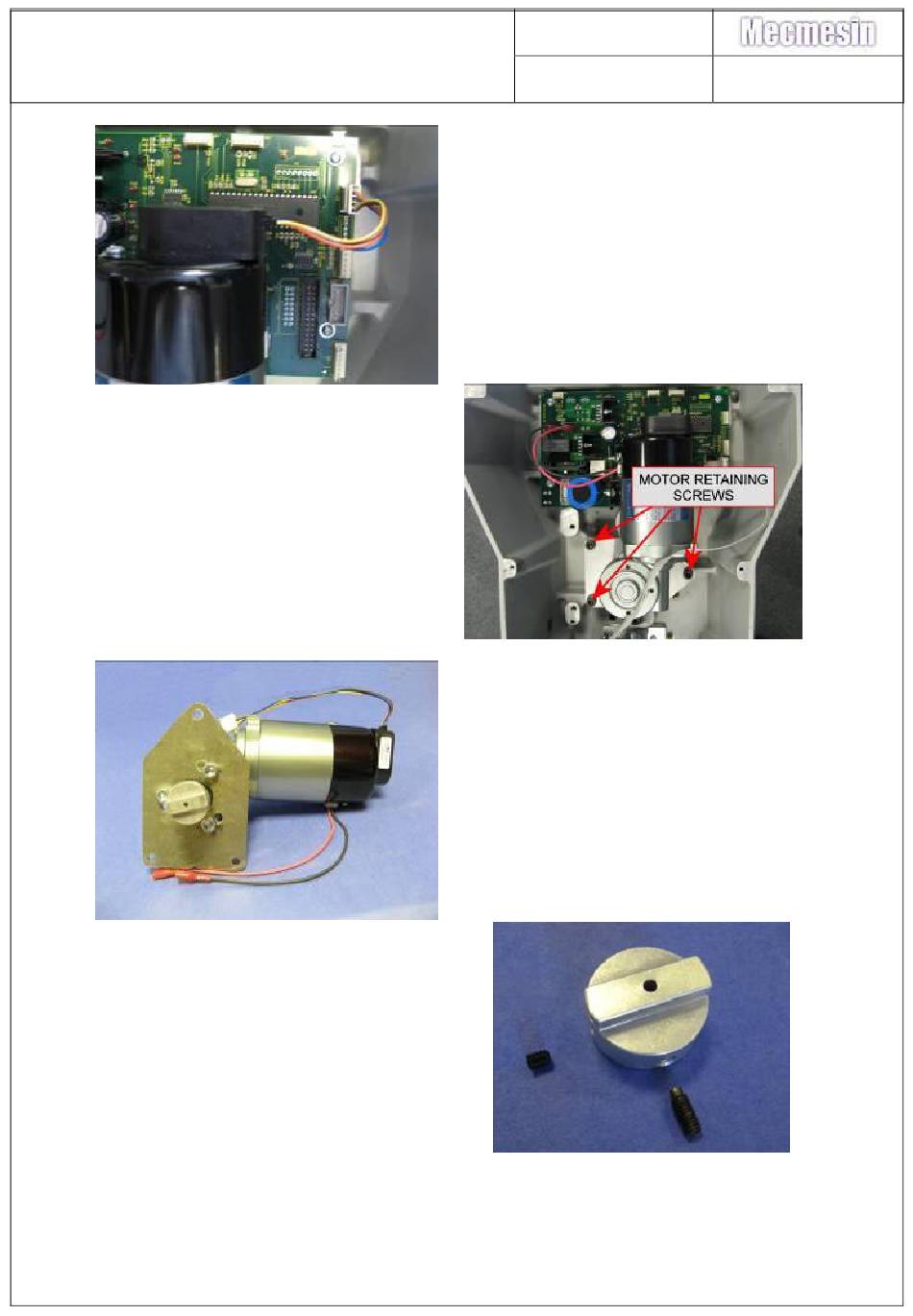

46. Remove the 3-off M6x12 socket
cap head motor retaining screws
48. Remove the drive coupling from
the motor drive shaft and fit to the
new motor ensuring that the long
dog-point grub screw locates on
the machined flat.
Use Loctite 243 to retain both grub
screws.
Refitting of the Motor
is the reverse of the above procedure
Number 022-005
Issue Number: 08
45. Disconnect the motor encoder
loom (brown/yellow/blue/orange)
from the motor's encapsulated
encoder (tachometer).
47. Lift the motor out of the base
casing.
