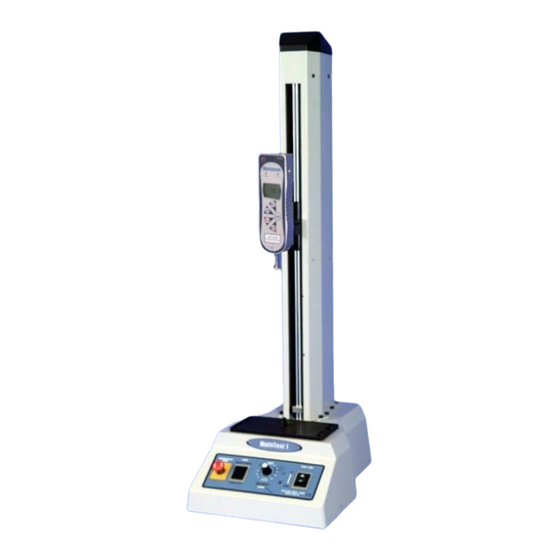

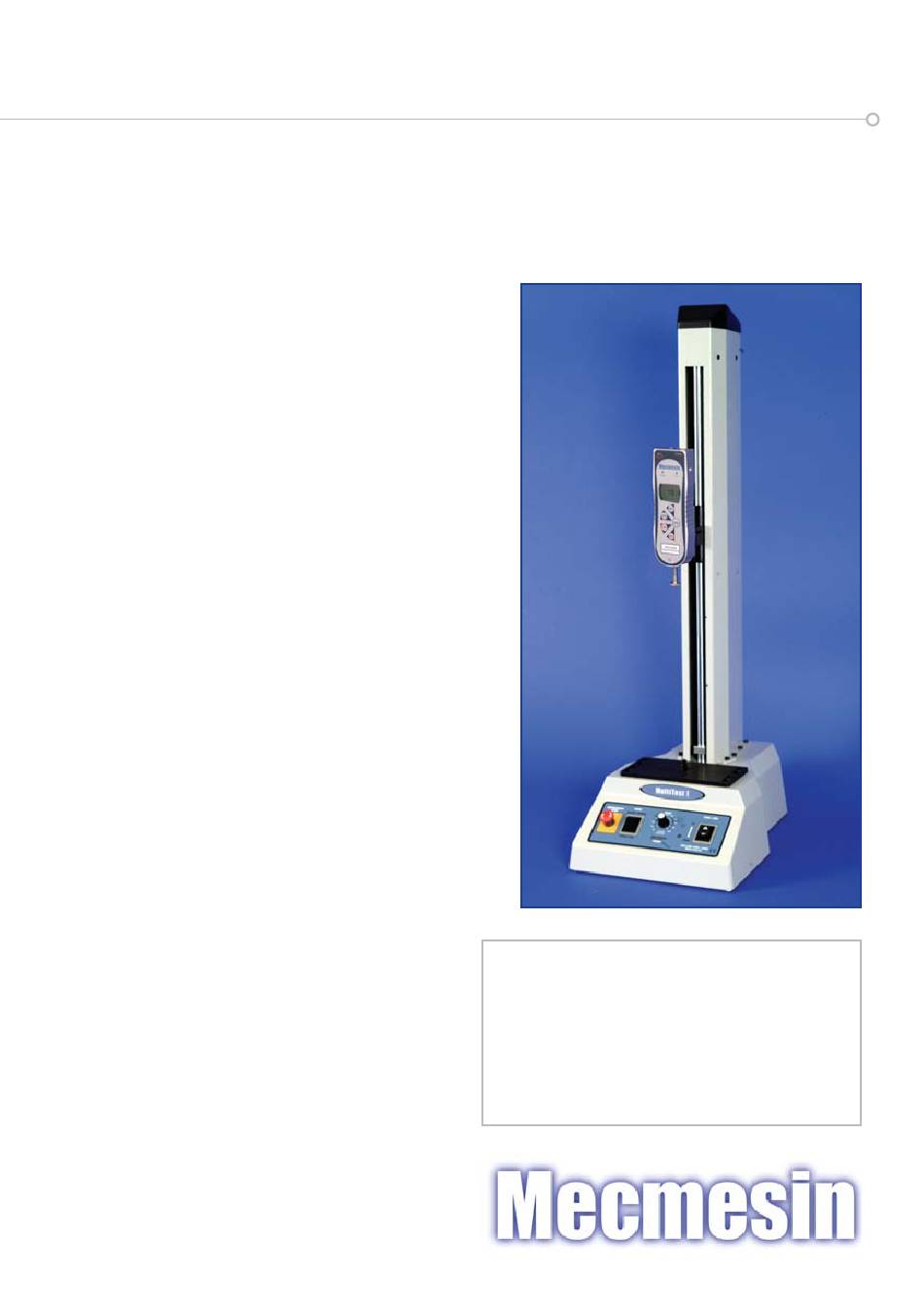

- Page 1 MultiTest 1 Motorised Test Frame Operating Instructions It is essential that you familiarise yourself with the contents of these instructions before attempting to operate the MultiTest 1.
-
Page 3: Table Of Contents
When using the MultiTest 1 please ensure that the ventilation holes situated on the back and bottom of the unit are not obstructed. Also attach the four rubber feet to the MultiTest 1 with the screws provided (Do not over-tighten screws) -
Page 4: Operating Instructions
There is only one standard model of the MultiTest 1. The dimensions, speed range and capacity have been carefully optimised to cover the test procedures and specimen sizes most often needed by quality departments within many sectors of manufacturing industry. - Page 5 ‘Manual Control’, or selecting either the ‘Up’ or’ Down’ position will stop the crosshead moving. Fig.1 B - Upper limit switch at rear C - Crosshead C - Crosshead B - Lower limit switch at rear Front control panel of MultiTest 1 page 3...
-
Page 6: Force Gauges, Loadcells & Fixturing
COMMUNICATION WITH EXTERNAL DEVICES There is an external control port at the rear of the MultiTest 1. The Display Unit Interface (b,in fig.2) enables the MultiTest 1 to Note: The external cable must not exceed 3 metres in length. -
Page 7: Multitest 1 Technical Specifications
MULTITEST 1 SPECIFICATIONS Load capacity 1000N/100kgf/220lbf Power consumption 60 watts (maximum) Weight (stand only) 20kg (44lb) CROSSHEAD MOTION Travel range 500mm (19.68in) Maximum daylight 630mm (24.80in) Maximum headroom 510mm (20.08in) Speed range 2.5 - 1000mm/min Up and down settings by toggle switch... -
Page 8: Appendices
Connecting a mains powered test frame to the wrong supply will almost certainly cause extensive damage to the equipment. The Mecmesin test frames must only ever be connected to a mains power installation that has a fully installed earthing system. - Page 9 LIFTING INSTRUCTIONS: Before attempting to lift the MultiTest 1 turn off the power switch and unplug from the mains. When lifting the MultiTest 1, support must be provided at the base, as well as at the back of the shroud, with care being taken to avoid pressing against the adjustable limit switches.
-
Page 10: Packing Instructions
PAC KIN G INS TRUCTIONS FOR MULTITES T 1 AND MULTITES T 2.5 MOTORISED TES T FRAMES WHEN RETURNING TO MECMESIN LIMITED Set the Crosshead to approximately the centre of the test frame. Remove the four rubber feet from the base. - Page 11 • Four rubber feet, four attachment screws and Allen key if necessary. If you have any feedback regarding Mecmesin, its products and services, which you would like to share with us, please contact us at f f e e e e d d b b a a c c k k @ @ m m e e c c m m e e s s i i n n . . c c o o m m...
- Page 12 RH13 0SZ England 256 South Rd. Hilton South Australia 5033 General Enquiries: +44 (0) 1403 799979 Ph (08) 8352 5511 +44 (0) 1403 799975 Service & Calibration +44 (0) 1403 799920 info@si-instruments.com +44 (0) 1403 799925 www.si-instruments.com www.mecmesin.com info@mecmesin.com DEALER STAMP...
