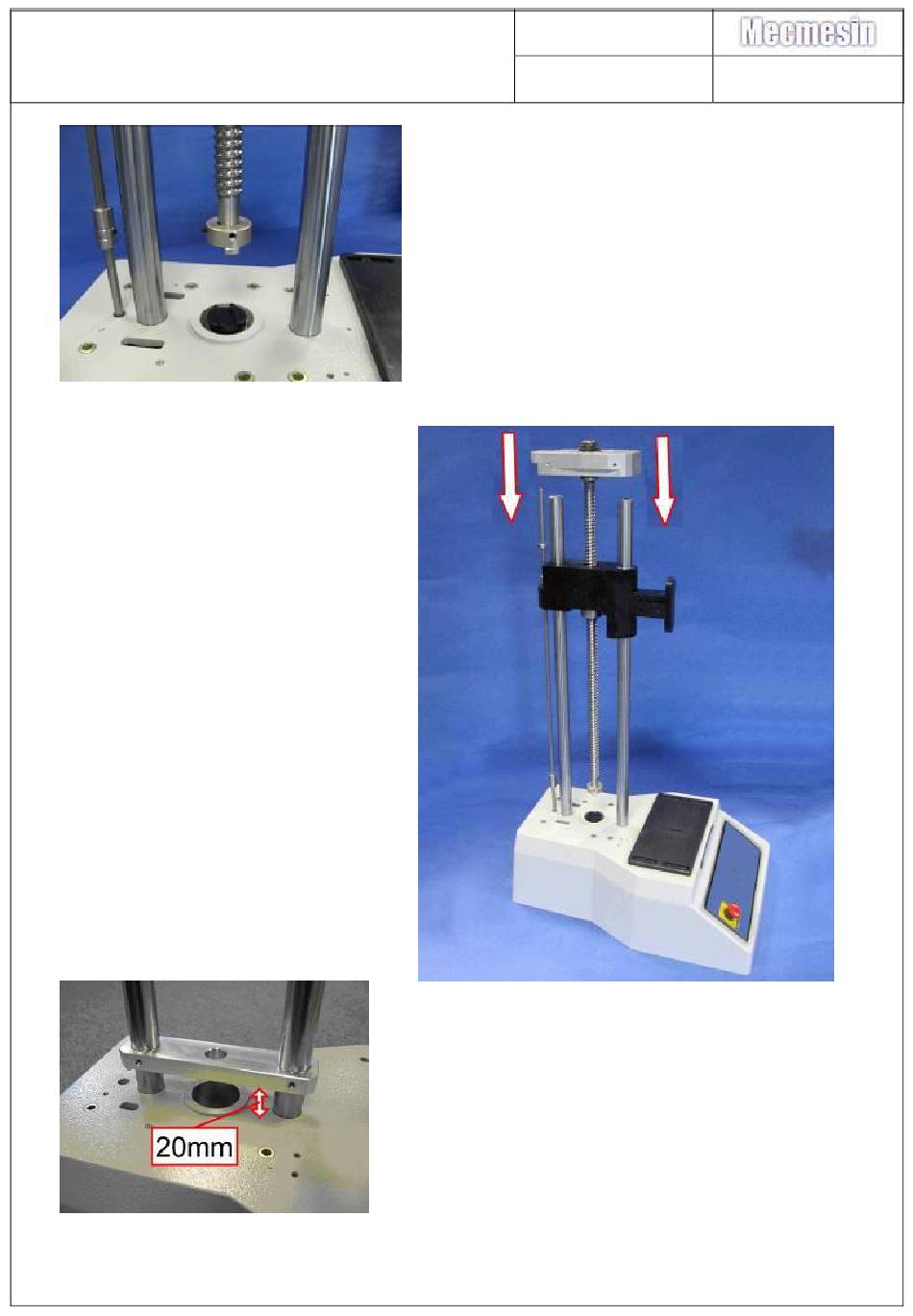

98. Lower top crosshead back into
position taking care to locate on
both columns and limit switch rod.
99. Ensure that the top half of the
coupling locates correctly into the
bottom half of the coupling
Number 022-005
Issue Number: 08
97. For Multitest 2.5-d remove coupling
Locate new coupling onto the bottom of the ball
screw, and ensuring that the long screw locates
on the machined flat lightly, tighten it.
NOTE: For Multitest 1-d the ball screw must pass
through the bottom bearing plate before the
12mm drive coupling with M4 x 10 skt grub screw
can be fitted. In this case loosen the coupling
grub screws first, then lift the ballscrew upwards
and out of the coupling.
