5.3.2. Recommended RF Connector for Antenna Installation
EM120R-GL and EM160R-GL are mounted with standard 2 mm × 2 mm receptacle RF connectors for
convenient antenna connection. The connector dimensions are illustrated below:

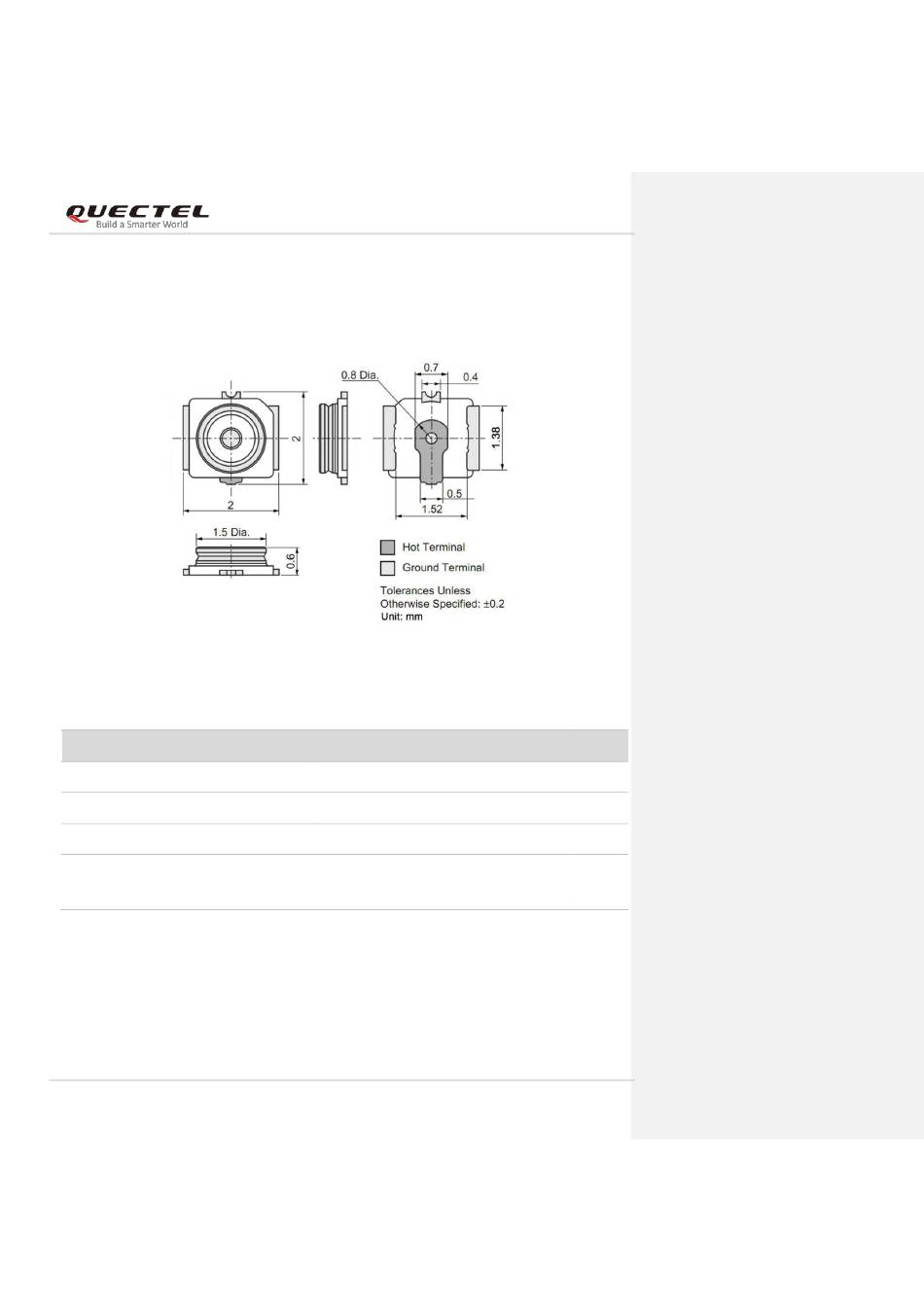

Figure 34: EM120R-GL&EM160R-GL RF Connector Dimensions (Unit: mm)
Table 33: Major Specifications of the RF Connector
Item
Nominal Frequency Range
Nominal Impedance
Temperature Rating
Voltage Standing Wave Ratio (VSWR)
The receptacle RF connector used in conjunction with EM120R-GL&EM160R-GL will accept two types of
mating plugs that will meet a maximum height of 1.2 mm using a Ø0.81 mm coaxial cable or a maximum
height of 1.4 mm utilizing a Ø1.13 mm coaxial cable.
EM120R-GL&EM160R-GL_Hardware_Design
LTE-A Module Series
EM120R-GL&EM160R-GL Hardware Design
Specification
DC to 6 GHz
50 Ω
-40 ° C to +85 ° C
Meet the requirements of:
Max. 1.3 (DC–3 GHz)
Max. 1.45 (3–6 GHz)
62 / 79
