3.1. Pin Assignment

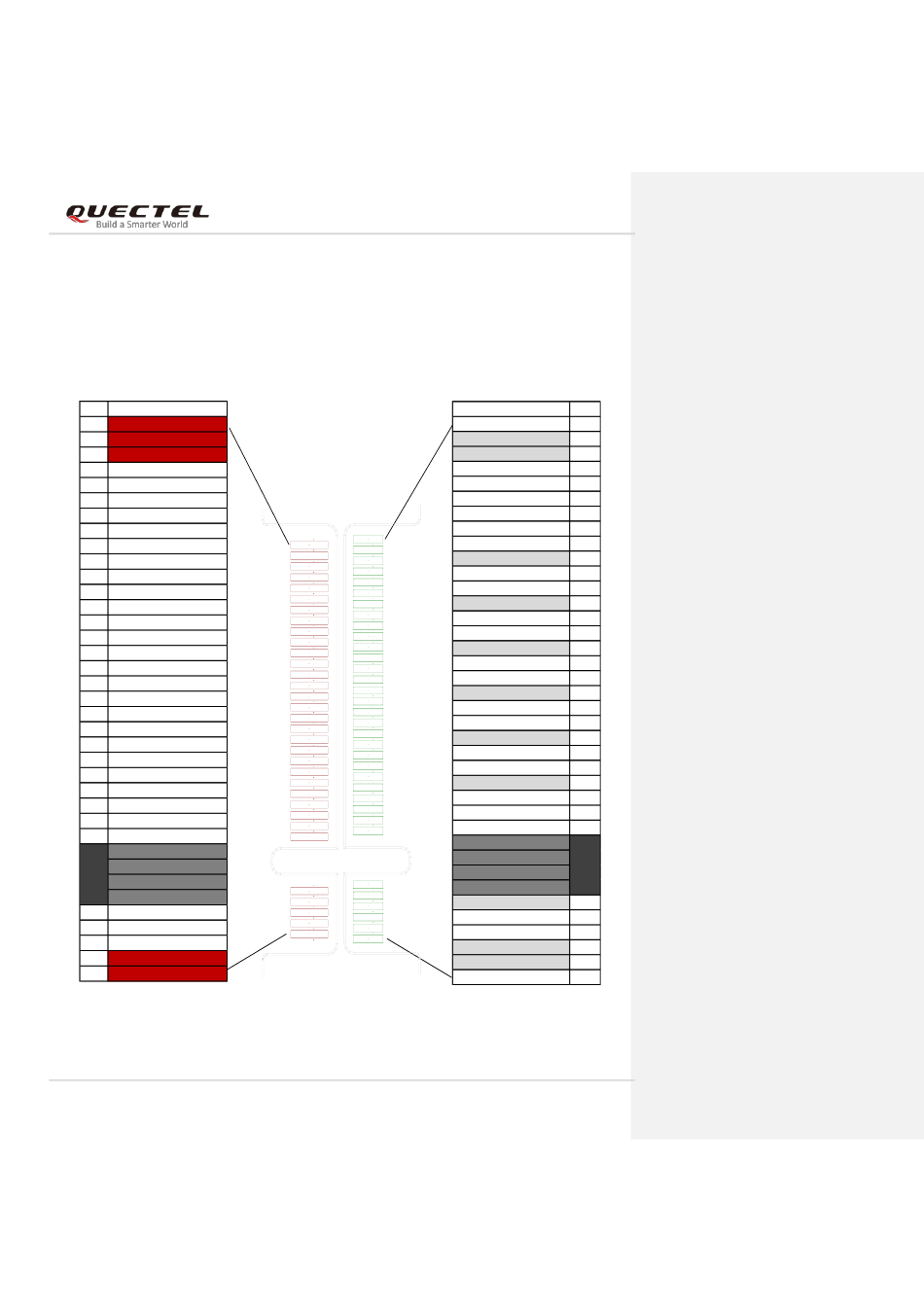

The following figure shows the pin assignment of EM120R-GL&EM160R-GL. The top side contains
EM120R-GL&EM160R-GL and antenna connectors.
No. Pin Name
74 VCC
72 VCC
70 VCC
68 ANT_CONFIG
66 USIM1_DET
64 COEX_TXD
62 COEX_RXD
60 COEX3
58 RFFE_DATA
56 RFFE_CLK
54 PCIE_WAKE_N
52 PCIE_CLKREQ_N
50 PCIE_RST_N
48 USIM2_VDD
46 USIM2_RST
44 USIM2_CLK
42 USIM2_DATA
40 USIM2_DET
38 NC
36 USIM1_VDD
34 USIM1_DATA
32 USIM1_CLK
30 USIM1_RST
28 PCM_SYNC
26 W_DISABLE2#
24 PCM_DOUT/VDDIO
22 PCM_DIN
20 PCM_CLK
Notch
Notch
Notch
Notch
10 WWAN_LED#
8 W_DISABLE1#
6
FULL_CARD_POWER_OFF#
4 VCC
2 VCC
EM120R-GL&EM160R-GL_Hardware_Design
EM120R-GL&EM160R-GL Hardware Design
PIN75
PIN74
BOT TOP
PIN11
PIN10
PIN2
PIN1
Figure 2: Pin Assignment
LTE-A Module Series
Pin Name No.
CONFIG_2 75
GND 73
GND 71
CONFIG_1 69
RESET# 67
ANTCTL3 65
ANTCTL2 63
ANTCTL1 61
ANTCTL0 59
GND 57
PCIE_REFCLK_P 55
PCIE_REFCLK_M 53
GND 51
PCIE_RX_P 49
PCIE_RX_M 47
GND 45
PCIE_TX_P 43
PCIE_TX_M 41
GND 39
USB_SS_RX_P 37
USB_SS_RX_M 35
GND 33
USB_SS_TX_P 31
USB_SS_TX_M 29
GND 27
DPR 25
WAKE_ON_WAN# 23
CONFIG_0 21
Notch
Notch
Notch
Notch
GND 11
USB_DM 9
USB_DP 7
GND 5
GND 3
CONFIG_3 1
