LTE-A Module Series
EM120R-GL&EM160R-GL Hardware Design
5
Antenna Connection
EM120R-GL and EM160R-GL provide Main, Rx-diversity/GNSS and MIMO antenna connectors
1)
which
are used to resist the fall of signals caused by high speed movement and multipath effect. The impedance
of antenna ports is 50 Ω.
EM160R-GL provides a Main, an Rx-diversity/GNSS and two MIMO antenna connectors.
EM120R-GL provides a Main and an Rx-diversity/GNSS antenna connectors.
5.1. Antenna Connectors
The antenna connectors are shown below.

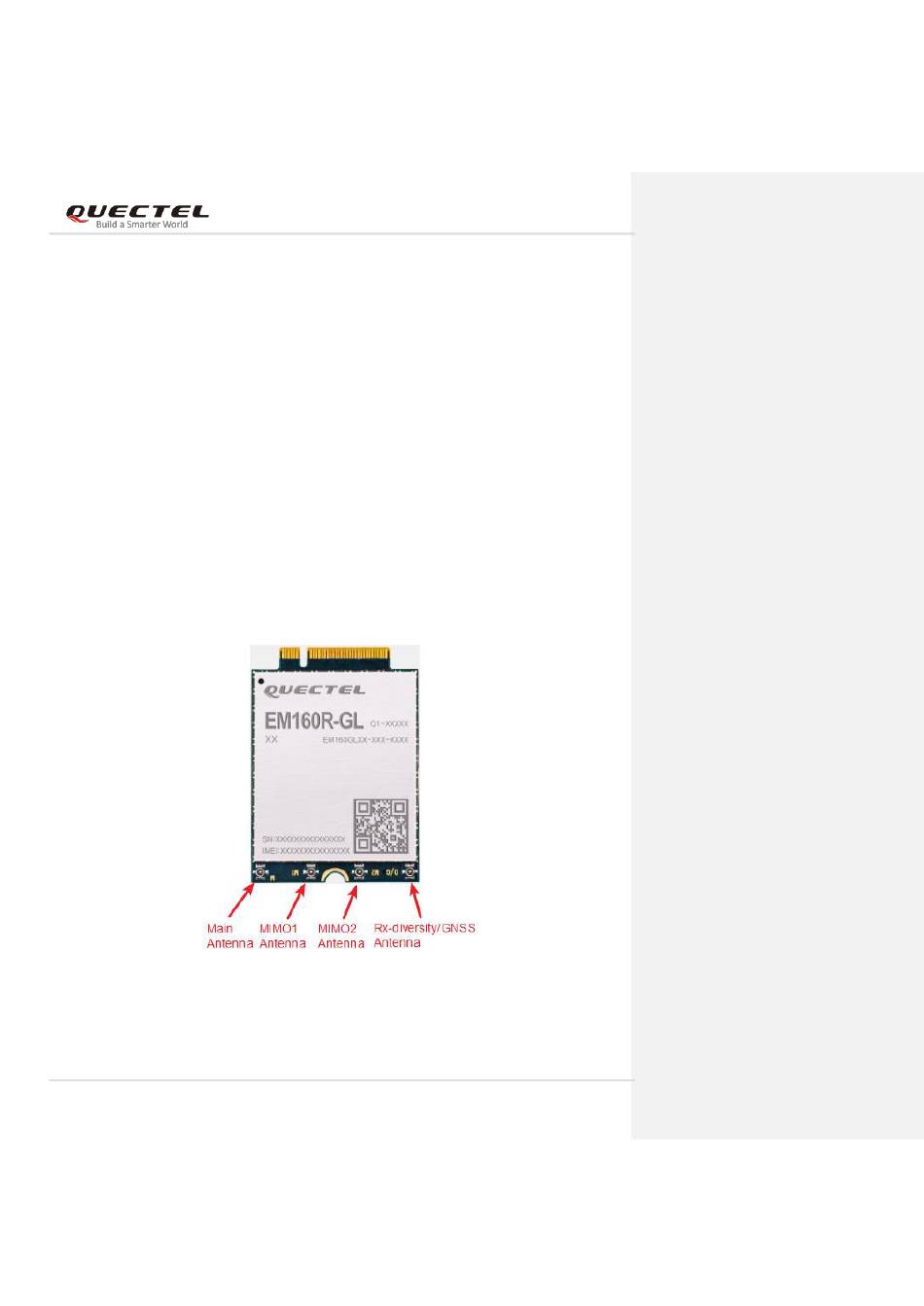

Figure 32: Antenna Connectors on the EM160R-GL Module
EM120R-GL&EM160R-GL_Hardware_Design
56 / 79
