3.4.1.2. Turn on the Module Automatically

If FULL_CARD_POWER_OFF# is pulled up to VCC with a 5–10 kΩ resistor, the module will be powered
on automatically when the power supply for VCC is applied.

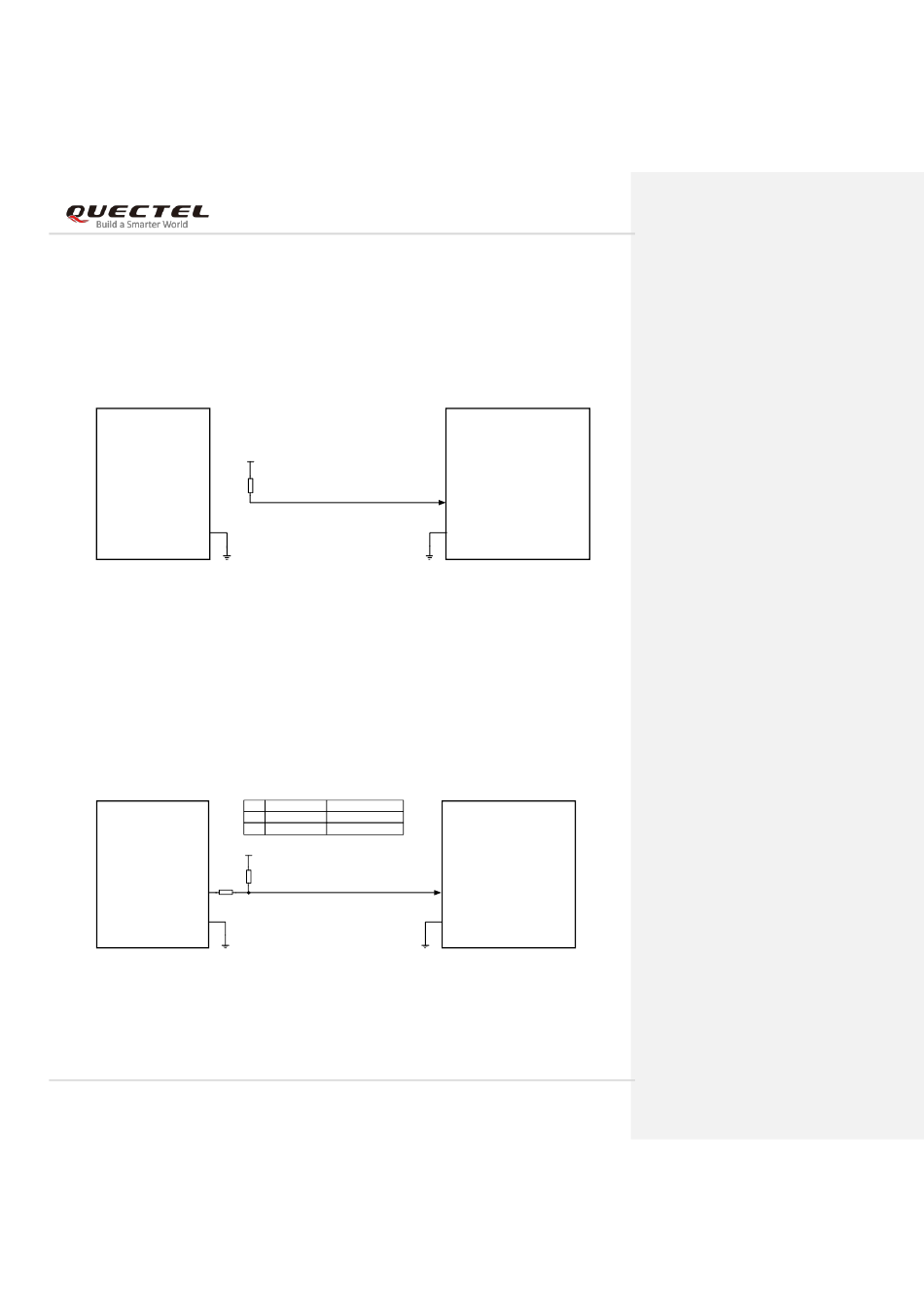

A reference circuit is shown in the following figure.
Host
VCC_IO_HOST
GPIO
GND
Notes:
1. The voltage of pin 6 should be no less than 1.19 V when it is at HIGH level.
2. The voltage level VCC_IO_HOST could be a 1.8 V or 3.3 V typically.
Figure 7: Turn on the Module Automatically

3.4.1.3. Turn on the Module with Compatible Design

The following figure shows a compatible design to turn on the module automatically after power-up or by
host.
Host
VCC_IO_HOST
GPIO
R2
NM_0Ω
GND
Notes:
1. The voltage of pin 6 should be no less than 1.19 V when it is at HIGH level.
2. The voltage level VCC_IO_HOST could be 1.8 V or 3.3 V typically.
Figure 8: Turn on the Module with Compatible Design
EM120R-GL&EM160R-GL_Hardware_Design
EM120R-GL&EM160R-GL Hardware Design
R1
10K
Auto turn on Turn on by host
R1 10 K NM
0 Ω
R2 NM
R1
10K
LTE-A Module Series
Module
6
FULL_CARD_POWER_OFF#
GND
Module
6
FULL_CARD_POWER_OFF#
GND
