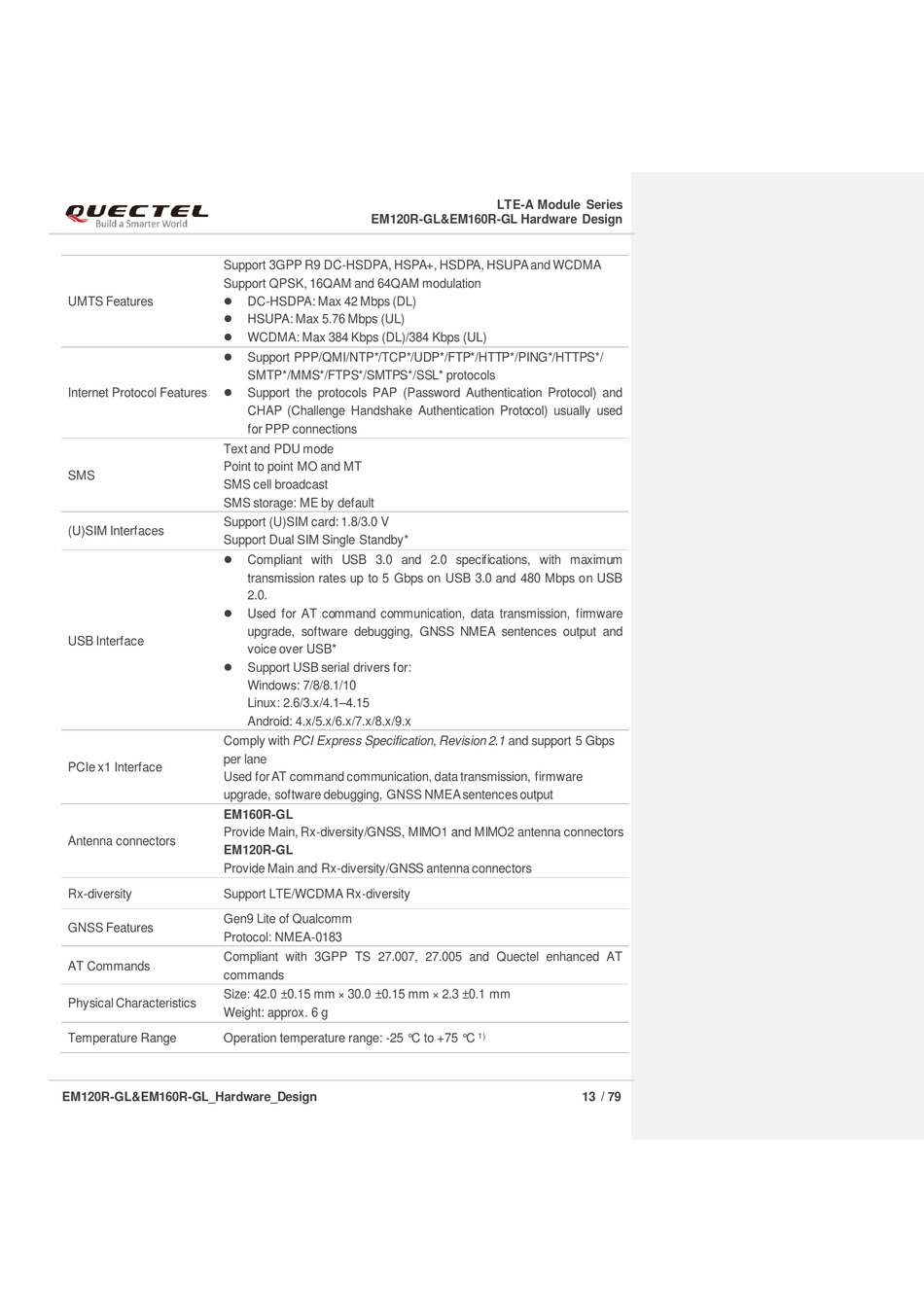

Quectel LTE-A Module Series Hardware Design page 14

Support 3GPP R9 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
Support QPSK, 16QAM and 64QAM modulation
⚫
UMTS Features
⚫
⚫
⚫
⚫
Internet Protocol Features
Text and PDU mode
Point to point MO and MT
SMS
SMS cell broadcast
SMS storage: ME by default
Support (U)SIM card: 1.8/3.0 V
(U)SIM Interfaces
Support Dual SIM Single Standby*
⚫
⚫
USB Interface
⚫
Comply with PCI Express Specification, Revision 2.1 and support 5 Gbps
per lane
PCIe x1 Interface
Used for AT command communication, data transmission, firmware
upgrade, software debugging, GNSS NMEA sentences output
EM160R-GL
Provide Main, Rx-diversity/GNSS, MIMO1 and MIMO2 antenna connectors
Antenna connectors
EM120R-GL
Provide Main and Rx-diversity/GNSS antenna connectors
Rx-diversity Support LTE/WCDMA Rx-diversity
Gen9 Lite of Qualcomm
GNSS Features
Protocol: NMEA-0183
Compliant with 3GPP TS 27.007, 27.005 and Quectel enhanced AT
AT Commands
commands
Size: 42.0 ± 0.15 mm × 30.0 ± 0.15 mm × 2.3 ± 0.1 mm
Physical Characteristics
Weight: approx. 6 g
Temperature Range Operation temperature range: -25 ° C to +75 ° C
EM120R-GL&EM160R-GL_Hardware_Design
EM120R-GL&EM160R-GL Hardware Design
DC-HSDPA: Max 42 Mbps (DL)
HSUPA: Max 5.76 Mbps (UL)
WCDMA: Max 384 Kbps (DL)/384 Kbps (UL)
Support PPP/QMI/NTP*/TCP*/UDP*/FTP*/HTTP*/PING*/HTTPS*/
SMTP*/MMS*/FTPS*/SMTPS*/SSL* protocols
Support the protocols PAP (Password Authentication Protocol) and
CHAP (Challenge Handshake Authentication Protocol) usually used
for PPP connections
Compliant with USB 3.0 and 2.0 specifications, with maximum
transmission rates up to 5 Gbps on USB 3.0 and 480 Mbps on USB
2.0.
Used for AT command communication, data transmission, firmware
upgrade, software debugging, GNSS NMEA sentences output and
voice over USB*
Support USB serial drivers for:
Windows: 7/8/8.1/10
Linux: 2.6/3.x/4.1–4.15
Android: 4.x/5.x/6.x/7.x/8.x/9.x
LTE-A Module Series
1)
13 / 79
