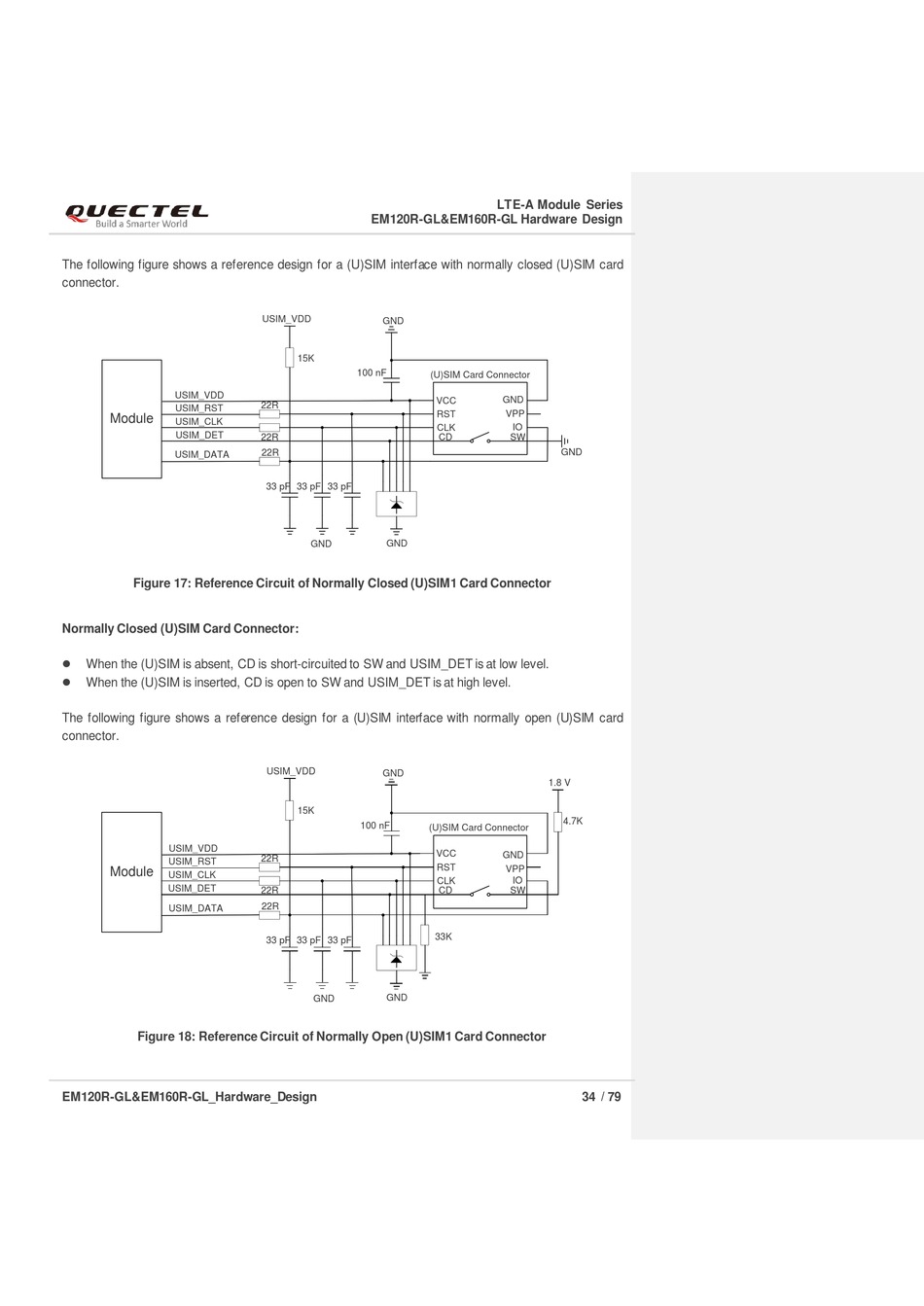

The following figure shows a reference design for a (U)SIM interface with normally closed (U)SIM card
connector.
USIM_VDD
USIM_RST
Module
USIM_CLK
USIM_DET
USIM_DATA
Figure 17: Reference Circuit of Normally Closed (U)SIM1 Card Connector
Normally Closed (U)SIM Card Connector:
⚫
When the (U)SIM is absent, CD is short-circuited to SW and USIM_DET is at low level.
⚫
When the (U)SIM is inserted, CD is open to SW and USIM_DET is at high level.
The following figure shows a reference design for a (U)SIM interface with normally open (U)SIM card
connector.
USIM_VDD
USIM_RST
Module
USIM_CLK
USIM_DET
USIM_DATA
Figure 18: Reference Circuit of Normally Open (U)SIM1 Card Connector
