Mechanical Dimensions and
Packaging
This
chapter
mainly
describes
EM120R-GL&EM160R-GL. All dimensions are measured in mm, and the dimensional tolerances are
± 0.05 mm unless otherwise specified.
7.1. Mechanical Dimensions of the Module

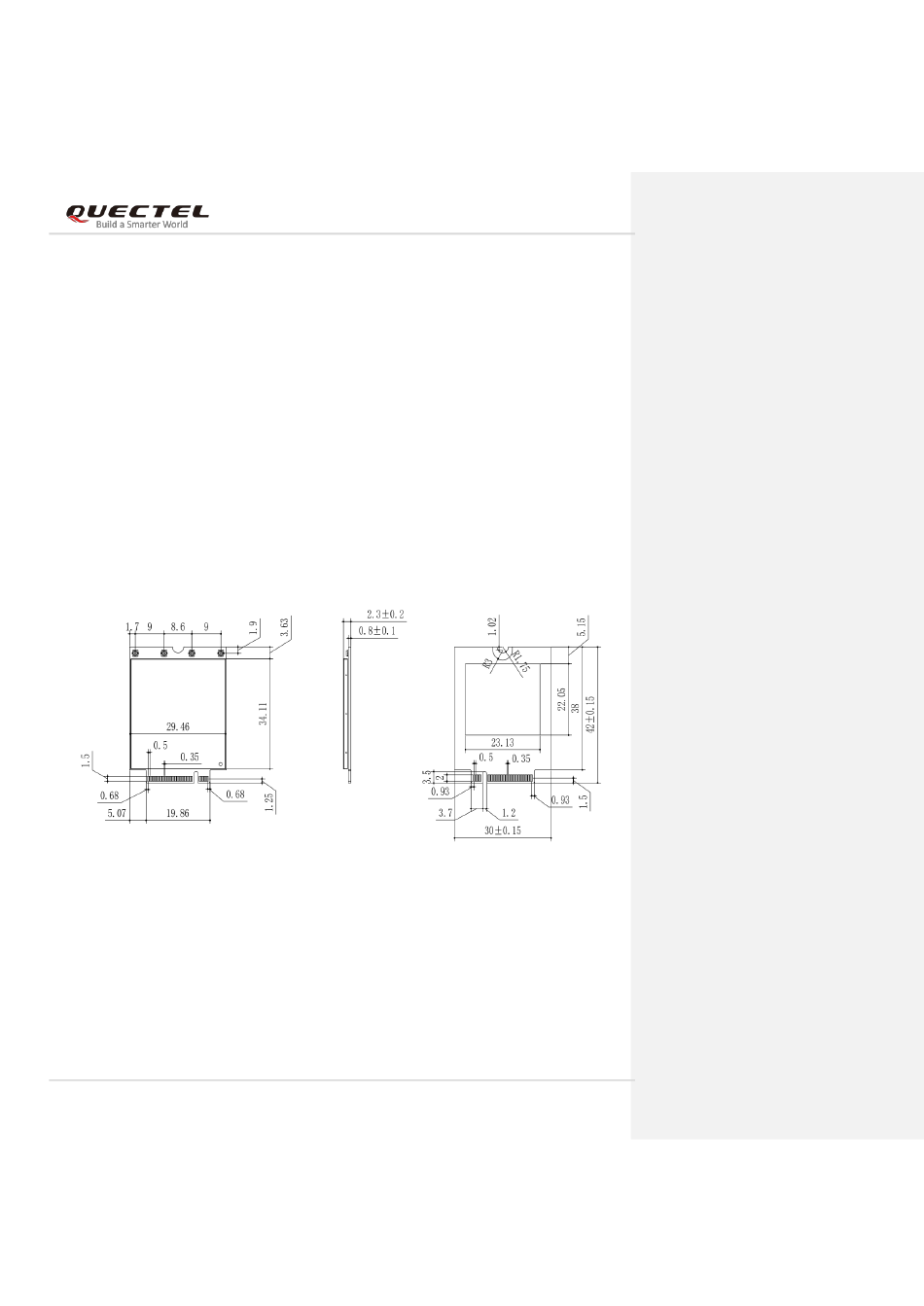

Figure 39: Mechanical Dimensions of EM120R-GL&EM160R-GL (Unit: mm)
EM120R-GL&EM160R-GL_Hardware_Design
EM120R-GL&EM160R-GL Hardware Design
mechanical
dimensions
and
LTE-A Module Series
packaging
specifications
of
71 / 79
