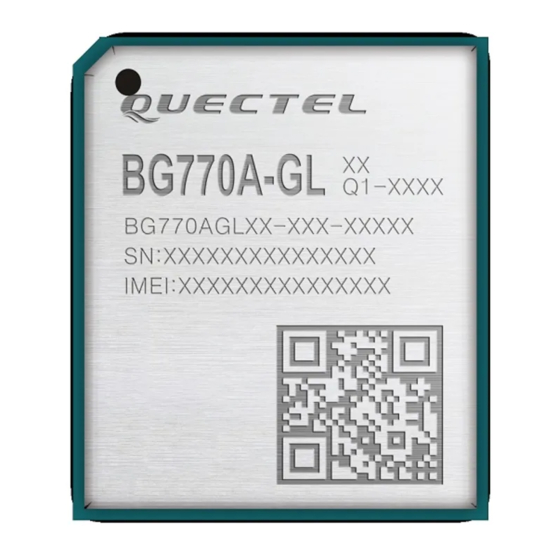

BG770A-GL
Hardware Design
LPWA Module Series
Version: 1.0.0
Date: 2021-01-28
Status: Preliminary
www.quectel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPWA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quectel LPWA Series

Summary of Contents for Quectel LPWA Series

  • Page 1 BG770A-GL Hardware Design LPWA Module Series Version: 1.0.0 Date: 2021-01-28 Status: Preliminary www.quectel.com...
  • Page 2 To the maximum extent permitted by law, Quectel excludes all liability for any loss or damage suffered in connection with the use of the functions and features under development, regardless of whether such loss or damage may have been foreseeable.
  • Page 3 BG770A-GL Hardware Design Copyright The information contained here is proprietary technical information of Quectel. Transmitting, reproducing, disseminating and editing this document as well as using the content without permission are forbidden. Offenders will be held liable for payment of damages. All rights are reserved in the event of a patent grant or registration of a utility model or design.

  • Page 4: Safety Information

    Manufacturers of the cellular terminal should notify users and operating personnel of the following safety information by incorporating these guidelines into all manuals of the product. Otherwise, Quectel assumes no liability for customers’ failure to comply with these precautions.

  • Page 5: About The Document

    LPWA Module Series BG770A-GL Hardware Design About the Document Revision History Version Date Author Description Besson RONG/ 2021-01-28 Creation of the document Ben JIANG Besson RONG/ 1.0.0 2021-01-28 Preliminary Ben JIANG BG770A-GL_Hardware_Design 4 / 75...

  • Page 6: Table Of Contents

    LPWA Module Series BG770A-GL Hardware Design Contents Safety Information ............................3 About the Document ........................... 4 Contents ............................... 5 Table Index ..............................7 Figure Index ..............................9 Introduction ............................10 1.1. Special Mark ..........................13 Product Concept ..........................14 2.1. General Description ........................
  • Page 7 LPWA Module Series BG770A-GL Hardware Design 3.16. ADC Interfaces* ........................47 3.17. GPIO Interfaces* ........................48 3.18. GRFC Interfaces* ........................49 GNSS Receiver*..........................50 4.1. General Description ........................50 4.2. GNSS Performance ........................50 4.3. Layout Guidelines ........................51 Antenna Interfaces ..........................52 5.1.
  • Page 8 LPWA Module Series BG770A-GL Hardware Design Table Index Table 1: Special Mark..........................13 Table 2: Frequency Bands and GNSS Types of BG770A-GL Module ............14 Table 3: Key Features of BG770A-GL ....................... 15 Table 4: Definition of I/O Parameters ......................21 Table 5: Pin Description ..........................
  • Page 9 LPWA Module Series BG770A-GL Hardware Design Table 42: Recommended Thermal Profile Parameters ................74 Table 43: BG770A-GL Packaging Specifications ..................75 Table 44: Related Documents ........................76 Table 45: Terms and Abbreviations ......................76 BG770A-GL_Hardware_Design 8 / 75...
  • Page 10 LPWA Module Series BG770A-GL Hardware Design Figure Index Figure 1: Functional Diagram ........................17 Figure 2: Pin Assignment (Top View) ......................20 Figure 3: Sleep Mode Application via UART ..................... 30 Figure 4: Star Structure of the Power Supply .................... 31 Figure 5: Turn on the Module by Using Driving Circuit ................

  • Page 11: Introduction

    The document, coupled with application notes and user guides, makes it easy to design and to set up mobile applications with BG770A-GL. Hereby, [Quectel Wireless Solutions Co., Ltd.] declares that the radio equipment type [BG770A-GL] is in compliance with Directive 2014/53/EU.
  • Page 12 LPWA Module Series BG770A-GL Hardware Design must not exceed: Operating Band LTE BAND 2 7.300 7.30 LTE BAND 4 4.300 4.30 LTE BAND 5 8.841 5.40 LTE BAND 12 8.098 4.91 LTE BAND 13 8.514 5.23 LTE BAND 25 7.300 7.30 LTE BAND 26(814-824) 8.841...
  • Page 13 LPWA Module Series BG770A-GL Hardware Design The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form.

  • Page 14: Special Mark

    LPWA Module Series BG770A-GL Hardware Design doit porter une étiquette indiquant le numéro de certification d'Innovation, Sciences et Développement économique Canada pour le module, précédé du mot «Contient» ou d'un libellé semblable exprimant la même signification, comme suit: "Contient IC: 10224A-2021BG770A " ou "où: 10224A-2021BG770A est le numéro de certification du module".

  • Page 15: Product Concept

    LPWA Module Series BG770A-GL Hardware Design Product Concept 2.1. General Description BG770A-GL is an embedded IoT (LTE Cat M1, LTE Cat NB1/Cat NB2*) wireless communication module. It provides data connectivity on LTE-FDD network, and supports half-duplex operation in LTE network. It also provides optional GNSS* and voice* functionality to meet customers’...

  • Page 16: Key Features

    LPWA Module Series BG770A-GL Hardware Design With a compact profile of 14.9 mm × 12.9 mm × 1.9 mm, BG770A-GL can meet almost all requirements for M2M applications such as smart metering, tracking system, security, wireless POS, etc. It is especially suitable for size and weight sensitive applications such as smart watch and other wearable devices.
  • Page 17 GPS, GLONASS  3GPP TS 27.007 and 3GPP TS 27.005 AT commands AT Commands  Quectel enhanced AT commands Network Indication One NET_STATUS pin for network connectivity status indication Antenna Interfaces Main antenna (ANT_MAIN) and GNSS antenna (ANT_GNSS) interfaces ...

  • Page 18: Functional Diagram

    LPWA Module Series BG770A-GL Hardware Design 2.3. Functional Diagram The following figure shows a block diagram of BG770A-GL and illustrates the major functional parts.  Power management  Baseband  Radio frequency  Peripheral interfaces Figure 1: Functional Diagram NOTE PCM and I2C interfaces are for VoLTE* only.

  • Page 19: Evaluation Board

    BG770A-GL Hardware Design 2.4. Evaluation Board To facilitate application development with BG770A-GL conveniently, Quectel supplies the evaluation board (EVB), USB to RS-232 converter cables, USB data cables, earphone, antennas and other peripherals to control or test the module. For more details, see document [2].

  • Page 20: Application Interfaces

    LPWA Module Series BG770A-GL Hardware Design Application Interfaces BG770A-GL is equipped with 94 LGA pads that can be connected to customers’ cellular application platforms. The subsequent chapters will provide detailed description of interfaces listed below:  Power supply  PON_TRIG interface* ...

  • Page 21: Pin Assignment

    LPWA Module Series BG770A-GL Hardware Design 3.1. Pin Assignment The following figure shows the pin assignment of BG770A-GL. RESERVED ANT_MAIN ANT_GNSS GPIO1 GPIO4 PON_TRIG PCM_DIN GPIO6 RESERVED PCM_DOUT DBG_CTS PCM_CLK GRFC2 AUX_CTS PCM_SYNC GRFC1 RESERVED RESERVED AUX_RTS AUX_TXD RESERVED RESERVED AUX_RXD RESERVED DBG_TXD...

  • Page 22: Pin Description

    LPWA Module Series BG770A-GL Hardware Design NOTES ADC input voltage must not exceed 1.8 V. The input voltage range of USB_VBUS is 1.19–2.0 V. Keep all RESERVED pins and unused pins unconnected. GND pins should be connected to ground in the design. PCM and I2C interfaces are for VoLTE* only.
  • Page 23 LPWA Module Series BG770A-GL Hardware Design Table 5: Pin Description Power Supply Pin Name Pin No. Description Comment Characteristics Power supply for Vmax = 4.35 V VBAT_BB the module’s Vmin = 2.2 V Refer to NOTE 1 baseband part Vnom = 3.3 V Power supply for Vmax = 4.2 V VBAT_RF...
  • Page 24 LPWA Module Series BG770A-GL Hardware Design Compliant with USB USB differential USB_DP 2.0 standard data (+) specification. Require USB differential differential impedance USB_DM data (-) of 90 Ω. Power supply for USBPHY_3P3 Vnom = 3.3 V USB PHY circuit External LDO USBPHY_3P3 DO/PU enable control for...
  • Page 25 LPWA Module Series BG770A-GL Hardware Design Debug UART Interface Pin Name Pin No. Description Comment Characteristics Debug UART DBG_RXD DI/PU 1.8 V receive Debug UART DBG_TXD DO/PU 1.8 V transmit If this pin is unused, keep it open. Debug UART clear DBG_CTS DO/PU 1.8 V...
  • Page 26 LPWA Module Series BG770A-GL Hardware Design External pull-up resistor is required. I2C serial data (for I2C_SDA 1.8 V only. external codec) If this pin is unused, keep it open. Antenna Interfaces Pin Name Pin No. Description Comment Characteristics Main antenna ANT_MAIN 50 Ω...
  • Page 27 LPWA Module Series BG770A-GL Hardware Design Other Interface Pins Pin Name Pin No. Description Comment Characteristics Pulled up by default. When it is at low voltage level, the Airplane mode W_DISABLE#* DI/PU 1.8 V module can enter control airplane mode. If this pin is unused, keep it open.

  • Page 28: Operating Modes

    LPWA Module Series BG770A-GL Hardware Design 3.3. Operating Modes The table below briefly summarizes the various operating modes of BG770A-GL. Table 6: Overview of Operating Modes Mode Details The module is connected to network. Its current consumption varies Connected with the network setting and data transfer rate. Normal Operation The module remains registered on network, and is ready to send and...

  • Page 29: Power Saving

    LPWA Module Series BG770A-GL Hardware Design 3.4. Power Saving 3.4.1. Airplane Mode When the module enters airplane mode, the RF function does not work, and all AT commands correlative with RF function will be inaccessible. This mode can be set via the following ways. Hardware: W_DISABLE#* is pulled up by default.

  • Page 30: Extended Idle Mode Drx (E-I-Drx)

    LPWA Module Series BG770A-GL Hardware Design NOTE See document [4] for details about AT+CPSMS. 3.4.3. Extended Idle Mode DRX (e-I-DRX) The module (UE) and the network may negotiate over non-access stratum signalling the use of e-I-DRX for reducing its power consumption, while being available for mobile terminating data and/or network originated procedures within a certain delay dependent on the DRX cycle value.

  • Page 31: Power Supply

    LPWA Module Series BG770A-GL Hardware Design The following figure shows the connection between the module and the host. Figure 3: Sleep Mode Application via UART  When BG770A-GL has a URC to report, MAIN_RI signal will wake up the host. See Chapter 3.14 for details about MAIN_RI behavior.

  • Page 32: Decrease Voltage Drop

    LPWA Module Series BG770A-GL Hardware Design NOTE When the module starts up normally, to ensure full-function mode, the minimum power supply voltage should be higher than 3.1 V. 3.5.2. Decrease Voltage Drop The power supply VBAT_BB range of BG770A-GL is from 2.2 V to 4.35 V, the power supply VBAT_RF range of BG770A-GL is from 3.1 V to 4.2 V.

  • Page 33: Turn On And Off Scenarios

    LPWA Module Series BG770A-GL Hardware Design 3.6. Turn on and off Scenarios 3.6.1. Pin Definition of PWRKEY The following table shows the pin definition of PWRKEY. Table 8: Pin Definition of PWRKEY Pin Name Pin No. Description DC Characteristics Comment max = 0.3 V Internally pulled up PWRKEY*...
  • Page 34 LPWA Module Series BG770A-GL Hardware Design Figure 6: Turn on the Module by Using Keystroke The power-up scenario is illustrated in the following figure. Figure 7: Power-up Timing BG770A-GL_Hardware_Design 33 / 75...

  • Page 35: Turn Off Module

    LPWA Module Series BG770A-GL Hardware Design NOTE Ensure that VBAT is stable before pulling down PWRKEY pin and keep the interval no less than 30 ms. 3.6.3. Turn off Module Either of the following methods can be used to turn off the module normally: ...

  • Page 36: Reset The Module

    LPWA Module Series BG770A-GL Hardware Design 3.7. Reset the Module RESET_N is used to reset the module. The module can be reset by driving RESET_N low for minimum assertion time 100 ms. Table 9: Pin Definition of RESET_N Pin Name Pin No.

  • Page 37: Pon_Trig

    LPWA Module Series BG770A-GL Hardware Design Figure 11: Reference Circuit of RESET_N by Using Button NOTE Ensure that there is no large capacitance on RESET_N pin. 3.8. PON_TRIG* BG770A-GL provides one PON_TRIG pin which is used to wake up the module from PSM. When the pin detects high level for minimum assertion time 100 μs, the module will wake up from PSM.

  • Page 38: U)Sim Interface

    LPWA Module Series BG770A-GL Hardware Design A reference circuit is shown in the following figure. Figure 12: Reference Circuit of PON_TRIG NOTE VDD_1V8 is provided by an external LDO. 3.9. (U)SIM Interface BG770A-GL supports 1.8 V (U)SIM card only. The (U)SIM interface circuitry meets ETSI and IMT-2000 requirements.
  • Page 39 LPWA Module Series BG770A-GL Hardware Design BG770A-GL supports (U)SIM card hot-plug via USIM_DET, and both high- and low- level detections are supported. The function is disabled by default, and see AT+QSIMDET in document [4] for more details. The following figure shows a reference design of (U)SIM interface with an 8-pin (U)SIM card connector. Figure 13: Reference Circuit of (U)SIM Interface with an 8-Pin (U)SIM Card Connector If (U)SIM card detection function is not needed, keep USIM_DET unconnected.

  • Page 40: Usb Interface

    LPWA Module Series BG770A-GL Hardware Design  Keep the placement of (U)SIM card connector as close to the module as possible. Keep the trace length as less than 200 mm as possible.  Keep (U)SIM card signals away from RF and VBAT traces. ...
  • Page 41 LPWA Module Series BG770A-GL Hardware Design The following figures illustrate reference designs of USB PHY and USB interface. VOUT VBAT USBPHY_3P3 VDD_EXT SGM2040-3.3 USBPHY_3P3_EN Figure 15: Reference Design of USB PHY Figure 16: Reference Design of USB Interface To ensure the integrity of USB data trace signal, components R3 and R4 should be placed close to the module, and also these resistors should be placed close to each other.

  • Page 42: Uart Interfaces

    LPWA Module Series BG770A-GL Hardware Design attention to the selection of the device. Typically, the stray capacitance should be less than 2 pF.  Keep the ESD protection devices as close to the USB connector as possible. NOTES 1. The USB interface is under development, it is not recommended to use at present. 2.
  • Page 43 LPWA Module Series BG770A-GL Hardware Design MAIN_RI* DO/PU Main UART ring indication NOTE AT+IPR command can be used to set the baud rate of the main UART interface, and AT+IFC command can be used to set the hardware flow control (the function is disabled by default). See document [4] for more details about these AT commands.
  • Page 44 LPWA Module Series BG770A-GL Hardware Design Figure 17: Main UART Reference Design (Translator Chip) Visit http://www.ti.com for more information. Another example with transistor translation circuit is shown as below. For the design of circuits in dotted lines, refer to that of circuits in solid lines, but pay attention to the direction of connection. Figure 18: Main UART Reference Design (Transistor Circuit) NOTES 1.

  • Page 45: Pcm And I2C Interfaces

    LPWA Module Series BG770A-GL Hardware Design 3.12. PCM and I2C Interfaces* BG770A-GL provides one Pulse Code Modulation (PCM) digital interface and one I2C interface for VoLTE only. The following table shows the pin definition of the two interfaces which can be applied on audio codec design.

  • Page 46: Network Status Indication

    LPWA Module Series BG770A-GL Hardware Design 3.13. Network Status Indication* BG770A-GL provides one network status indication pin: NET_STATUS. The pin is used to drive a network status indication LED. The following tables describe the pin definition and logic level changes of NET_STATUS in different network activity status.

  • Page 47: Status

    LPWA Module Series BG770A-GL Hardware Design 3.14. STATUS The STATUS pin is used to indicate the operation status of BG770A-GL. It outputs high level when the module powers on. The following table describes the pin definition of STATUS. Table 19: Pin Definition of STATUS Pin Name Pin No.

  • Page 48: Adc Interfaces

    LPWA Module Series BG770A-GL Hardware Design The default MAIN_RI behaviors can be configured flexibly by AT+QCFG="urc/ri/ring"* command. For more details about AT+QCFG, see document [3]. NOTE A URC can be outputted from UART port, through configuration via AT+QURCCFG. 3.16. ADC Interfaces* The module provides two analog-to-digital converter (ADC) interfaces.

  • Page 49: Gpio Interfaces

    LPWA Module Series BG770A-GL Hardware Design NOTES ADC input voltage must not exceed 1.8 V. It is prohibited to supply any voltage to ADC pin when VBAT is removed. It is recommended to use resistor divider circuit for ADC application, and the divider’s resistor accuracy should be no less than 1 %.

  • Page 50: Grfc Interfaces

    LPWA Module Series BG770A-GL Hardware Design 3.18. GRFC Interfaces* The module provides two generic RF control interfaces for the control of external antenna tuners. Table 24: Pin Definition of GRFC Interfaces Pin Name Pin No. Description Comments GRFC1 Generic RF controller 1.8 V power domain.

  • Page 51: Gnss Receiver

    LPWA Module Series BG770A-GL Hardware Design GNSS Receiver* 4.1. General Description BG770A-GL supports GPS and GLONASS satellite systems using dedicated hardware accelerators in a power and cost-efficient manner. The module supports standard NMEA-0183 protocol, and outputs NMEA sentences at 1 Hz data update rate via debug UART interface by default.

  • Page 52: Layout Guidelines

    LPWA Module Series BG770A-GL Hardware Design Autonomous Hot start @ open sky XTRA enabled Accuracy Autonomous CEP-50 1.41 (GNSS) @ open sky NOTES Tracking sensitivity: the minimum GNSS signal power at which the module can maintain lock (keep positioning for at least 3 minutes continuously). Reacquisition sensitivity: the minimum GNSS signal power required for the module to maintain lock within 3 minutes after loss of lock.

  • Page 53: Antenna Interfaces

    LPWA Module Series BG770A-GL Hardware Design Antenna Interfaces BG770A-GL includes a main antenna interface and a GNSS antenna interface. The impedance of antenna port is 50 Ω. 5.1. Main Antenna Interface 5.1.1. Pin Definition The pin definition of the main antenna interface is shown below. Table 27: Pin Definition of Main Antenna Interface Pin Name Pin No.

  • Page 54: Reference Design Of Main Antenna Interface

    LPWA Module Series BG770A-GL Hardware Design LTE-FDD B13 777–787 746–756 LTE-FDD B17 704–716 734–746 LTE-FDD B18 815–830 860–875 LTE-FDD B19 830–845 875–890 LTE-FDD B20 832–862 791–821 LTE-FDD B25 1850–1915 1930–1995 LTE-FDD B26 814–849 859–894 LTE-FDD B27 807–824 852–869 LTE-FDD B28 703–748 758–803 LTE-FDD B66...

  • Page 55: Gnss Antenna Interface

    LPWA Module Series BG770A-GL Hardware Design 5.2. GNSS Antenna Interface The following tables show the pin definition and frequency specification of GNSS antenna interface. 5.2.1. Pin Definition Table 29: Pin Definition of GNSS Antenna Interface Pin Name Pin No. Description Comment ANT_GNSS GNSS antenna interface...

  • Page 56: Antenna Installation

    LPWA Module Series BG770A-GL Hardware Design NOTE The module of BG770A-GL is designed with a passive antenna. 5.3. Antenna Installation 5.3.1. Reference Design of RF Layout For users’ PCB, the characteristic impedance of all RF traces should be controlled to 50 Ω. The impedance of RF traces is usually determined by the trace width (W), the materials’...
  • Page 57 LPWA Module Series BG770A-GL Hardware Design Figure 26: Coplanar Waveguide Design on a 4-layer PCB (Layer 3 as Reference Ground) Figure 27: Coplanar Waveguide Design on a 4-layer PCB (Layer 4 as Reference Ground) To ensure RF performance and reliability, the following principles should be complied with in RF layout design: ...

  • Page 58: Antenna Requirements

    LPWA Module Series BG770A-GL Hardware Design For more details about RF layout, see document [5]. 5.3.2. Antenna Requirements The following table shows the requirements on main antenna and GNSS antenna. Table 31: Antenna Requirements Antenna Type Requirements Frequency range: 1559–1609 MHz Polarization: RHCP or linear VSWR: <...

  • Page 59: Recommended Rf Connector For Antenna Installation

    LPWA Module Series BG770A-GL Hardware Design 5.3.3. Recommended RF Connector for Antenna Installation If RF connector is used for antenna connection, it is recommended to use U.FL-R-SMT connectors provided by HIROSE. Figure 28: Dimensions of the U.FL-R-SMT Connector (Unit: mm) U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
  • Page 60 LPWA Module Series BG770A-GL Hardware Design The following figure describes the space factor of mated connector. Figure 30: Space Factor of Mated Connector (Unit: mm) For more details, visit http://www.hirose.com. BG770A-GL_Hardware_Design 59 / 75...

  • Page 61: Electrical, Reliability And Radio Characteristics

    LPWA Module Series BG770A-GL Hardware Design Electrical, Reliability and Radio Characteristics 6.1. Absolute Maximum Ratings Absolute maximum ratings for power supply and voltage on digital and analog pins of the module are listed in the following table. Table 32: Absolute Maximum Ratings Parameter Min.

  • Page 62: Operating And Storage Temperatures

    LPWA Module Series BG770A-GL Hardware Design the minimum and maximum values. Power supply for USB USBPHY_3P3 PHY circuit USB_VBUS USB connection detect 1.19 NOTE When the module starts up normally, in order to ensure full-function mode, the minimum power supply voltage should be higher than 3.1 V.

  • Page 63: Current Consumption

    LPWA Module Series BG770A-GL Hardware Design 6.4. Current Consumption The following table shows current consumption of BG770A-GL. Table 35: BG770A-GL Current Consumption (Power Supply: 3.3 V, Room Temperature ) Description Conditions Avg. Max. Unit Leakage Power-off @ USB/UART disconnected μA PSM @ USB/UART disconnected μA Rock Bottom...
  • Page 64 LPWA Module Series BG770A-GL Hardware Design LTE-FDD B12 @ dBm LTE-FDD B13 @ dBm LTE-FDD B18 @ dBm LTE-FDD B19 @ dBm LTE-FDD B20 @ dBm LTE-FDD B25 @ dBm LTE-FDD B26 @ dBm LTE-FDD B27 @ dBm LTE-FDD B28A @ dBm LTE-FDD B28B @ dBm LTE-FDD B66 @ dBm LTE-FDD B1 @ dBm...

  • Page 65: Digital I/O Characteristic

    LPWA Module Series BG770A-GL Hardware Design LTE-FDD B66 @ dBm Table 36: GNSS Current Consumption (Power Supply: 3.3 V, Room Temperature ) Description Conditions Typ. Unit Cold start @ Instrument Searching Hot start @ Instrument (AT+CFUN=0) Lost state @ Instrument Instrument environment @ Passive antenna Tracking Half sky @ Real network, Passive antenna...

  • Page 66: Rf Output Power

    LPWA Module Series BG770A-GL Hardware Design Output high voltage 1.36 Output low voltage 0.38 6.6. RF Output Power The following table shows the RF output power of BG770A-GL. Table 39: BG770A-GL RF Output Power Frequency Bands Max. RF Output Power Min.
  • Page 67 LPWA Module Series BG770A-GL Hardware Design LTE-FDD B5 TBD/-100.8 TBD/-107.5 LTE-FDD B8 TBD/-99.8 TBD/-107.5 LTE-FDD B12 TBD/-99.3 TBD/-107.5 LTE-FDD B13 TBD/-99.3 TBD/-107.5 LTE-FDD B17 Not Supported TBD/-107.5 LTE-FDD B18 TBD/-102.3 TBD/-107.5 LTE-FDD B19 TBD/-102.3 TBD/-107.5 LTE-FDD B20 TBD/-99.8 TBD/-107.5 LTE-FDD B25 TBD/-100.3 TBD/-107.5 LTE-FDD B26...

  • Page 68: Electrostatic Discharge

    LPWA Module Series BG770A-GL Hardware Design 6.8. Electrostatic Discharge The module is not protected against electrostatics discharge (ESD) in general. Consequently, it is subject to ESD handling precautions that typically apply to ESD sensitive components. Proper ESD handling and packaging procedures must be applied throughout the processing, handling and operation of any application that incorporates the module.

  • Page 69: Mechanical Dimensions

    LPWA Module Series BG770A-GL Hardware Design Mechanical Dimensions This chapter describes the mechanical dimensions of the module. All dimensions are measured in millimeter (mm), and the dimensional tolerances are ±0.05 mm unless otherwise specified. 7.1. Top and Side Dimensions Pin 1 Figure 31: Module Top and Side Dimensions BG770A-GL_Hardware_Design 68 / 75...
  • Page 70 LPWA Module Series BG770A-GL Hardware Design Pin 1 Figure 32: Bottom Dimensions (Bottom View) NOTE The package warpage level of the module conforms to the JEITA ED-7306 standard. BG770A-GL_Hardware_Design 69 / 75...

  • Page 71: Recommended Footprint

    LPWA Module Series BG770A-GL Hardware Design 7.2. Recommended Footprint Figure 33: Recommended Footprint (Top View) NOTES For easy maintenance of the module, keep a distance of about 3 mm between the module and other components on the motherboard. All reserved pins must be kept open. For stencil design requirements of the module, see document [6].

  • Page 72: Top And Bottom Views

    Figure 34: Top and Bottom View of the Module NOTE Images above are for illustration purpose only and may differ from the actual module. For authentic appearance and label, refer to the module received from Quectel. BG770A-GL_Hardware_Design 71 / 75...

  • Page 73: Storage, Manufacturing And Packaging

    LPWA Module Series BG770A-GL Hardware Design Storage, Manufacturing and Packaging 8.1. Storage The module is provided with vacuum-sealed packaging. MSL of the module is rated as 3. The storage requirements are shown below. 1. Recommended Storage Condition: The temperature should be 23 ±5 °C and the relative humidity should be 35–60 %.

  • Page 74: Manufacturing And Soldering

    LPWA Module Series BG770A-GL Hardware Design NOTES This floor life is only applicable when the environment conforms to IPC/JEDEC J-STD-033. 2. To avoid blistering, layer separation and other soldering issues, it is forbidden to expose the modules to the air for a long time. If the temperature and moisture do not conform to IPC/JEDEC J-STD-033 or the relative moisture is over 60 %, it is recommended to start the solder reflow process within 24 hours after the package is removed.

  • Page 75: Packaging

    LPWA Module Series BG770A-GL Hardware Design Table 42: Recommended Thermal Profile Parameters Factor Recommendation Soak Zone Max slope 1 to 3 °C/s Soak time (between A and B: 150 °C and 200 °C) 70 to 120 s Reflow Zone Max slope 2 to 3 °C/s Reflow time (D: over 220 °C) 45 to 70 s...
  • Page 76 LPWA Module Series BG770A-GL Hardware Design Figure 36: Tape Dimensions Figure 37: Reel Dimensions Table 43: BG770A-GL Packaging Specifications MOQ for MP Minimum Package: 500 Minimum Package x 4 = 2000 Size: 370 mm × 350 mm × 56 mm Size: 380 mm ×...

  • Page 77: Appendix A References

    LPWA Module Series BG770A-GL Hardware Design Appendix A References Table 44: Related Documents Document Name Description Quectel_BG770A-GL_GNSS_Application_Note BG770A-GL GNSS Application Note Quectel_UMTS&LTE_EVB_User_Guide UMTS&LTE EVB User Guide AT+QCFG Commands Manual for Quectel_BG770A-GL_QCFG_AT_Commands_Manual BG770A-GL Module AT Commands Manual of BG770A-GL Quectel_BG770A-GL_AT_Commands_Manual Module Quectel_RF_Layout_Application_Note RF Layout Application Note Quectel_Module_Secondary_SMT_Application_Note...
  • Page 78 LPWA Module Series BG770A-GL Hardware Design e-I-DRX Extended Idle Mode Discontinuous Reception Evolved Packet Core Electrostatic Discharge Frequency Division Duplex Home Subscriber Server Inter-Integrated Circuit Low Noise Amplifier Low Pass Filter Long Term Evolution Mobile Originated Mobile Terminated Password Authentication Protocol Printed Circuit Board Protocol Data Unit Point-to-Point Protocol...
  • Page 79 LPWA Module Series BG770A-GL Hardware Design Vmax Maximum Voltage Value Vnom Nominal Voltage Value Vmin Minimum Voltage Value VIHmax Maximum Input High Level Voltage Value VIHmin Minimum Input High Level Voltage Value VILmax Maximum Input Low Level Voltage Value VSWR Voltage Standing Wave Ratio WWAN Wireless Wide Area Network...
