carrier.
4. 4) EM160R-GL supports up to 4 × 4 MIMO in DL direction.
5)
5. MIMO antennas only apply for EM160R-GL.
6. For details about CA combinations, refer to document [1].
EM120R-GL&EM160R-GL can be applied in the following fields:
⚫
Tablet PC and Laptop
⚫
Remote Monitor System
⚫
Vehicle System
⚫
Wireless POS System
⚫
Smart Metering System
⚫
Wireless Router and Switch
⚫
Other Wireless Terminal Devices

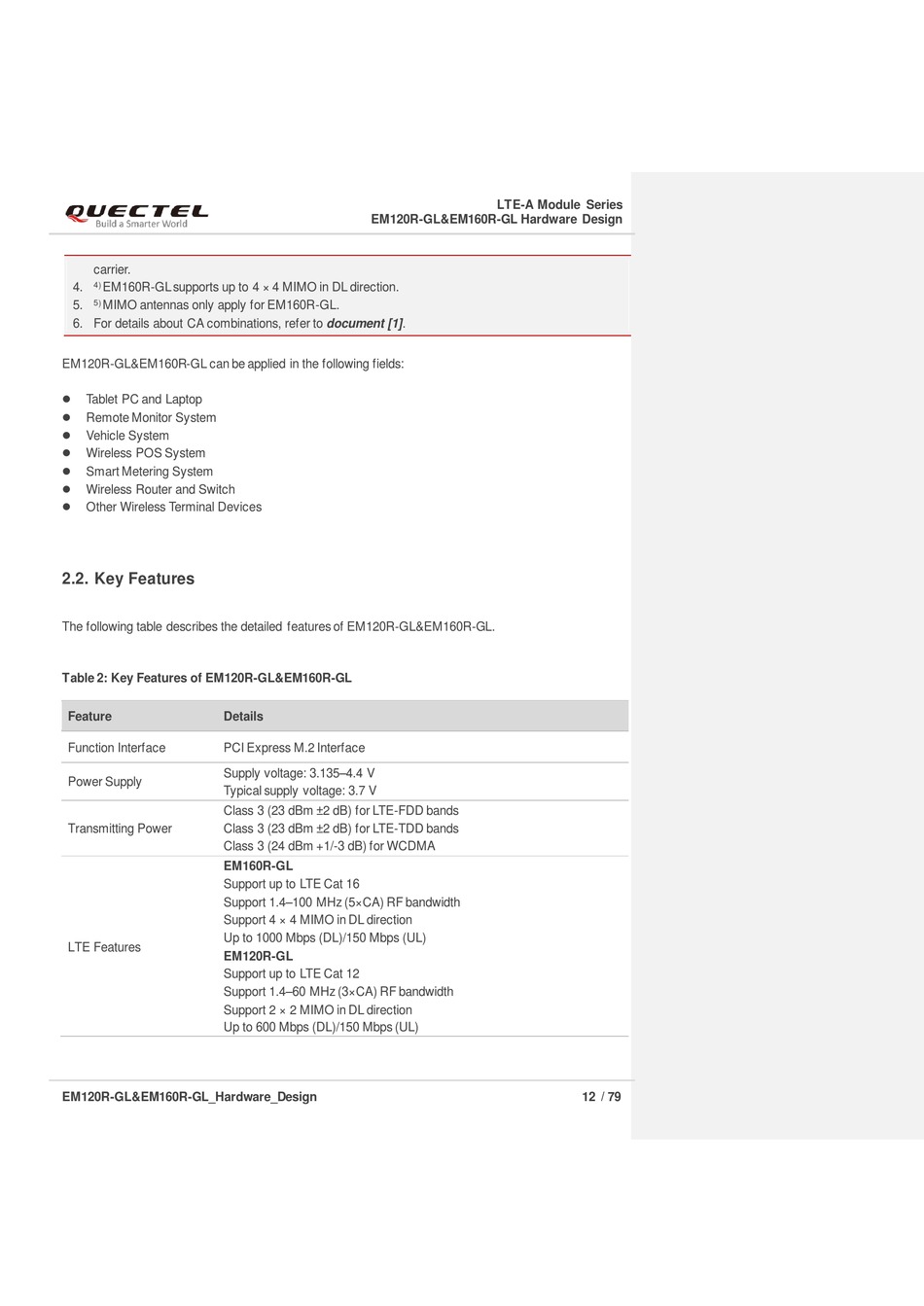

2.2. Key Features

The following table describes the detailed features of EM120R-GL&EM160R-GL.
Table 2: Key Features of EM120R-GL&EM160R-GL
Feature Details
Function Interface PCI Express M.2 Interface
Supply voltage: 3.135–4.4 V
Power Supply
Typical supply voltage: 3.7 V
Class 3 (23 dBm ± 2 dB) for LTE-FDD bands
Transmitting Power Class 3 (23 dBm ± 2 dB) for LTE-TDD bands
Class 3 (24 dBm +1/-3 dB) for WCDMA
EM160R-GL
Support up to LTE Cat 16
Support 1.4–100 MHz (5×CA) RF bandwidth
Support 4 × 4 MIMO in DL direction
Up to 1000 Mbps (DL)/150 Mbps (UL)
LTE Features
EM120R-GL
Support up to LTE Cat 12
Support 1.4–60 MHz (3×CA) RF bandwidth
Support 2 × 2 MIMO in DL direction
Up to 600 Mbps (DL)/150 Mbps (UL)
EM120R-GL&EM160R-GL_Hardware_Design
LTE-A Module Series
EM120R-GL&EM160R-GL Hardware Design
12 / 79
