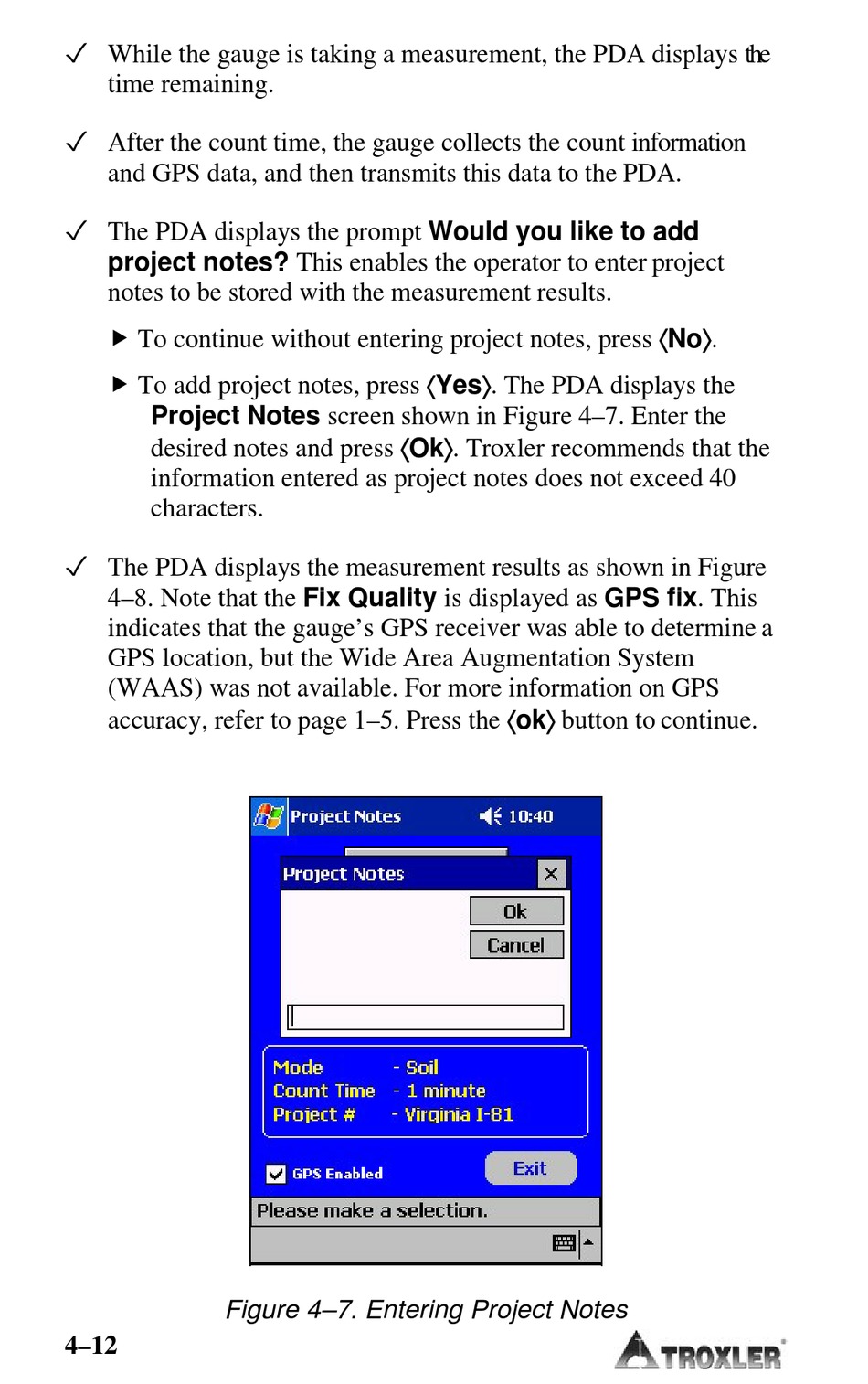

Troxler Enhanced RoadReader Plus 3451 Manual Of Operation And Instruction page 75

✓ While the gauge is taking a measurement, the PDA displays the
time remaining.
✓ After the count time, the gauge collects the count information
and GPS data, and then transmits this data to the PDA.
✓ The PDA displays the prompt Would you like to add
project notes? This enables the operator to enter project
notes to be stored with the measurement results.
 To continue without entering project notes, press 〈No〉.
 To add project notes, press 〈Yes〉. The PDA displays the
Project Notes screen shown in Figure 4–7. Enter the
desired notes and press 〈Ok〉. Troxler recommends that the
information entered as project notes does not exceed 40
characters.
✓ The PDA displays the measurement results as shown in Figure
4–8. Note that the Fix Quality is displayed as GPS fix. This
indicates that the gauge's GPS receiver was able to determine a
GPS location, but the Wide Area Augmentation System
(WAAS) was not available. For more information on GPS
accuracy, refer to page 1–5. Press the 〈ok〉 button to continue.
Figure 4–7. Entering Project Notes
4–12
