View Project Configuration - Troxler Enhanced RoadReader Plus 3451 Manual Of Operation And Instruction

VIEW PROJECT CONFIGURATION

The Data Manager software also includes tools for downloading,
viewing, printing, and storing the configuration of the active project.
To access these tools, click the 〈View Project Configuration〉
button on the Main Menu (see Figure 7–1). From the resulting
menu (see Figure 7–6), the operator can:
♦
Download the active project from the PDA
♦
View the gauge calibration constants, project setup and status,
standard counts, source decay, and results of stat and drift tests
♦
Print project configuration data
♦
Save the configuration data as a text (.txt) file

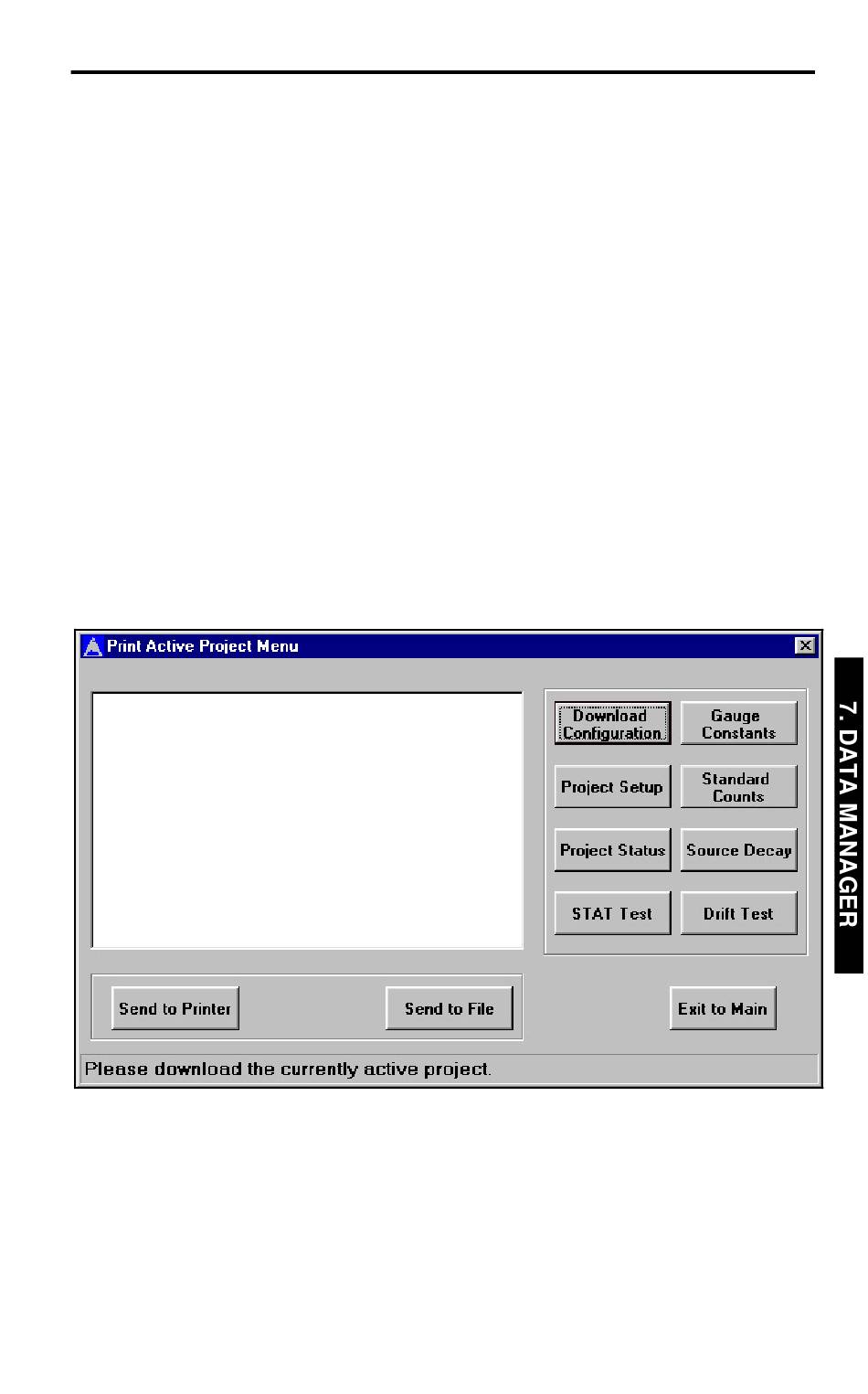

Figure 7–6. Print Active Project Menu
Model 3451
7–
