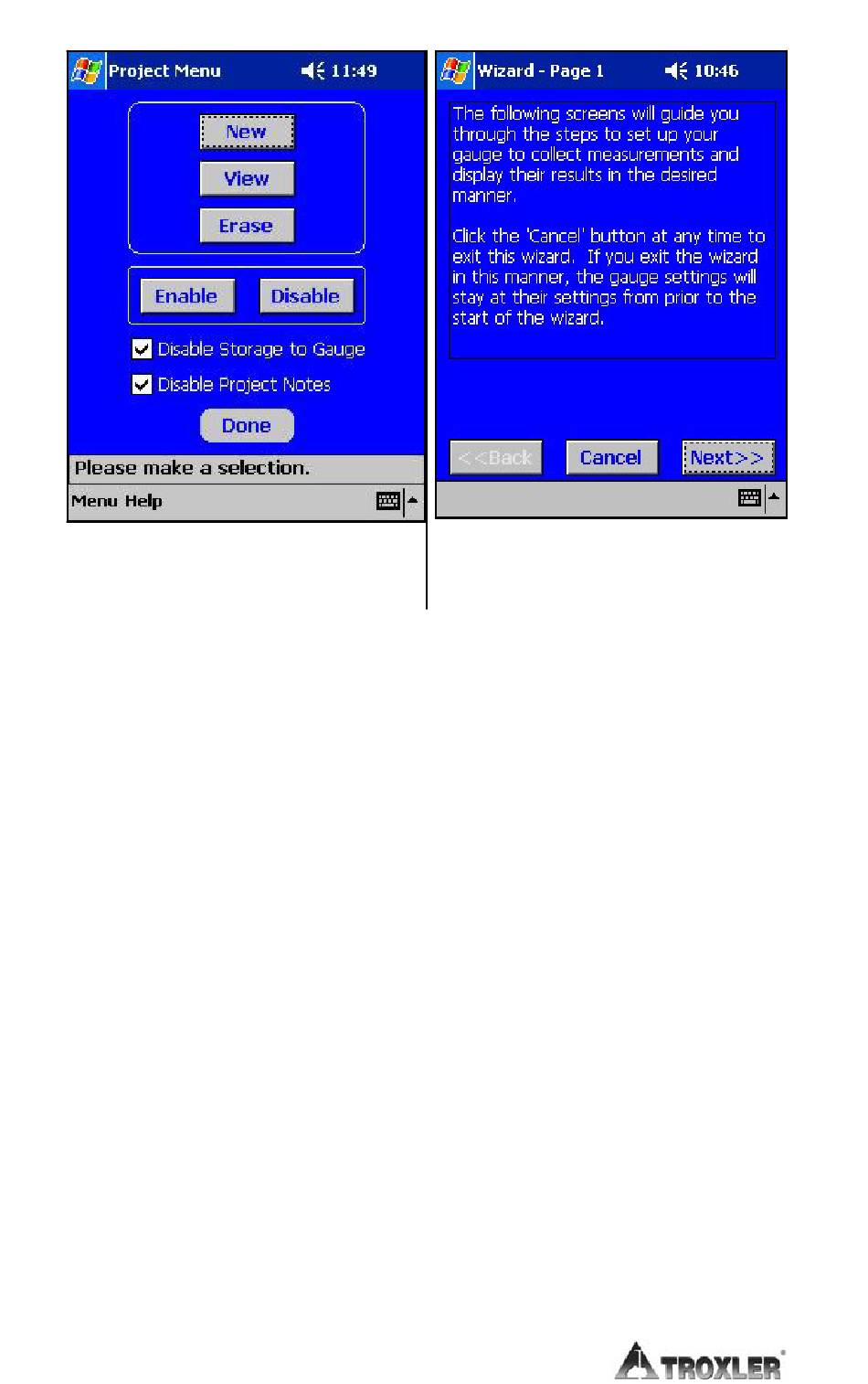

Figure 3–12. Project Menu
The Wizard is a series of screens that provides step-by-step
instructions for setting up a new project. Using the wizard, the
operator is prompted to:
✓ Select the measurement mode (Soil, Asphalt, or Thin Layer).
For more information, refer to page 5–5.
✓ Select the desired measurement units. For more information on
measurement units, refer to page 5–4.
✓ Set the count time. For more information, see page 5–6.
✓ For thin layer mode, enter the thickness of the top layer.
✓ Enable any previously entered target values. For more
information on target values, see page 5–14.
The Wizard displays the operator selections for review. To change
a setting, press the 〈Back〉 button to return to the page for that
function or press the 〈Cancel〉 button to start over. When all
settings are correct, press the 〈Next〉 button to continue.
3–20
Figure 3–13. New Project
Setup Wizard, Page 1
