Jenny Science XENAX Xvi 75V8S Instruction Manual page 55

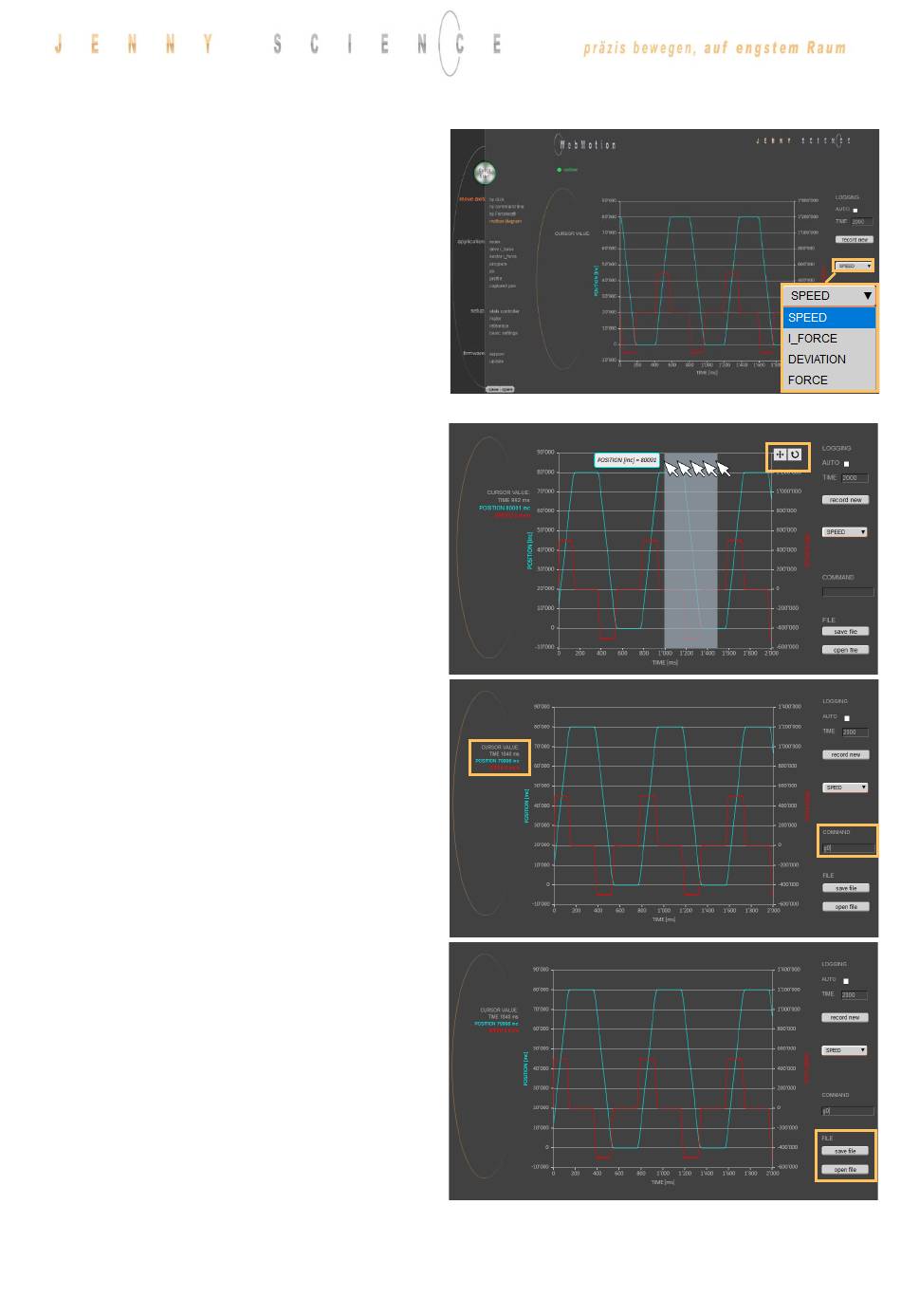

Records speed in increments in relation to the
Records current in milliampere in relation to the
Records position deviation in increments.
Records the Force in Newton in relation to the
position (only with Signateq® possible).
Zoom of curve section on time axis.
By dragging the mouse over a time section, this part
The "Reset" button undoes the zoom action. With the
"Pan" key the time axis can be moved with the
Enter command e.g. starting position of the motor,
REF, G0, drive on a position or repeat reverse (RR).
Shows the current values at the time of the cursor in
Saves the motion profile on the computer.
Shows a motion profile which was saved on the
computer. The upload has no influence on the
parameters of the servo controller.
SPEED
position.
IFORCE
position.
DEVIATION
FORCE
Zoom
can be zoomed.
mouse.
Command
CURSOR VALUE
the recording.
safe file
open file
Pan Reset
55
