Jenny Science XENAX Xvi 75V8S Instruction Manual page 114

The Fault description without WebMotion®

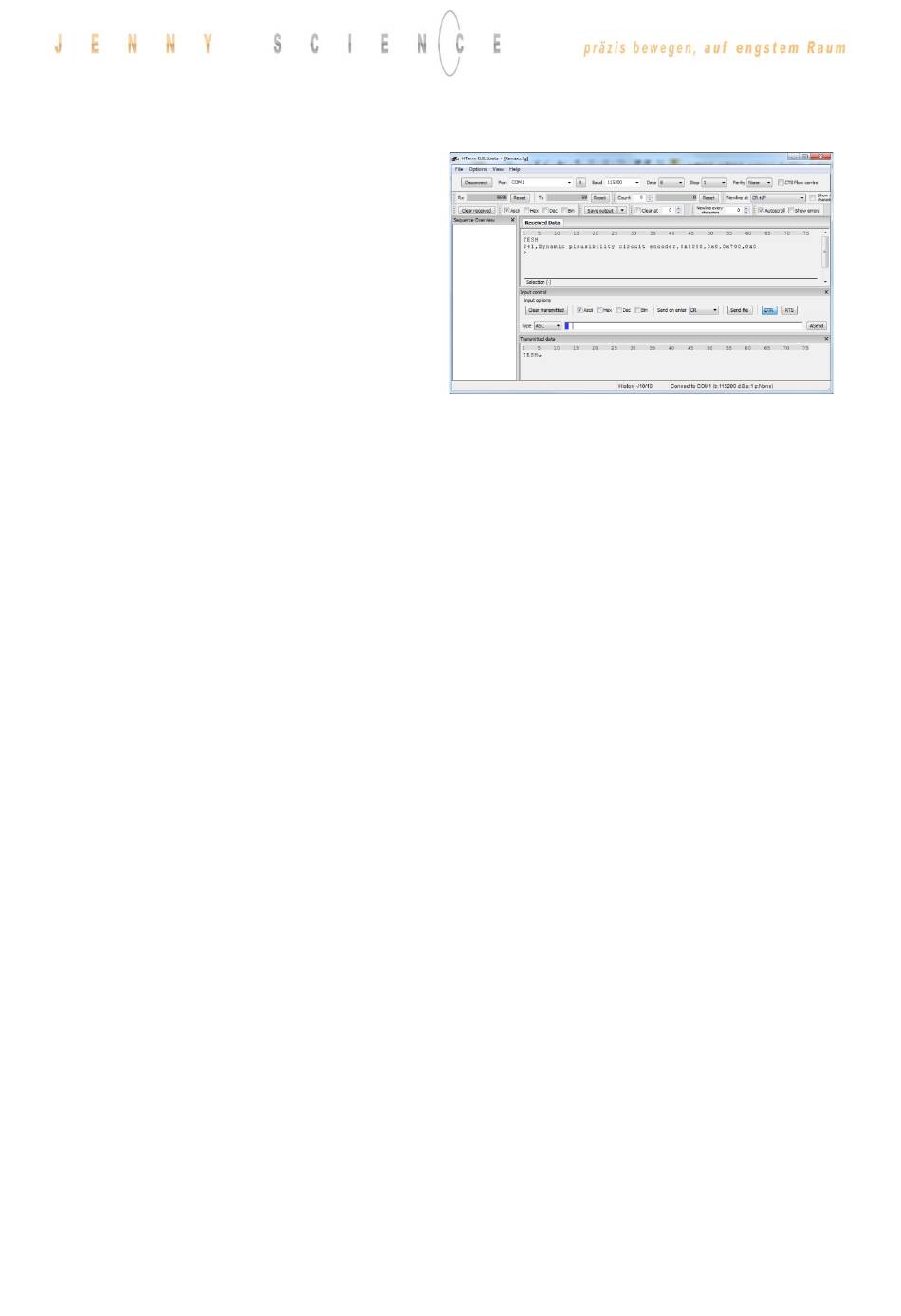

Open a terminal program and give in the command
F-Number Description
210 host communication, external
supervising, watchdog
220 data consistency/checksum
master/slave
232 firmware version not compatible
241 dynamic plausibility circuit encoder
243 plausibility digital signal
244 plausibility analogue signal
245 encoder cable disconnected
246 faulty input states
247 power active input test
252 motor data failure
All other error codes are internal hardware failures. If error repeats multiple times, please contact Jenny Science.
„TESM".
Note
Communication SMU to XENAX interrupted. Potentially, bad
shielding of encoder cable
Parameters were not uploaded correctly. Please try to
download SMU parameters again.
Firmware was not uploaded correctly. Please try to
download SMU firmware again.
Invalid state of one or more encoder signals. Check encoder
cable, possible cable break. Restart XENAX®.
Invalid voltage difference of one or more encoder signals.
Check encoder cable, cable possibly broken
Unplugged encoder cable on XENAX®. Problems with the
signal connecting. Cable possibly broken.
Encoder cable disconnected to XENAX®.
There is only one active Input from the safety. There must
always be two Inputs activated for safety.
Pin 9 is activated in XENAX®, this Input should not be used
with the SMU
Motor data have not been forwarded to SMU. Potentially,
there is bad shielding on the encoder cable
