SOT TYPE SOA
Bit-value Bit-value
0,1 SOURCE 1
0
SOT TYPE SOA
Bit-value Bit-value
0,0 SINK 1
0
SOT TYPE SOA
Bit-value Bit-value
1,0 SINK / 1
SOURCE
0
TYPE SOURCE
ACTIVITY Output Output
ON OFF
HIGH 24V* open*
LOW open 24V
All Output SOURCE
SOT 21845
SOA 255 / 0
TYPE SINK
ACTIVITY Output Output
ON OFF
HIGH open 0V
LOW 0V open
All Output SINK
SOT 0
SOA 255 / 0
TYPE SOURCE/SINK
ACTIVITY Output Output
ON OFF
HIGH 24V 0V
LOW 0V 24V
All Output SOURCE/SINK
SOT 43690
SOA 255 / 0

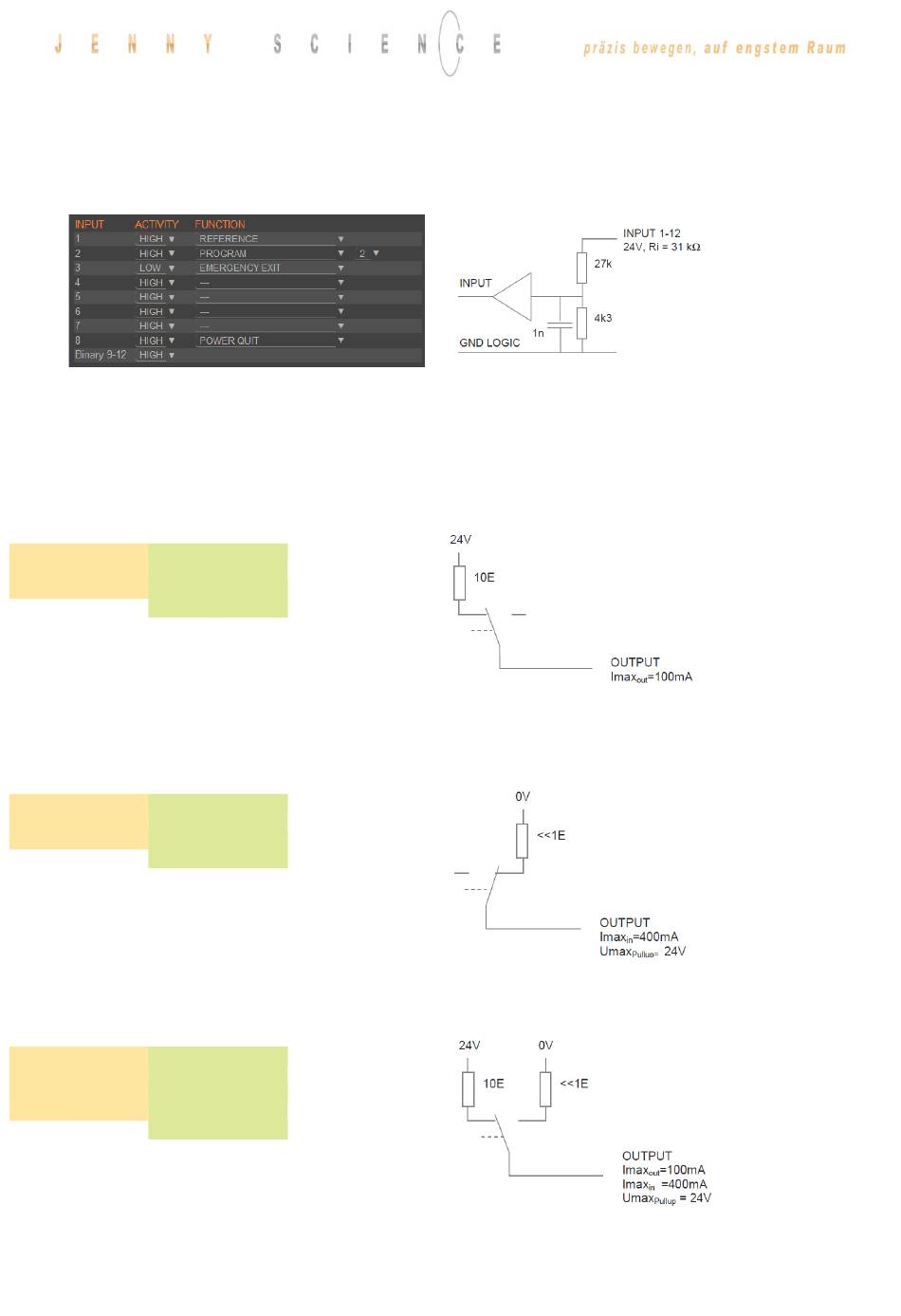

5.3 Internal I/O Circuit

INPUT 1-12
HIGH or LOW ACTIVITY programmable
OUTPUT 1-8
25
