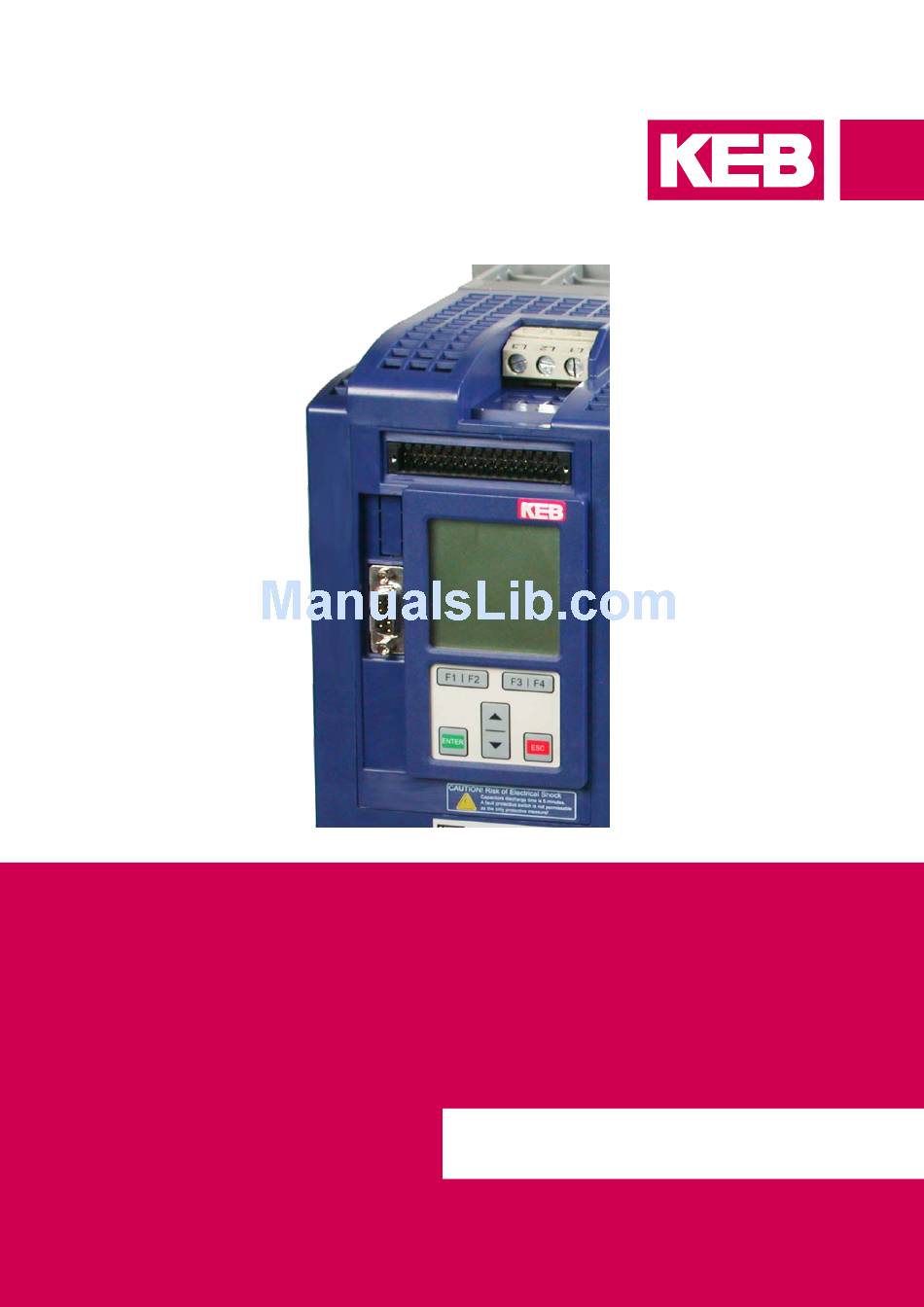

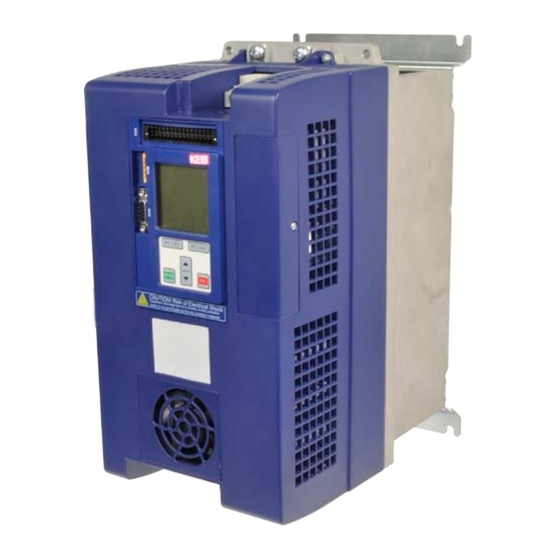

- Page 1 COMBIVERT G6 INSTRUCTIONS FOR USE | PROGRAMMING MANUAL CONTROL UNIT ANALOG / DIGITAL Translation of original manual Document 20087588 EN 01...
-
Page 3: Signal Words And Symbols
PRefACe Preface The described hard- and software are developments of the KEB Automation KG. The enclosed documents correspond to conditions valid at printing. Misprint, mistakes and technical changes reserved. Signal words and symbols Certain operations can cause hazards during the installation, operation or thereafter. -
Page 4: Laws And Guidelines
Copyright The customer may use the instruction manual as well as further documents or parts from it for internal purposes. Copyrights are with KEB Automation KG and remain valid in its entirety. Other wordmarks or/and logos are trademarks (™) or registered trademarks (®) of their... -
Page 5: Table Of Contents
TAbLe Of CONTeNTS Table of Contents Preface ..............................3 Signal words and symbols ......................3 More symbols ..........................3 Laws and guidelines ........................4 Warranty ............................4 Support ............................4 Copyright ............................4 Table of Contents ........................... 5 List of figures ............................7 List of Tables ............................8 1 basic Safety Instructions .......... -
Page 6: Table Of Contents
TAbLe Of CONTeNTS 5 Operator parameter ............. 20 5.1 General control card parameters (Operator functionality) ............20 5.2 Display parameter (dp) ........................25 6 Customer parameters (CP Parameter) ....... 26 7 Inverter parameters (power unit functionality) ..27... -
Page 7: List Of Tables
Figure 13: Select control board parameter group ................20 List of Tables Table 1: Numerical code for COMBIVERT G6 with STO ............... 11 Table 2: assignment of the function keys..................13 Table 3: Overview basic settings of dp-parameters ............... 24... -
Page 8: Basic Safety Instructions
Hazards and risks through ignorance. ► Read the instruction manual ! ► Observe the safety and warning instructions ! ► If anything is unclear, please contact KEB Automation KG ! 1.1 Target group This instruction manual is determined exclusively for electrical personnel. Electrical per- sonnel for the purpose of this instruction manual must have the following qualifications: •... -
Page 9: Electrical Connection
bASIC SAfeTy INSTRUCTIONS 1.3 electrical connection DANGeR Voltage at the terminals and in the device ! Danger to life due to electric shock ! ► For any work on the unit switch off the supply voltage and secure it against switching on. ►... -
Page 10: Product Description
The used semiconductors and components of the KEB Automation KG are developed and dimensioned for the use in industrial products. Limitation If the KEB COMBIVERT F5 is used in machines, which work under exceptional condi- tions or if essential functions, life-supporting measures or an extraordinary safety step must be fulfilled, the necessary reliability and security must be ensured by the machine builder. -
Page 11: Safety Function
PRODUCT DeSCRIPTION 2.3 Safety function Attention The certification of controllers with safety technology is only valid under the following conditions:: ► The material number corresponds to the specified numerical code (see below). ► The FS logo is printed on the type plate. Numerical code for COMBIVERT G6 with STO xxG6xAx-xxxx xxG6xBx-xxxx xxG6xCx-xxxx xxG6xDx-xxxx xxG6xHx-xxxx xxG6xIx-xxxx xxG6xKx-xxxx xxG6xLx-xxxx Table 1:... -
Page 12: Operation
OPeRATION 3 Operation 3.1 Control elements Name function ① Menu bar Inverter parameter ② Function bar ① CP mode Function key 1 Operator parameter Function key 2 Settings Function key 3 Function key 4 ▲ Menu bar up or increase parameter value ▼... -
Page 13: Function Keys And Toolbar
OPeRATION 3.1.1.2 Function keys and toolbar The function keys F1...F4 are variable assigned depending on the menu item. The tool- bar displays current assignment of the function keys F1 ... F4. The following assignment may take the keys: Display Function DecHex Representation changes between decimal and hexadecimal display Menu... -
Page 14: Main Menu
OPeRATION 3.2.2 Main menu The main menu is the top-level menu. With the keys <▲> and <▼> select the desired submenu. Press <ENTER> to jump to the Inverter parameter selected submenu. CP mode Operator parameter „Inverter parameters (power unit function- Settings ality)“ on page 26 „Customer parameters (CP Parameter)“ on page 25 „Operator parameter“... -
Page 15: Basic Settings
bASIC SeTTINGS 4 basic settings To adjust the display to the individual needs select "Settings" in the main menu and confirm with <ENTER>. Language english Start mode CP Mode Font size With the keys <▲> and <▼> select the Font size 2 desired function. -
Page 16: Startup Mode
bASIC SeTTINGS 4.2 Startup mode The start mode determines which display appears at switch on. Language english Start mode CP Mode Press <ENTER> to switch into the input Font size mode to change the parameter value. Font size 2 Contrast Startup mode Menu With the keys <▲> and <▼> select one of... -
Page 17: Contrast Settings
bASIC SeTTINGS The font size 2 determines the display size of the parameter values in CP mode. Language english Start mode CP Mode Press <ENTER> to switch into the input Font size mode to change the parameter value. Font size 2 Contrast Font size 2 Menu... -
Page 18: Setting The Backlight Of The Display
bASIC SeTTINGS 4.5 Setting the backlight of the display The menu item "Lighting" defines the be- havior of the backlight of the LC Display. Language english Start mode CP Mode Press <ENTER> to switch into the input Font size mode to change the parameter value. Font size 2 Contrast Backlight... -
Page 19: Operator Parameter
OPeRATOR PARAMeTeR 5 Operator parameter Use the operator parameters to configure the control card, the fieldbus (if available) and the display. Inverter parameter CP mode Operator parameter With the keys <▲> and <▼> select "Op- Settings erator parameter" and confirm with <EN- TER>. Figure 12: Operator parameter The control card parameters at the analog / digital control are divided into two groups: os - Operator system parameters;... - Page 20 OPeRATOR PARAMeTeR os01 password OS 0x2082 Value Meaning -1…-9 Displays the current password level of the operator. This parameter is a mapping of the parameter Ud01. This parameter is only visible via bus if "invisible parameter" is set in COMBIVIS. os02 software date OS 0x2082...
- Page 21 OPeRATOR PARAMeTeR os08 operator type 0x2088 Function Value Plaintext Displaying the implemented control card functions. Initiator without with initiator Keyboard/display without with keyboard/display Power unit-image without power unit-image with power unit-image SSM with level f=0 Hz without SSM with level f=0 Hz 1024 with SSM with level f=0 Hz without safety function...
- Page 22 OPeRATOR PARAMeTeR os12 operator command 0x208C Value Meaning Default of instructions according to coding (see below) Load default values in all operator parameters reinitialize PU-parameter-image 0x208D os13 operator state Function Value Meaning Displays the status of the power unit, as well as the image of the power unit parameter in the control board. Communication to safe- –...
-
Page 23: Table 3: Overview Basic Settings Of Dp-Parameters
OPeRATOR PARAMeTeR os18 safety software date 0x2092 Value Meaning Software date of installed safety module. The year is displayed before the comma, month and day are after that. 0,0000… • 2014,0713 means 13.07.2014. 9999, 3112 If no safety module is installed, the value "0: no safety functionality“ is displayed. 0x2093 os19 safety software version... -
Page 24: Display Parameter (Dp)
OPeRATOR PARAMeTeR os29 serial number OS 0x209D Value Meaning 0…65535 Displays serial number part 2 of the control hardware. os30 serial number OS 2 0x209e Value Meaning 0…65535 Displays serial number part 2 of the controller hardware. 5.2 Display parameter (dp) The display parameters are used to set the display via bus. -
Page 25: Customer Parameters (Cp Parameter)
CUSTOMeR PARAMeTeRS (CP PARAMeTeR) 6 Customer parameters (CP Parameter) If the development phase of a machine is complete, usually only a few parameters to adjust or control of the inverter are needed. In order to simplify the handling and cos- tumer documentation and to increase security against unauthorized access, there is a possibility to create an own user interface and the CP parameters. -
Page 26: Inverter Parameters (Power Unit Functionality)
INVeRTeR PARAMeTeRS (POWeR UNIT fUNCTIONALITy) 7 Inverter parameters (power unit functionality) The inverter parameters include all existing parameters in the power unit. They are func- tion based divided into groups. Through the internal bus they are shown at the controller. The inverter parameters are described in the programming manual G6 „00G6NDA-0020“. - Page 27 Room 1709, 415 Missy 2000 725 Su Seo Dong Gangnam Gu 135- 757 Seoul Republic of Korea Société Française KEB SASU Tel: +82 2 6253 6771 Fax: +82 2 6253 6770 E-Mail: vb.korea@keb.de france Z.I. de la Croix St. Nicolas 14, rue Gustave Eiffel 94510 La Queue en Brie France KEB RUS Ltd.
