Note that it is important to make regular checks of the safety stop functionality
to ensure that all safety stop devices are functioning correctly.
The two emergency stop inputs EA-EB and EEA-EEB are potential free inputs
conforming to IEC 60664-1 and EN 60664-1, pollution degree 2, overvoltage cat-
egory II.
The emergency stop outputs EO1-EO2-EO3-EO4 are relay contacts conform-
ing to IEC 60664-1 and EN 60664-1, pollution degree 2, over-voltage category
III.

2.3.2 The Safeguard Interface

[TA]
[TB]
[SA]
[SB]
[A]
[R]
[24V]
[GND]
The Safeguard Interface is used to pause the robot movement in a safe way.
The Safeguard Interface can be used for light guards, door switches, safety PLCs
etc. Resuming from a safeguard stop can be automatic or can be controlled
by a pushbutton, depending on the safeguard configuration. If the Safeguard
Interface is not used then enable automatic reset functionality as described in
section 2.3.3.

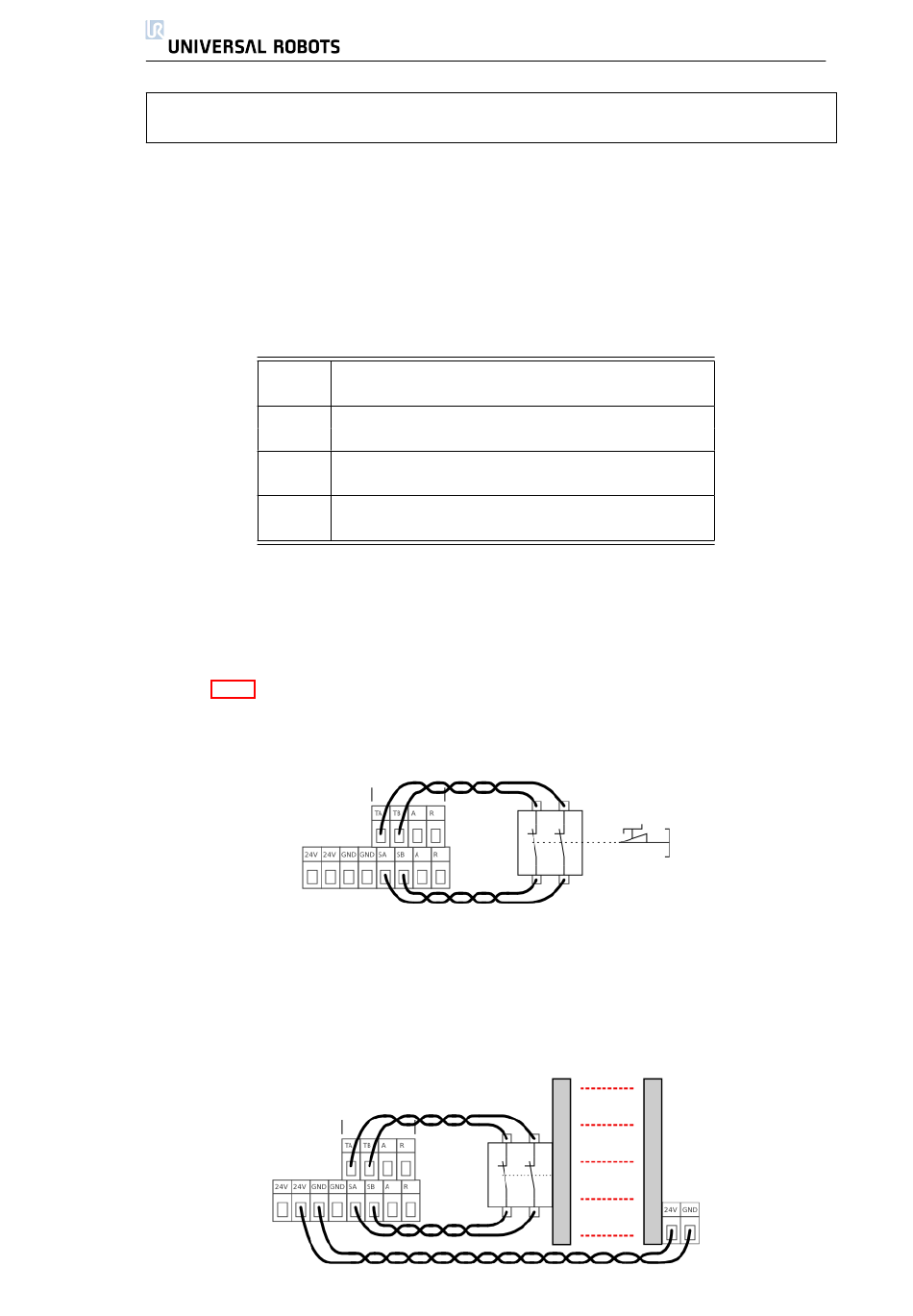

Connecting a door switch
Connecting a door switch or something comparable is done as shown above.
Remember to use a reset button configuration if the robot should not start au-
tomatically when the door is closed again.
Connecting a light guard
All Rights Reserved
Test Output A
Test Output B
Safeguard Stop Input A (Positive)
Safeguard Stop Input B (Negative)
Automatic continue after safeguard stop
Reset safeguard stop
+24V supply connection for safety devices
0V supply connection for safety devices
