4.3 Pressure Elimination Unit for Direct Steam Humidification

4.3.1

Setup and Function

I
H
G

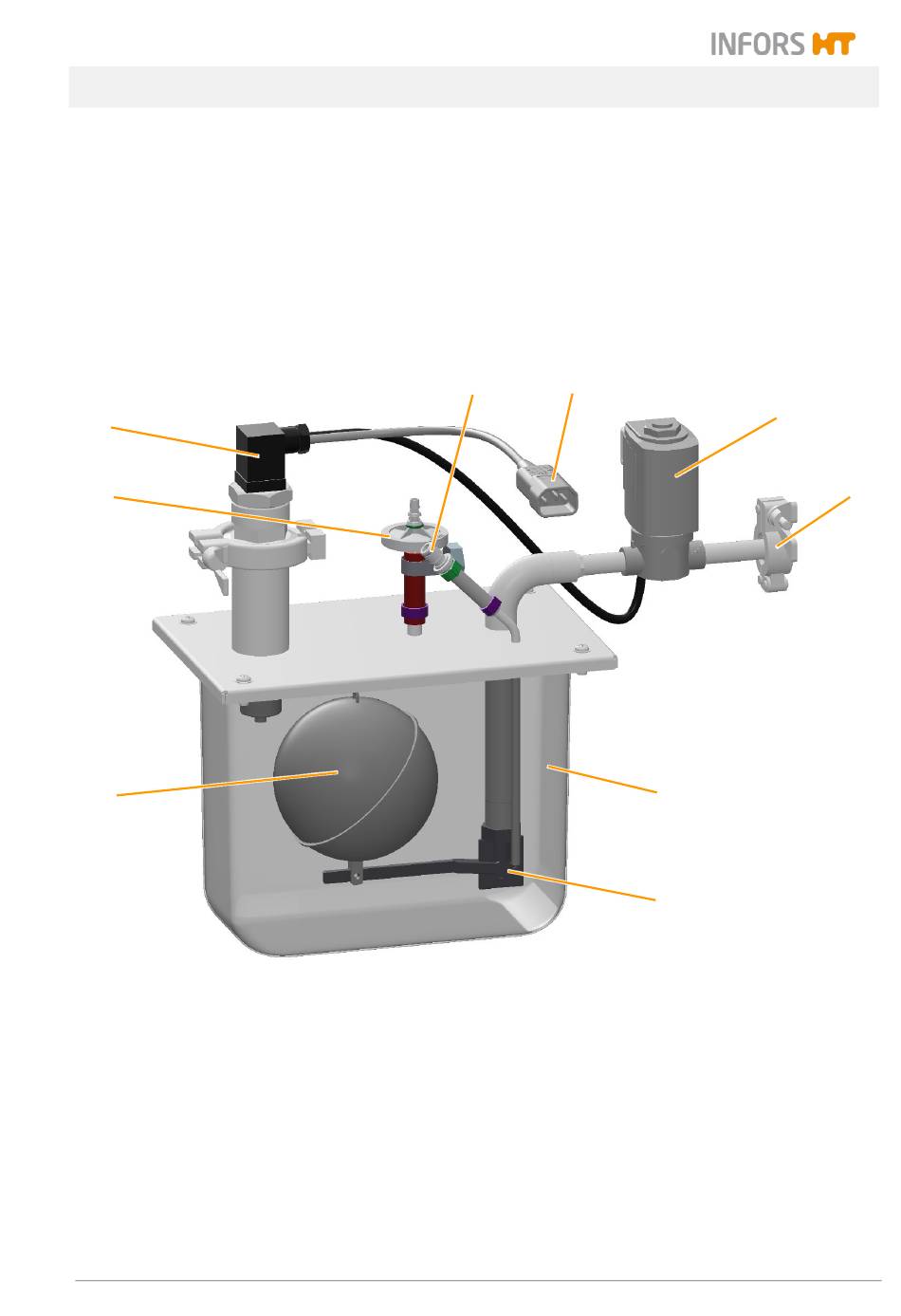

A Water inlet line steam generators
B Mains connection level sensor
C Solenoid valve
D Connection pressurized water line
E Stainless steel vessel
Page 42 of 158
The pressure elimination unit is used to connect the optional direct
steam humidification to a pressurized water line (e.g. VE water line)
with a pressure of up to 6 bar.
A
F Valve
G Float
H One-way filter for pressure compensation
I Level sensor
B
E
F
C
D
