Key Snapshots
Key settings other than the key on/off status and the key priority can all be
instantaneously saved in a dedicated register, for recall when required. A key
snapshot comprises three values: a cross-point button number, key memory full
mode, and independent key transition, and can be called in any combination.
There are four key snapshot registers for each keyer.
Key Snapshot Operations
Key snapshot operations are carried out in the independent key transition
control block downstream key control block or Multifunction Flexi Pad control
block. Each keyer is provided with four dedicated key snapshot registers.
Key source name display/key snapshot buttons
Key delegation buttons
Key snapshot setting
buttons

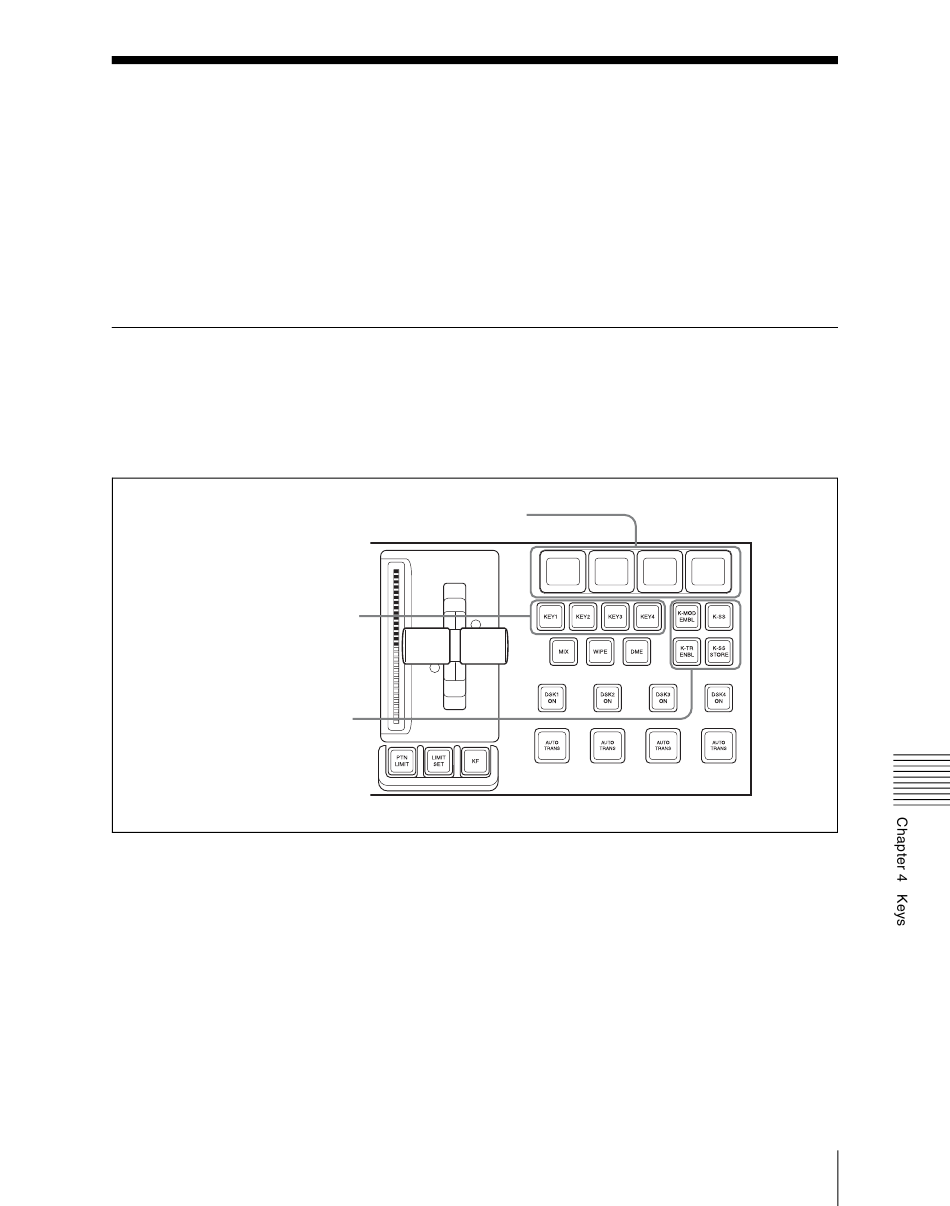

Independent key transition control block (standard type)
Saving a key snapshot
For example, the following procedure saves the state of the M/E-1 key 1
settings.
1
In the M/E-1 independent key transition control block, press the key
delegation button [KEY1], turning it on.
2
Press the [K-SS] button, turning it on.
