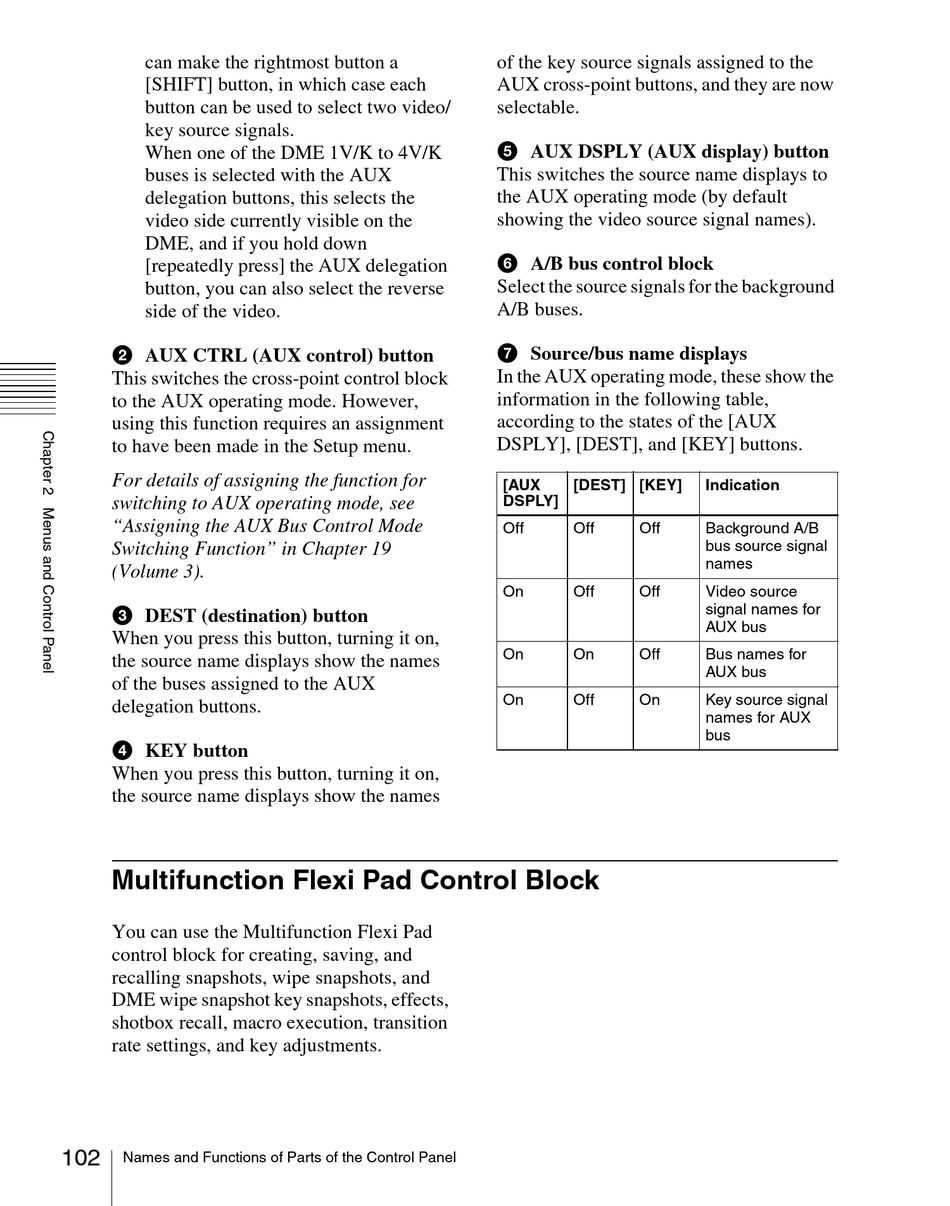

can make the rightmost button a
[SHIFT] button, in which case each
button can be used to select two video/
key source signals.
When one of the DME 1V/K to 4V/K
buses is selected with the AUX
delegation buttons, this selects the
video side currently visible on the
DME, and if you hold down
[repeatedly press] the AUX delegation
button, you can also select the reverse
side of the video.
b AUX CTRL (AUX control) button
This switches the cross-point control block
to the AUX operating mode. However,
using this function requires an assignment
to have been made in the Setup menu.
For details of assigning the function for
switching to AUX operating mode, see
"Assigning the AUX Bus Control Mode
Switching Function" in Chapter 19
(Volume 3).
c DEST (destination) button
When you press this button, turning it on,
the source name displays show the names
of the buses assigned to the AUX
delegation buttons.
d KEY button
When you press this button, turning it on,
the source name displays show the names

Multifunction Flexi Pad Control Block

You can use the Multifunction Flexi Pad
control block for creating, saving, and
recalling snapshots, wipe snapshots, and
DME wipe snapshot key snapshots, effects,
shotbox recall, macro execution, transition
rate settings, and key adjustments.
102
Names and Functions of Parts of the Control Panel
of the key source signals assigned to the
AUX cross-point buttons, and they are now
selectable.
e AUX DSPLY (AUX display) button
This switches the source name displays to
the AUX operating mode (by default
showing the video source signal names).
f A/B bus control block
Select the source signals for the background
A/B buses.
g Source/bus name displays
In the AUX operating mode, these show the
information in the following table,
according to the states of the [AUX
DSPLY], [DEST], and [KEY] buttons.
[AUX [DEST] [KEY]
DSPLY]
Off Off Off
On Off Off
On On Off
On Off On
Indication
Background A/B
bus source signal
names
Video source
signal names for
AUX bus
Bus names for
AUX bus
Key source signal
names for AUX
bus
