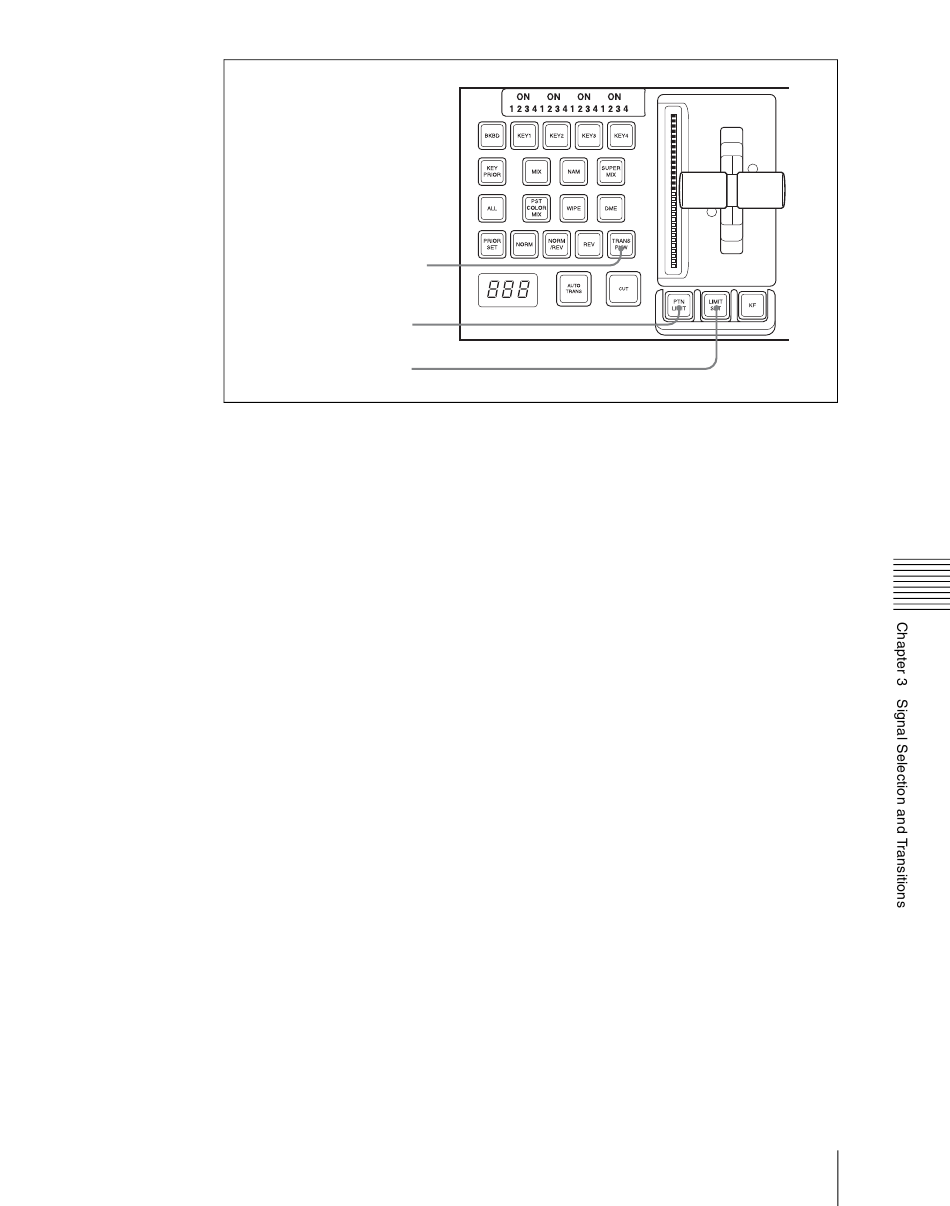

TRANS PVW button
PTN LIMIT button
LIMIT SET button
Setting the pattern limit with the fader lever
1
Move the fader lever to the position corresponding to a particular pattern
size.
• First make sure that the [PTN LIMIT] button is off.
• To check the pattern size on the preview monitor, first press the [TRANS
PVW] button, to select the transition preview mode (see page 174).
2
Press the [LIMIT SET] button.
This sets the current fader lever position as the pattern limit.
Setting the pattern limit by a menu operation
1
When a wipe is selected as the transition type, in the M/E or PGM/PST
menu, select first VF5 'Wipe,' then HF4 'Edge/Direction.'
When a DME wipe is selected as the transition type, in the M/E or PGM/
PST menu, select first VF6 'DME Wipe,' then HF4 'Edge/Direction.'
The Edge/Direction menu appears.
2
Press the [Pattern Limit] button, turning it on.
