DME wipe from a 4:3 image to a 16:9 image
Wipe action using slide (No. 1001)
16:9 image
DME wipe from a 4:3 image to another 4:3 image (when side flags
are on for both images)
Wipe action using squeeze (No. 1031)
4:3 image (Side flags on)
a) When using the MVE-9000/MVE-8000A through SDI interface, side flags are not added during
a DME wipe.
476

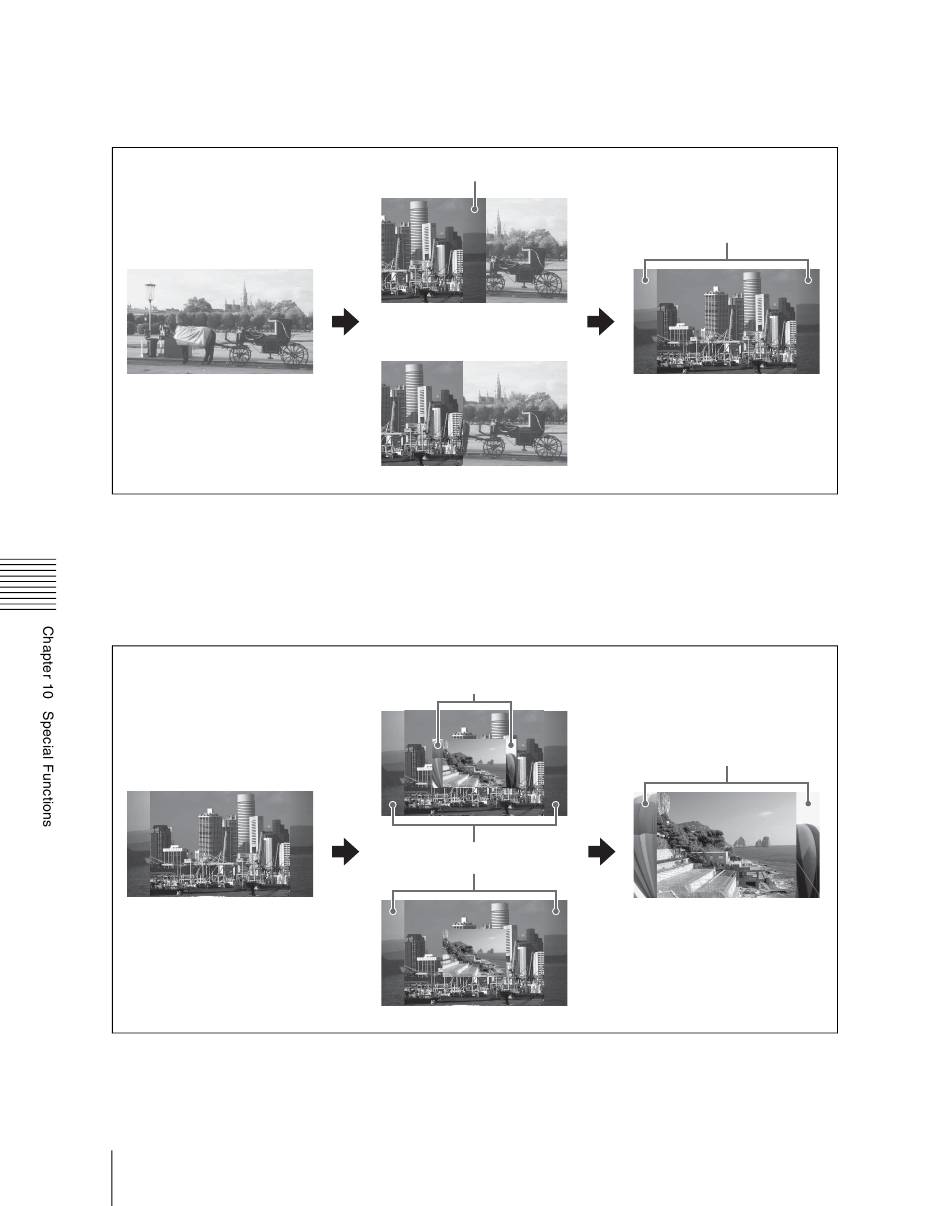

Side Flags
Side flag area
Auto crop off
Auto crop on
a)
Side flag areas
Auto crop off
Side flag areas
Auto crop on
Side flag areas
4:3 image (Side flags on)
Side flag areas
4:3 image (Side flags on)
