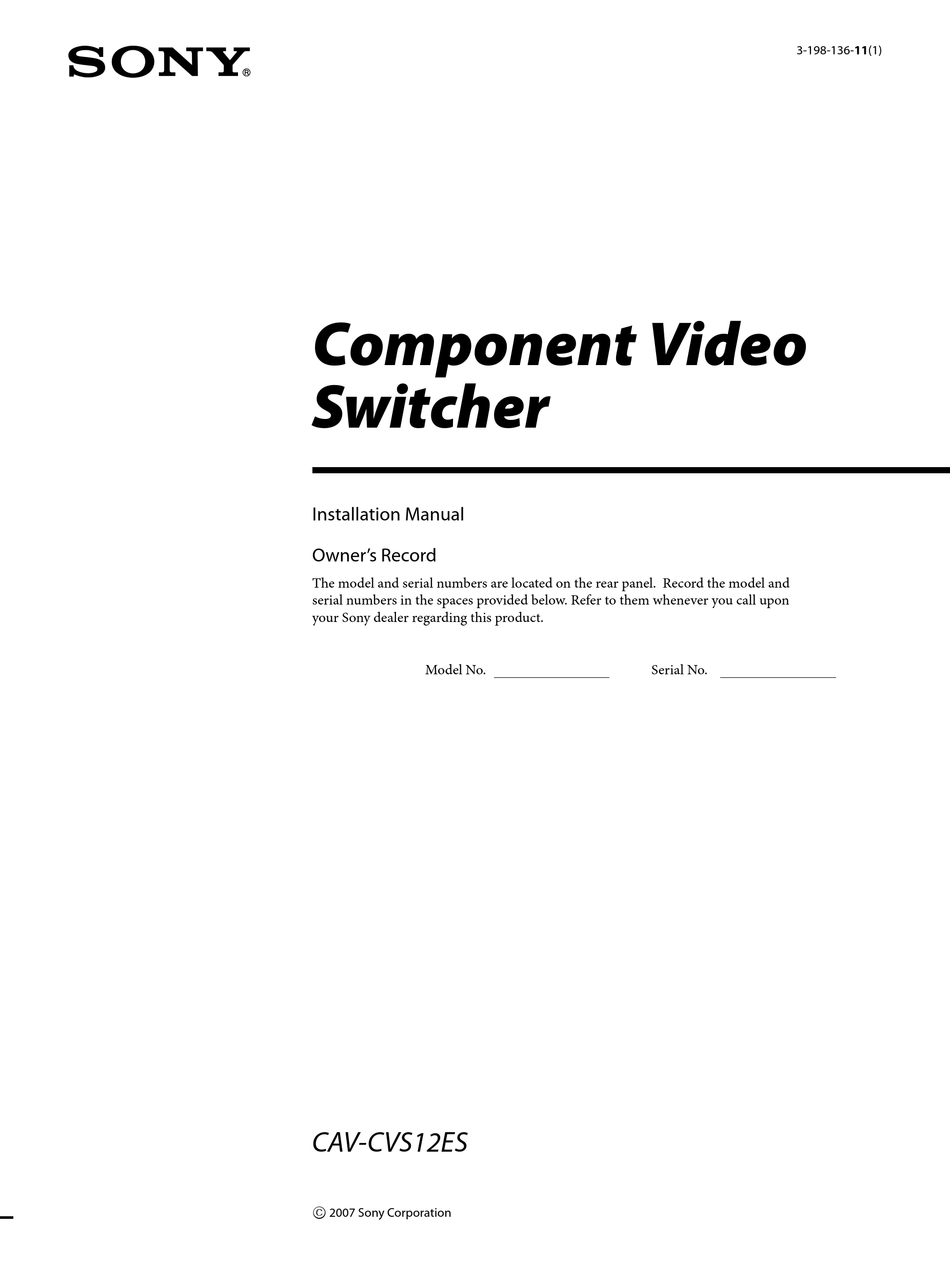

3-198-136-11(1)
Component Video
Switcher
Installation Manual
Owner's Record
The model and serial numbers are located on the rear panel. Record the model and
serial numbers in the spaces provided below. Refer to them whenever you call upon
your Sony dealer regarding this product.
Model No.
Serial No.
CAV-CVS12ES
2007 Sony Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sony CAV-CVS12ES
Summary of Contents for Sony CAV-CVS12ES
- Page 1 Owner’s Record The model and serial numbers are located on the rear panel. Record the model and serial numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. Serial No.
- Page 2 WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To reduce the risk of fire or electric shock, do not place objects filled with liquids, such as vases, on the apparatus.
-
Page 3: Table Of Contents
able of onTenTs Chapter 1 Getting Started Features 4 Unpacking 5 Parts and Controls 6 Chapter 2 Setting up the Component Video Switcher Installing the Component Video Switcher 8 Hooking up the Component Video Switcher 10 Chapter 3 Other Information Precautions 12 Troubleshooting 13 Specifications 14... -
Page 4: Getting Started
Chapter 1 Getting Started This chapter provides information on the features, parts, and controls of the Component Video Switcher. Features You can control up to twelve video sources in up to twelve zones (e.g., rooms or areas) with this CAV-CVS12ES Component Video Switcher. -
Page 5: Unpacking
Unpacking The CAV-CVS12ES Component Video Switcher includes the following: CAV-CVS12ES Component Video Switcher AC power cord Installation Manual (this manual) Rack-mount brackets (2) -
Page 6: Parts And Controls
Parts and Controls Front panel of the Component Video Switcher POWER POWER switch Press to turn the power on or off. ZONE indicator The selected zone number lights up. ZONE selector Turn to select the zone. Each time you turn the ZONE selector, the zone changes cyclically as shown below. - Page 7 Rear panel of the Component Video Switcher SOURCE 1 SOURCE 2 SOURCE 3 SOURCE 4 VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 SOURCE 1 ~ 8 connection jacks a) VIDEO IN An RCA jack for component video input from a source component.
-
Page 8: Setting Up The Component Video Switcher
Chapter 2 Setting up the Component Video Switcher This chapter provides information on the Component Video Switcher regarding installation, hookups and settings. Installing the Component Video Switcher When installing the Component Video Switcher, note the following: Place the Component Video Switcher on a flat and level surface. - Page 9 Using rack-mount brackets You can also mount the Component Video Switcher into a rack. Make sure that you measure the space needed before mounting. 1 Detach the four feet of the Component Video Switcher. 2 Detach the six screws attached to the Component Video Switcher as shown below. Screws 3 Install the rack-mount brackets onto the Component Video Switcher with the six screws detached in step 2 as shown below. Make sure that the rack-mount brackets are installed securely.
-
Page 10: Hooking Up The Component Video Switcher
Hooking up the Component Video Switcher Before hooking up the Component Video Switcher, be sure the AC power cord is unplugged. Refer to the illustration below for the connection. Component Video Audio/Video Source 1 ~ 8 Composite Audio/Video Video Source 9 ~ 12 (VHS, etc.) CAV-CVS12ES Audio L/R Audio L/R CAV-M1000ES CAV-M1000ES ... - Page 11 CAT5 RJ45 Video Pinout The CAT5 RJ45 pinouts use the T568B standard. Refer to the illustration below. CAT5 cable Before installation, be sure to verify the CAT5 wiring connection is correct. Use Category 5e or Category 6 cable. CAT5 cable Pinout ...
-
Page 12: Other Information
Do not use the system until the moisture evaporates, otherwise it may cause a malfunction. If you have any questions or problems concerning the Component Video Switcher, please consult your nearest Sony dealer. -
Page 13: Troubleshooting
If you experience any of the following difficulties while using the Component Video Switcher, use this troubleshooting guide to help you to remedy the problem. Should any problem persist, consult your nearest Sony dealer. There is no picture, or an unclear picture appears on the TV screen or monitor. -
Page 14: Specifications
Specifications Video input 1.0Vp-p/75 ohm 0.7Vp-p/75 ohm 0.7Vp-p/75 ohm Video output CAT5 RJ45 output General IR input: accept 40 kHz IR modulation frequency Power requirements: 120 V AC, 60 Hz Power consumption: 33 W Operating temperature: 0°C to 40°C (32°F to 104°F) Dimensions: 435 ... - Page 16 Sony Corporation Printed in Malaysia...
