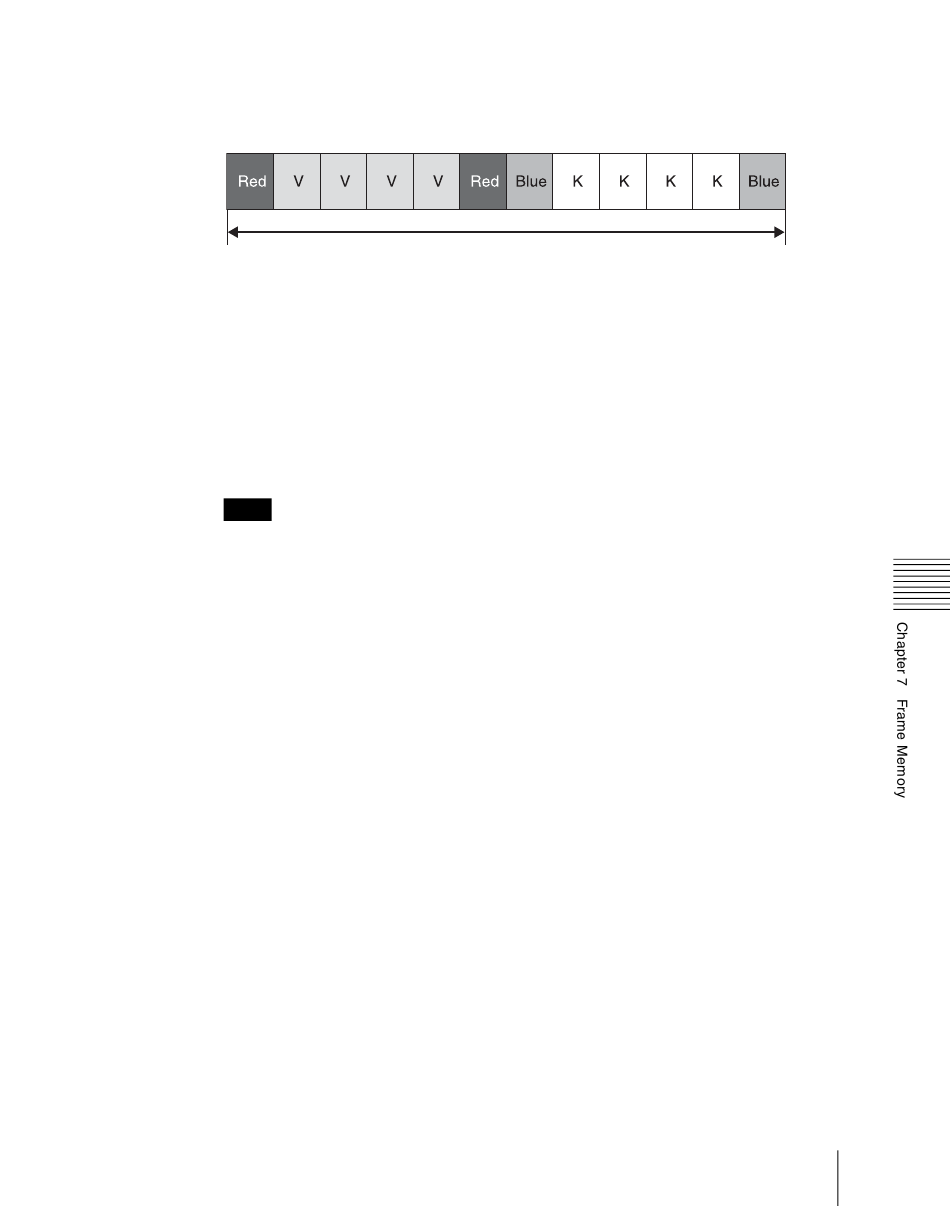

Example 2: When a video signal clip is followed by a key signal clip
with the same number of frames (pair file)
V: video K: key Red: red marker frame
Result of extraction:
The section surrounded by red marker frames is extracted as the main file, and
the section surrounded by blue marker frames is extracted as the sub file.
In the case above, one clip file (pair file) is extracted.
a) A red marker frame is a monochrome frame with the RGB signal levels respectively 100%, 0%,
0%.
b) A blue marker frame is a monochrome frame with the RGB signal levels respectively 0%, 0%,
100%.
Notes
• For extraction as a pair file, the main file and sub file must have the same
number of frames.
• For image extraction as an extended clip, [Ext Clip] must be selected in the
Record menu <Record Enable> group when the video tape content is
recorded as a clip.
• For image extraction as still images, [Clip] must be selected in the Record
menu <Record Enable> group when the video tape content is recorded as a
clip.
• When the operation mode is Dual Simul, this function is not available.
1
In the Frame Memory >Clip >Record menu, record the tape image as a
clip.
For details, see "Using the menu to record clips" (page 401).
2
In the Frame Memory menu, select VF4 'File' and HF2 'Auto Extraction.'
The Auto Extraction menu appears.
3
Select a clip (single file) recorded from the tape.
4
Press [Extraction Start].
A confirmation popup window appears.
5
Press [Yes].
a)
Blue: blue marker frame
Video tape
Managing Images Using a DDR/VTR
b)
423
