Ground Connection, Grounding

Ensure sufficient grounding of the target, for example, by connecting it to the sensor or the power supply ground.
If necessary, use the grounding connection on the housing cover. The grounding connection is included in the
conversion kit supplied in the scope of delivery.
Non-contact target grounding
Grounding the target is very difficult or even impossible in many applications. Unlike common systems, the target
does not need to be grounded if two DL62xx demodulators are synchronized.

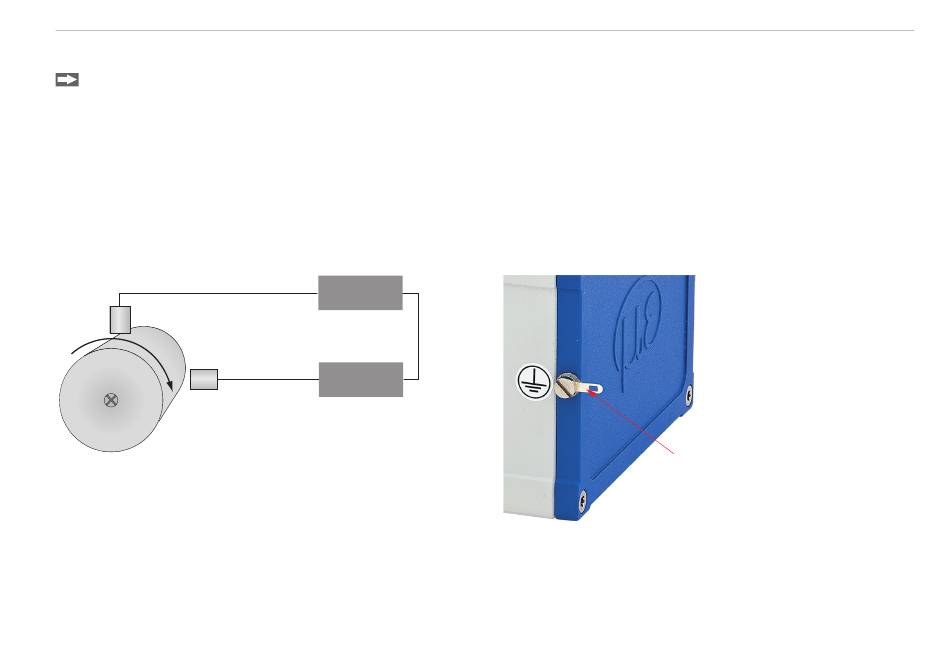

The schematic diagram below shows two synchronized capaNCDT sensors that measure against a roll. Since the sen-
sors are connected by MICRO-EPSILON's unique synchronization technology, grounding of the target is not required
in most cases.
Sensor
Sensor
Position and imbalance measurement with two measure-
ment systems
Target grounding is not required with synchronized capaNCDT sensors by Micro-Epsilon.
capaNCDT 6220/6222/6230
Controller
sync.
Controller
1
Grounding connection on the housing cover (1)
