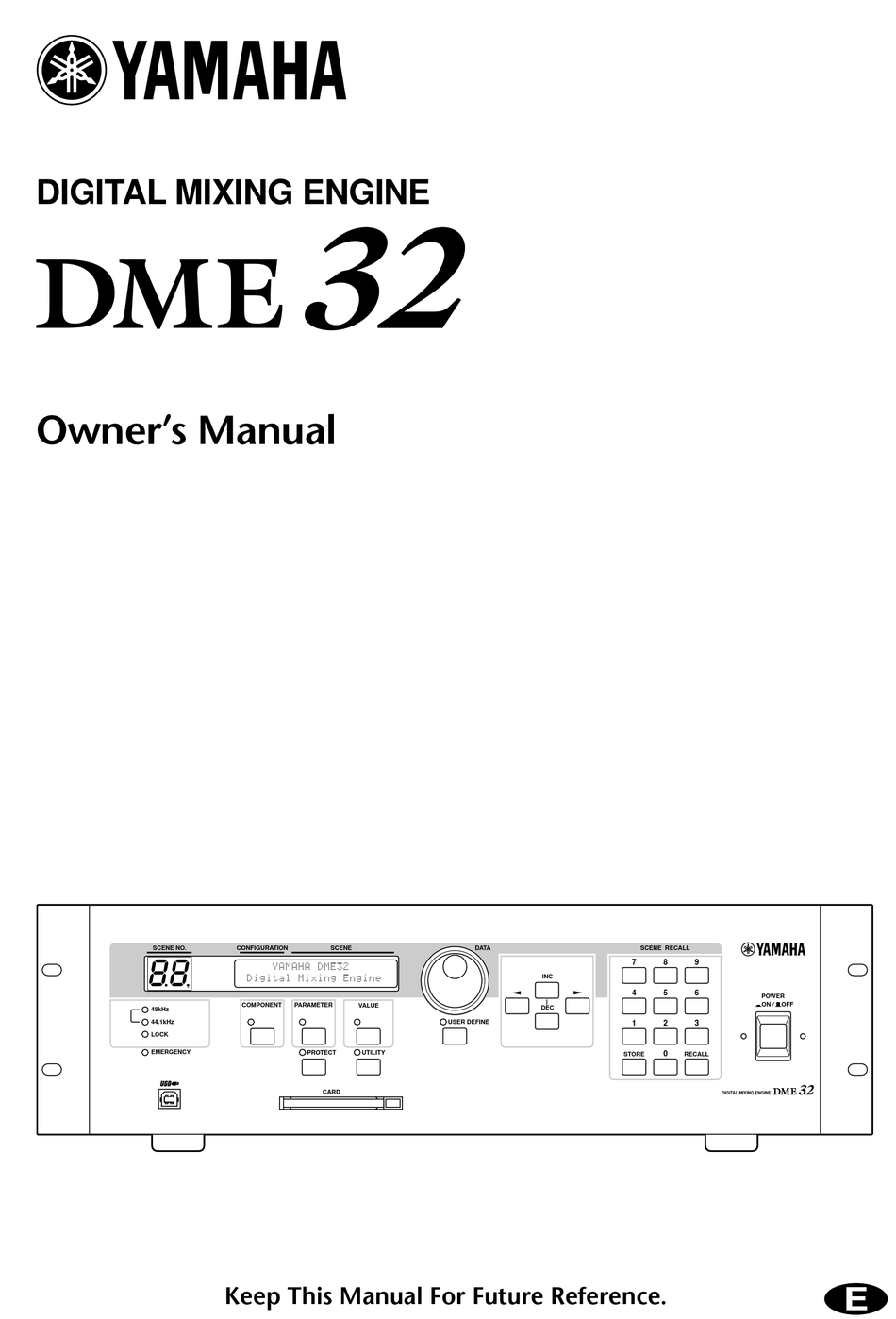

DIGITAL MIXING ENGINE
Owner's Manual
SCENE NO.
88
48kHz
44.1kHz
LOCK
EMERGENCY
CONFIGURATION
SCENE
XXXXXYAMAHAXDME32
XDigitalXMixingXEngine
COMPONENT
PARAMETER
VALUE
PROTECT
UTILITY
CARD
Keep This Manual For Future Reference.
DATA
INC
DEC
USER DEFINE
SCENE RECALL
7
8
9
4
5
6
POWER
ON
OFF
1
2
3
0
STORE
RECALL
DIGITAL MIXING ENGINE
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DME32 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamaha DME32

  • Page 1 DIGITAL MIXING ENGINE Owner’s Manual SCENE NO. CONFIGURATION XXXXXYAMAHAXDME32 XDigitalXMixingXEngine COMPONENT 48kHz 44.1kHz LOCK EMERGENCY Keep This Manual For Future Reference. SCENE DATA PARAMETER VALUE USER DEFINE PROTECT UTILITY CARD SCENE RECALL POWER STORE RECALL DIGITAL MIXING ENGINE...
  • Page 2 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA 90620 The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.
  • Page 3: Important Information

    • Do not subject the DME32 to extreme temperatures, humidity, direct sunlight, or dust, which could be a potential fire or electrical shock hazard. • Do not allow water to enter the DME32 or allow it to become wet. Fire or electrical shock may result.
  • Page 4 • Turn off all audio equipment when connecting to the DME32, and use only the cables specified in the relevant owner’s manuals. • If you plan not to use the DME32 for a long period of time, remove the power cord from the AC outlet. Leaving the DME32 connected is a potential fire hazard.
  • Page 5: Package Contents

    All other trademarks are the property of their respective holders and are hereby acknowledged. Copyright No part of the DME32 or DME Manager software or this Owner’s Manual may be reproduced or distributed in any form or by any means without the prior written authorization of Yamaha Corporation.
  • Page 6: Table Of Contents

    Connecting the Power Cord ........11 Turning On & Off the DME32 ....... . 11 Installing DME Manager .
  • Page 7 Compiling Configurations ........61 Sending Configurations to the DME32 ......62 Receiving Configurations from the DME32 .
  • Page 8 Wordclocks & the DME32 ........228...
  • Page 9 I/O Options & the DME32 ........
  • Page 10: Welcome

    The DME32 in a Nutshell ........
  • Page 11: The Dme32 In A Nutshell

    Entire systems from input through to output can be designed using DME Manager and then transferred to the DME32, which can then be used as a standalone processor. Typical applications include installed sound systems, submixing, loud- speaker system controllers, matrix/routing, and multi-effects processing.
  • Page 12: The Dme32 In A Nutshell

    Unautho- rized operation can be prevented by using the password protection. The DME32 offers 32 inputs and 32 outputs via four mini YGDAI card slots. Optional mini YGDAI (Yamaha General Digital Audio Interface) cards offer a variety of analog and digital I/O configurations, with support for all the popular digital audio intercon-...
  • Page 13: Dme32 Features

    • Optional mini YGDAI cards offer a variety of analog and digital I/O configurations, with support for all the popular digital audio interconnect formats, including AES/EBU, ADAT, and Tascam TDIF-1. • Analog I/O options include the Yamaha AD824 8-channel 24-bit A/D converter and DA824 8-channel 24-bit D/A converter Control Ports •...
  • Page 14: Standalone Operation

    Standalone Operation • DME Manager can be disconnected once the DME32 has been programmed • Dedicated keypad for scene store and recall • Data wheel and INC/DEC buttons for component parameter editing • Assignable [USER DEFINE] button for quick parameter access Others •...
  • Page 15: Dme Manager Features

    Run mode • Real-time control using DME Manager • Edit component parameters, recall and store scenes, and recall configurations • Actions performed on DME Manager are reflected on the DME32 and vice versa Offline Operation • Build and edit configurations off-site •...
  • Page 16: Other Features

    DME32 is mounted in a portable rack case, keep the rear of the case open when using the DME32 so as not to obstruct the free flow of air. Do not mount the DME32 above equipment that produces a lot of heat, such as a power amplifier.
  • Page 17: Getting Started

    Turning On & Off the DME32 ........
  • Page 18: First Steps

    Chapter 2—Getting Started First Steps Here’s how to get up and running with the DME32 system with the minimum of fuss. Familiarize yourself with the DME32. See “Touring the DME32” on page 15. Install the required mini YGDAI I/O cards.
  • Page 19: Connecting The Power Cord

    Important: You need to install the USB driver in order to use the USB port. See page 13. The front panel USB port is a convenient way to connect a PC to the DME32 and is ideal for systems where the DME32 rear panel is not easily accessible.
  • Page 20: Installing Dme Manager

    Turn on your PC and, if it’s not running already, start Windows. The PC does not need to be connected to the DME32 in order to install DME Manager. Insert the DME32 CD-ROM disc into your CD-ROM or DVD-ROM drive.
  • Page 21: Quitting Dme Manager

    DME Manager starts up in Edit mode. If no DME32s are detected, the message “DME32 not found!” appears. In this case you can click OK to continue using DME Manager offline in Edit mode. If a DME32 becomes avail- able after DME Manager was started, a message asking whether or not you want to receive the configuration data appears.
  • Page 22: Checking The Driver Is Installed Correctly

    USB Operating Notes If you turn on or off the power to the DME32, or connect or disconnect the USB cable under the following conditions, your computer may freeze, or some of the DME32 functions may be disabled: •...
  • Page 23: Touring The Dme32

    Touring the DME32 Touring the DME32 In this chapter... Front Panel ............16 Rear Panel .
  • Page 24: Front Panel

    Chapter 3—Touring the DME32 Front Panel SCENE NO. CONFIGURATION COMPONENT PARAMETER 48kHz 44.1kHz LOCK EMERGENCY SCENE NO. indicator This 2-digit display shows the number of the current scene memory. The number flashes when a different scene memory is selected and stops flashing if that scene mem- ory is recalled or stored.
  • Page 25: Rear Panel

    See “Emergency Mode” on page 220 for more information. USB port This USB port is used to connect the DME32 to a Windows PC and provides a conve- nient alternative to the PC CONTROL port on the rear panel. See “Connecting to a PC”...
  • Page 26 ( POWER switch This switch is used to turn on the power to the DME32. See “Turning On & Off the DME32” on page 11 for more information. There are two M3 screw holes above and below the POWER switch, 34 mm apart, for attaching a protective cover.
  • Page 27: Rear Panel

    PC” on page 10 for more information. PC CONTROL port This 9-pin D-sub connector is used to connect the DME32 to the serial port on a Win- dows PC. See “Connecting to a PC” on page 10 for more information.
  • Page 28: Ground Terminal

    AC outlet is grounded, then the DME32 will be grounded adequately via the power cord. If the AC outlet does not have a suitable ground terminal, a ground connection should be made to this ground terminal.
  • Page 29: Touring Dme Manager

    Keyboard Shortcuts ..........42 DME32—Owner’s Manual...
  • Page 30: Modes

    See “Adding Wires” on page 51 for more information. Run Mode Run mode is used to control the DME32 system in real time, which includes editing component parameters, storing and recalling scenes, and recalling configurations. In Run mode, actions performed on DME Manager are reflected on the DME32 and vice versa.
  • Page 31: Main Window

    When an unsaved configuration window is selected, the title bar appears as follows. When the window for a configuration stored in the DME32 is selected, the configura- tion title is prefixed with the letter “A” or “B,” as shown below.
  • Page 32 This button cycles through the Zoom settings: 25%, 50%, 75%, 100%, 150%. See “Zooming Configuration Windows” on page 50 for more information. Align This button aligns all components to the grid. See “Aligning Components to the Grid” on page 49 for more information. DME32—Owner’s Manual...
  • Page 33: Status Bar

    Operation. See “Using Password Protection” on page 83 for more information. DME32 Status This section displays which configuration is currently selected on the DME32: “Config A” or “Config B.” If no DME32 is available, “Offline” appears. Main Window...
  • Page 34: Configuration Windows

    They can also be scrolled using the horizontal and vertical scroll bars. Windows can also be controlled using the com- mands in the control menu, which is accessed by clicking the program icon in the upper-left corner of the configuration window. DME32—Owner’s Manual...
  • Page 35 The DSP power meter displays the approximate amount of DSP processing power used by the configuration. There is one meter in each section of the configuration window, one for each DME32. Each meter starts at 0% and gradually rises as components are added. When the meter reaches 100%, all the DSP processing power has been used up and no more components can be added.
  • Page 36 You can zoom in to see components in detail or zoom out to see more of a configuration by using the Zoom command. The following configuration window shows a configu- ration zoomed to 150%. See “Zooming Configuration Windows” on page 50 for more information. DME32—Owner’s Manual...
  • Page 37 Configuration Windows Window Sections Each configuration window is divided into four sections, one for each DME32. Sections can be resized by dragging the boundary lines shown below. See “Resizing Sections of the Configuration Window” on page 59 for more information.
  • Page 38: Components

    Chapter 4—Touring DME Manager Components Components are the building blocks for constructing DME32 audio systems. Some components consist of complete audio processors, such as mixers, compressors, effects, and crossovers, while others are individual parts, such as faders, switches, pan controls, and meters.
  • Page 39: Component Control Windows

    Control window items are operated by using the mouse, and can be adjusted by drag- ging, as in the case of rotary controls and sliders, or by clicking, if it’s a button or pop-up menu. When Cable mode is selected, the cursor changes to the cable tool, as shown below. DME32—Owner’s Manual...
  • Page 40: Rotary Controls

    Like most programs, DME Manager features buttons that are used to execute and con- firm functions, such as Save, OK, Cancel, and Enter. In addition to these, DME Man- ager also uses buttons to turn functions and parameters on and off. DME32—Owner’s Manual Value up Right...
  • Page 41: Run Mode Controller

    Run Mode Controller The Run Mode Controller appears when Run mode is selected. It’s used to recall DME32 configurations and to store and recall scenes. See “Run Mode Controller” on page 67 for more information. Other Windows...
  • Page 42: Touring The Menus

    Saves the current configuration Saves the current configuration under a new name Closes the current configuration Prints the current configuration Sets up the printer Sends and receives DME32 configurations Opens the Scene Make window Compiles the current configuration Quits DME Manager See page...
  • Page 43: Edit Menu

    The Mode menu is used to select the Run, Edit, and Cable modes. Command Selects Run mode Edit Selects Edit mode Cable Selects Cable mode Touring the Menus Description Description DME32—Owner’s Manual See page 48, 51 48, 56 See page...
  • Page 44: View Menu

    Protection, and access to the Tool Palette. Command User Define Button MIDI Word clock Tool Palette Protection DME32—Owner’s Manual Description Zooms the configuration window 150%, 100%, 75%, 50%, 25% Opens the Grid window Description Opens the User Define window Opens the GPI window...
  • Page 45: Component List

    See page 47 for information on adding components to configurations. See “Component Guide Part I” on page 89 and “Component Guide Part II” on page 141 for detailed information on all the components. Touring the Menus Description DME32—Owner’s Manual See page...
  • Page 46: Window Menu

    The configuration windows corresponding to the configurations in the DME32 are prefixed with the letters “A” and “B.” The currently running configuration is prefixed with the word “Running.” Also listed are configura- tion titles and current scenes and titles.
  • Page 47: Shortcut Menu

    Aligns all components to the grid Delete Deletes the selected component or wire Opens the Properties window for the selected compo- Properties nent Module Opens the Module window Touring the Menus Description DME32—Owner’s Manual See page 48, 51 48, 56...
  • Page 48: Component List

    To hide the individual component list, click the minus (–) symbol. The individual components within the group are hidden and the minus (–) symbol changes back to a plus (+) symbol. To close the Component List, click the Close button in the upper-right corner. The Component List closes. DME32—Owner’s Manual...
  • Page 49: Tool Palette

    The Alt menu offers a convenient method of selecting the Run, Edit, and Cable modes. Press the Alt key. The Alt menu appears, as shown below. Choose a mode and then click. Command Selects Run mode Edit Selects Edit mode Cable Selects Cable mode Tool Palette Description Description DME32—Owner’s Manual See page See page...
  • Page 50: Keyboard Shortcuts

    Chapter 4—Touring DME Manager Keyboard Shortcuts File Menu Open Save Print Edit Menu Undo Copy Paste Duplicate DME32—Owner’s Manual Ctrl+N Ctrl+O Ctrl+S Ctrl+P Ctrl+Z Ctrl+X Ctrl+C Ctrl+V Ctrl+D...
  • Page 51: Building Configurations

    Compiling Configurations ......... 61 Sending Configurations to the DME32 ....... 62 Receiving Configurations from the DME32 .
  • Page 52: Selecting Edit Mode

    Save the configuration. See “Saving Configurations” on page 60. Transfer the configuration to the DME32. See “Sending Configurations to the DME32” on page 62. Take the system for a run, creating scenes as necessary. See “Running the System” on page 65.
  • Page 53: Selecting Edit Mode

    Choose New from the File menu. A new configuration window opens. New configuration windows are automatically assigned a numbered title, starting with “Configuration1,” Configuration2,” and so on. When a configuration is saved, its title changes to the name specified. Selecting Edit Mode DME32—Owner’s Manual...
  • Page 54: Opening Saved Configurations

    On the Window menu, the title of the current configuration window has a check mark next to it. The configuration windows corresponding to the configurations in the DME32 are prefixed with the letters “A” and “B.” The currently running configuration is prefixed with the word “Running.”...
  • Page 55: Adding Components

    The component is added to the configuration, as shown below. Add the other components necessary to complete the configuration. In addition to using the Component menu, components can be added by dragging them from the Component List. See “Component List” on page 40. Adding Components DME32—Owner’s Manual...
  • Page 56: Editing Components

    • Components can be deleted by using the Delete command, which appears in both the Edit and Shortcut menus. • Component appearance, size, color, title, and so on, can be customized. See “Custom- izing Component Properties” on page 80. DME32—Owner’s Manual...
  • Page 57: Aligning Components To The Grid

    Turns the grid on and off. When on, the grid appears in the configuration window. Turns snap to grid on and off. When on, compo- nents snap to the grid when they are added or moved. Sets the horizontal grid spacing Sets the vertical grid spacing DME32—Owner’s Manual...
  • Page 58: Zooming Configuration Windows

    In the Zoom menu, the currently selected zoom setting has a check mark next to it, as shown below. The following configuration window shows a configuration zoomed to 150%. DME32—Owner’s Manual...
  • Page 59: Selecting Cable Mode

    See “Selecting Cable Mode” on page 51. Position the cable tool over the first node. A small box appears around the node, as shown below. Drag the wire to the second node, as shown below. Selecting Cable Mode DME32—Owner’s Manual...
  • Page 60 A small box appears around the second node, as shown below. Drop the wire onto the node. The wire appears between the two nodes, as shown below. The last wire addition can be undone by using the Undo command, which appears in both the Edit and Shortcut menus. DME32—Owner’s Manual...
  • Page 61 Position the cable tool behind the nodes on the component, as shown below. Click and drag, as shown below. Drop the wires behind the nodes on the other component, as shown below. The wires appear between the nodes, as shown below. Adding Wires DME32—Owner’s Manual...
  • Page 62 Small boxes appear around the selected nodes, as shown below. Drag any one of the selected nodes to the top node of the other component, as shown below. A small box appears around the top node, as shown below. DME32—Owner’s Manual...
  • Page 63 Adding Wires Drop the wires onto the top node. The wires appear between the nodes, as shown below. DME32—Owner’s Manual...
  • Page 64: Deleting Wires

    Position the cable tool over the wire to be deleted, as shown below. The wire appears highlighted. Choose the Delete command from the Edit or Shortcut menu. The Shortcut menu is shown below. The wire is deleted, as shown below. DME32—Owner’s Manual...
  • Page 65 Multiple wires can also be selected by holding down the Shift key and selecting with the mouse. Choose the Delete command from the Edit or Shortcut menu. The Shortcut menu is shown below. The wires are deleted, as shown below. Deleting Wires DME32—Owner’s Manual...
  • Page 66: Working With Multiple-Unit Configurations

    Sections can be resized as required. See “Resizing Sections of the Configuration Window” on page 59 for more information. Components for each DME32 are placed in the corresponding section of the configu- ration window. Components cannot be placed on boundary lines nor can they be dragged between sections.
  • Page 67: Resizing Sections Of The Configuration Window

    The individual sections of the configuration window can be resized as follows. Position the cursor over a boundary line. The cursor changes to the resize arrows, as shown below. Drag the boundary to its new position, as shown below. Resizing Sections of the Configuration Window DME32—Owner’s Manual...
  • Page 68: Saving Configurations

    Windows operating system. If your PC supports PC Cards, configurations can be saved to a PC Card and then loaded into the DME32 via its card slot. Note that configurations must be compiled before they can be saved. See “Compiling Configurations”...
  • Page 69: Compiling Configurations

    Configurations must be compiled and transferred to the DME32 each time any changes are made to the configuration, or when any of the following settings are changed: User Define, GPI, Wordclock, or Parameter Link.
  • Page 70: Sending Configurations To The Dme32

    See “Compiling Configurations” on page 61. When a configuration is sent to the DME32, all its scenes are sent as well. Note: When a configuration is sent to the DME32, sound may be output suddenly, depending on the system, so turn down the D/A converters or power amps beforehand.
  • Page 71: Receiving Configurations From The Dme32

    From the List, select the DME32 configuration you want to receive. The List shows the titles of the configurations stored in the DME32. The title of the cur- rent configuration has a green indicator next to it. If no data is stored in a memory, the title “NO DATA”...
  • Page 72: Running The System

    Recalling Configurations ......... . . 74 DME32—Owner’s Manual...
  • Page 73: Selecting Run Mode

    [USER DEFINE] button has been assigned, in which case, the parameter assigned to that button is selected and the USER DEFINE indicator lights up. This is the same as what happens when the DME32 is turned on without DME Manager connected.
  • Page 74: Run Mode Controller

    The Run Mode Controller, which appears automatically when Run mode is selected, is used to recall DME32 configurations and to store and recall scenes just like using the DME32 front panel. It appears only when Run mode is selected and cannot be accessed from the menus or elsewhere.
  • Page 75: Scene Control

    When a scene is stored, “EDIT” disap- pears. This operates in exactly the same way as the scene edit dots on the DME32 dis- play. See “Front Panel” on page 16 for more information.
  • Page 76: Editing Component Parameters

    The DME32 display shows one parameter at a time. If the currently selected parameter on the DME32 is the same as the one you are editing on DME Manager, you’ll see its value change on the display. Likewise, if you edit a parameter value from the DME32 front panel, you’ll see its value change on the corresponding control window.
  • Page 77: Storing Scenes

    Chapter 6—Running the System Storing Scenes In Run mode, scenes can be stored from the DME32 front panel (see page 199) or from DME Manager. Either way, the store is reflected on both the DME32 and DME Man- ager. This section explains how to store DME32 scenes from DME Manager.
  • Page 78 DME32 display. Click OK. The Title Edit window closes and the selected scene is stored on the DME32. The num- ber and title of the scene appears on the DME32 display, the Run Mode Controller, and the Scene List. The stored scene becomes the current scene and its number and title appear in the configuration window’s title bar.
  • Page 79: Recalling Scenes

    Chapter 6—Running the System Recalling Scenes In Run mode, scenes can be recalled from the DME32 front panel (see page 200) or from DME Manager. Either way, the recall is reflected on both the DME32 and DME Manager. This section explains how to recall DME32 scenes from DME Manager.
  • Page 80 Click Recall. The selected scene is recalled on the DME32 and the component parameters are set accordingly. The number and title of the scene appears on the DME32 display and the Run Mode Controller. The recalled scene becomes the current scene and its number and title appear in the configuration window’s title bar.
  • Page 81: Recalling Configurations

    In Run mode, configurations can be recalled from the DME32 front panel (see page 198) or from DME Manager. Either way, the recall is reflected on both the DME32 and DME Manager. This section explains how to recall DME32 configurations from DME Manager.
  • Page 82: Other Dme Designer Functions

    Printing ............87 DME32—Owner’s Manual...
  • Page 83: Editing Scenes Offline

    To edit a scene’s title, select it from the list and then click Title Edit. Alternatively, double-click the scene in the list. The Title Edit window appears, as shown below. Only scenes that contain data can be titled. DME32—Owner’s Manual...
  • Page 84 The Offline Edit window closes. To save your scene edits, save the configuration as normal. You must transfer the configuration to the DME32 for the scene edits to take effect. See “How to Build & Edit Configurations” on page 44 for more information.
  • Page 85: Linking Component Parameters

    The number of the selected group appears in the upper-left corner of the window. The Components section lists all the components in each section of the configuration win- dow (i.e., the components for each DME32) and the Parameters section lists all the parameters available for that component.
  • Page 86 Parameter Link window. You must compile and transfer the configuration to the DME32 for the parameter links to take effect. See “How to Build & Edit Configurations” on page 44 for more informa- tion.
  • Page 87: Customizing Component Properties

    Make the required settings and then click OK to save your settings, or click Cancel to leave them unchanged. The Properties window closes and the component appears in accordance with the Properties settings. DME32—Owner’s Manual Parameter Height Sets the height of the component...
  • Page 88 User Module tab appears in addition to the General tab, as shown below. The User Module parameters are explained in the following table. Section Parameter Range Input 0–16 Component Nodes Output 0–16 Customizing Component Properties Description Sets the number of input nodes Sets the number of output nodes DME32—Owner’s Manual...
  • Page 89: Changing The Size Of Rotary Controls & Sliders

    Select a size and then click OK to save your settings, or click Cancel to leave them unchanged. The Properties window closes and the control appears at the selected size. Examples of large and small rotary controls and sliders are shown below. DME32—Owner’s Manual...
  • Page 90: Using Password Protection

    The Protection function is for use mainly in Run mode, when DME Designer is used to control the DME32, and can be used to restrict component parameter editing or to pre- vent any operation whatsoever. Three levels of protection are available: full access, lim- ited access, and no access.
  • Page 91: Setting The Passwords

    On the protection window, enter the new password and click OK. You’ll be asked to enter the old password and then the new password. If you enter them correctly, the new password is set and the Protection window closes. DME32—Owner’s Manual...
  • Page 92: Deleting Passwords

    Then click OK. You’ll be asked to enter the old password. If you enter it correctly, the password is deleted and the Protection window closes. Forgotten Passwords? If you forget a password, enter “OVERRIDE” in order to bypass the protection func- tion. DME32—Owner’s Manual...
  • Page 93: Assigning The User Define Button

    User Define Button window. You must compile and transfer the configuration to the DME32 for the User Define Button settings to take effect. See “How to Build & Edit Configurations” on page 44 for more information.
  • Page 94: Printing

    “Selected components” and information about the selected components is printed. Prints the configuration diagram: all components or selected components only Prints a list of the selected components Prints a list of the selected component’s parameters and their settings DME32—Owner’s Manual...
  • Page 95: Component Guide Part I

    Dynamics ............125 DME32—Owner’s Manual...
  • Page 96: Automatic Mixer

    Since the only difference between all the Auto Mixer components is the number of inputs, only the 4 Channel Auto Mixer control window is shown here. Each Auto Mixer control window features input channels and a master output section. When a channel is soloed, “SOLO OFF” changes to “SOLO ON.” DME32—Owner’s Manual...
  • Page 97 Adjusts the closing speed of each gate Adjusts the hold time of each gate Inverts each input channel signal Solos each input channel Mutes each input channel Adjusts the input level of each channel Mutes the output Adjusts the output level DME32—Owner’s Manual...
  • Page 98: Cascade

    DME32. In the following example, Cascade channel #1 is used to distribute input signal #1 of DME32 #1 to a 31-band GEQ in DME32 #1 and a 2-way crossover in DME32 #2. DME32—Owner’s Manual...
  • Page 99: Crossover

    SLOPE & TYPE set to 12 dB/oct Adjustable Gc, 24 dB/oct Adjustable Gc, or 48 dB/oct Adjustable Gc, and Gc set to –6 dB, the filter is practically a Linkwitz-Riley filter. With Gc settings greater than –3 dB, boost occurs around the cutoff frequency. DME32—Owner’s Manual...
  • Page 100 A vertical dotted line indicates the crossover frequency of each channel: “L” for low and “H” for high. Note that the Gc controls (not shown here) appear only when an Adjustable Gc type SLOPE & TYPE filter is selected. DME32—Owner’s Manual...
  • Page 101 Sets the HIGH HPF filter slope and type Slope 12 dB/oct 24 dB/oct — — — — — — — — — — — — — — — — — — — — — Crossover Description 36 dB/oct 48 dB/oct — — — — DME32—Owner’s Manual...
  • Page 102 A vertical dotted line indicates the crossover frequency of each channel: “L” for low, “M” for mid, and “H” for high. Note that the Gc controls (not shown here) appear only when an Adjustable Gc type SLOPE & TYPE filter is selected. DME32—Owner’s Manual...
  • Page 103 Sets the MID LPF filter slope and type Mutes the HIGH output Inverts the HIGH output signal Adjusts the HIGH HPF cutoff frequency Adjusts the HIGH HPF gain at the cutoff frequency Sets the HIGH HPF filter slope and type Crossover DME32—Owner’s Manual...
  • Page 104 24dB/oct Adjustable Gc 24dB/oct Butterworth 24dB/oct Bessel 24dB/oct Linkwitz-Riley 36dB/oct Adjustable Gc 36dB/oct Butterworth 36dB/oct Bessel 48dB/oct Adjustable Gc 48dB/oct Butterworth 48dB/oct Bessel 48dB/oct Linkwitz-Riley DME32—Owner’s Manual Slope 12 dB/oct 24 dB/oct — — — — — — — —...
  • Page 105 A vertical dotted line indicates the crossover frequency of each channel: “L” for low, “ML” for low-mid, “MH” for high-mid, and “H” for high. Note that the Gc controls (not shown here) appear only when an Adjustable Gc type SLOPE & TYPE filter is selected. DME32—Owner’s Manual...
  • Page 106 Gc setting is ignored and the Gc value is fixed as follows: Butterworth and Bessel: –3 dB, Link- witz-Riley: –6 dB. 2. SLOPE & TYPE parameter values are listed in the following table. DME32—Owner’s Manual Range –Infinity dB to 0.0 dB Adjusts the input signal level...
  • Page 107 48dB/oct Bessel 48dB/oct Linkwitz-Riley Slope 12 dB/oct 24 dB/oct — — — — — — — — — — — — — — — — — — — — — Crossover 36 dB/oct 48 dB/oct — — — — DME32—Owner’s Manual...
  • Page 108: Crossover Processor

    The 2-Way Processor control window features INPUT, OUTPUT, and control sections, with DELAY, CROSS, EQ, and COMP pages selected by clicking the tabs along the top of the control window, as shown below. DME32—Owner’s Manual The 2-Way Processor component features one input and two outputs: High and Low.
  • Page 109 Sets the delay time in milliseconds (linked to control below) Sets the delay time in the units chosen using the DELAY SCALE buttons (linked to ms control) Turns the delay on and off Selects the delay units for the Sample controls DME32—Owner’s Manual...
  • Page 110 The crossover graph at the top of the window displays the crossover settings graphically. A vertical dotted line indicates the crossover frequency of each channel: “L” for low and “H” for high. DME32—Owner’s Manual Delay Scale FS = 48 KHz 0–24000 samples...
  • Page 111 48dB/oct Linkwitz-Riley Range 10.0–0.1 Adjusts the selectivity of each band 20.0 Hz–20.0 kHz Adjusts the frequency of each band –18 dB to +18 dB Adjusts the gain of each band ON/OFF Turns the EQ on and off Description DME32—Owner’s Manual...
  • Page 112 GAIN ON/OFF 1. 5 ms–42.3 sec (fs = 48 kHz), 6 ms–46.0 sec (fs = 44.1 kHz) See page 128 for more general information on compressor parameters. DME32—Owner’s Manual Range –54 dB to 0 dB Adjusts the threshold level 1:1 to Infinity:1...
  • Page 113 3-band Comp Range Description Mutes the input Mutes the low output Inverts the low output signal Mutes the mid output Inverts the mid output signal Mutes the high output Inverts the high output signal High Output Output Output DME32—Owner’s Manual...
  • Page 114 = 14˚C, 57.2˚F). The parameter ranges for the Samples, Meters, and Feet settings are as follows: Samples Meters Feet DME32—Owner’s Manual Range Sets the delay time in milliseconds (linked to 0.0–500.0 ms control below) Sets the delay time in the units chosen using...
  • Page 115 Adjusts the mid LPF gain at the cutoff frequency Selects the mid LPF filter slope and type Adjusts the high HPF cutoff frequency Adjusts the high HPF gain at the cutoff frequency Selects the high HPF filter slope and type DME32—Owner’s Manual...
  • Page 116 The EQ graph above each set of controls displays the EQ settings graphically. The EQ parameters for all channels are explained in the following table. Section LOW, MID, HIGH DME32—Owner’s Manual 18dB/oct Adjustable Gc 18dB/oct Butterworth 18dB/oct Bessel 24dB/oct Adjustable Gc 24dB/oct Butterworth...
  • Page 117 See page 128 for more general information on compressor parameters. Crossover Processor Description Adjusts the threshold level Adjusts the compression ratio Adjusts the Compressor’s “hardness” Adjusts the attack time Adjusts the release time Adjusts the output gain Turns the Compressor on and off DME32—Owner’s Manual...
  • Page 118 DELAY, CROSS, EQ 1, EQ 2, COMP 1, and COMP 2 pages selected by clicking the tabs along the top of the control window, as shown below. DME32—Owner’s Manual The 4-Way Processor component features one input and four outputs: High, High-Mid, Low-Mid, and Low.
  • Page 119 Mutes the input Mutes the low output Inverts the low output signal Mutes the low-mid output Inverts the low-mid output signal Mutes the high-mid output Inverts the high-mid output signal Mutes the high output Inverts the high output signal DME32—Owner’s Manual...
  • Page 120 The crossover graph at the top of the window displays the crossover settings graphically. A vertical dotted line indicates the crossover frequency of each channel: “L” for low, “ML” for low-mid, “MH” for high-mid, and “H” for high. DME32—Owner’s Manual Parameter Range 0.0–500.0 ms...
  • Page 121 Selects the high-mid LPF filter slope and type 20.0 Hz–20.0 kHz Adjusts the high HPF cutoff frequency –6 dB to +6 dB Adjusts the high HPF gain at the cutoff frequency Selects the high HPF filter slope and type Crossover Processor Description DME32—Owner’s Manual...
  • Page 122 The EQ parameters for all channels are explained in the following table. Section Parameter LOW, LOW-MID ON/OFF DME32—Owner’s Manual Range 10.0–0.1 Adjusts the selectivity of each band 20.0 Hz–20.0 kHz Adjusts the frequency of each band –18 dB to +18 dB...
  • Page 123 HIGH-MID, HIGH –18 dB to +18 dB ON/OFF ON/OFF Crossover Processor Range Description Adjusts the selectivity of each band Adjusts the frequency of each band Adjusts the gain of each band Turns each EQ channel on and off DME32—Owner’s Manual...
  • Page 124 GAIN ON/OFF 1. 5 ms–42.3 sec (fs = 48 kHz), 6 ms–46.0 sec (fs = 44.1 kHz) See page 128 for more general information on compressor parameters. DME32—Owner’s Manual Range –54 dB to 0 dB Adjusts the threshold level 1:1 to Infinity:1...
  • Page 125 See page 128 for more general information on compressor parameters. Crossover Processor Description Adjusts the threshold level Adjusts the compression ratio Adjusts the Compressor’s “hardness” Adjusts the attack time Adjusts the release time Adjusts the output gain Turns the Compressor on and off DME32—Owner’s Manual...
  • Page 126: Delay

    Enter key. The new value is set and the rotary controls move to their new positions. Section Parameter ON/OFF LEVEL INPUT MUTE DME32—Owner’s Manual Range ON/OFF Turns the component on and off –Infinity dB to 0.0 dB Adjusts the input signal level ON/OFF...
  • Page 127 Delay Scale window (linked to ms con- trol) Mutes each output Turns each delay on and off FS = 48 KHz 0.0–57600 samples 0.0–408.0 meters 0.0–1338.6 feet 0.0–35.96 frames 0.0–30.0 frames 0.0–28.8 frames 0.000–4.000 0.000–60.00 Delay FS = 44.1 kHz 0.0–52920 samples DME32—Owner’s Manual...
  • Page 128: Delayed Mixer

    OUT section, with fader and meter for each output channel. When a channel is soloed, “SOLO OFF” changes to “SOLO ON.” This is especially con- venient on control windows where the input channels are organized into pages and it’s not possible to see all SOLO buttons simultaneously. DME32—Owner’s Manual...
  • Page 129 Adjusts the delay time of each input chan- nel that is fed to each output channel Inverts each input channel signal Solos each input channel Mutes each input channel Mutes each output channel DME32—Owner’s Manual...
  • Page 130 Chapter 8—Component Guide Part I The following Delayed Mixers are available. Group DME32—Owner’s Manual Delayed Mixer Inputs 2x12 2x16 4x12 4x16 8x12 8x16 Outputs...
  • Page 131: Dynamics

    The Compander control window features a gain reduction (GR) meter, compander curve, output level meter, and compander controls. The Compander component features one input, one output, and a sidechain input. The Stereo Compander component features two inputs, two outputs, and a sidechain input. Dynamics DME32—Owner’s Manual...
  • Page 132 For a 2:1 ratio, for example, a 10 dB change in trigger level (above the threshold) results in a 5 dB change in output level. For a 5:1 ratio, a 10 dB change in trigger level (above the threshold) results in a DME32—Owner’s Manual Range ON/OFF...
  • Page 133 GAIN —This sets the Compander’s output signal level. It can be used to compensate for the overall level change caused by the compression and expansion processes. Dynamics Width –10 –20 Threshold –30 –40 –50 –60 –70 –70 –60 –50 –40 –30 –20 –10 Input Level (dB) DME32—Owner’s Manual...
  • Page 134 Compressor. The compressor curve displays the effect of the Compressor. The ver- tical axis corresponds to the output signal level, while the horizontal axis corresponds DME32—Owner’s Manual The Compressor component features one input, one output, and a sidechain input.
  • Page 135 Adjusts the attack time Adjusts the release time Adjusts the output gain Compression ratio = 20:1 –10 Threshold = –20dB –20 –30 –40 –50 –60 –70 –70 –60 –50 –40 –30 Input Level (dB) DME32—Owner’s Manual Knee = hard –20 –10...
  • Page 136 Release times from 0.1 to 0.5 seconds are a good place to start. GAIN —This sets the Compressor’s output signal level, and can be used to compensate for the overall level change caused by the compression process. DME32—Owner’s Manual...
  • Page 137 De-Esser. The de-esser curve displays the effect of the De-Esser. The vertical axis corresponds to the output signal level, while the horizontal axis corresponds to the input signal level. A 45-degree line means that the input signal level equals the output Dynamics DME32—Owner’s Manual...
  • Page 138 GAIN —This sets the De-Esser’s output signal level, and can be used to compensate for the level change in signals above the specified frequency caused by the compression process. FREQ —This sets the frequency above which signals are compressed when the De-Esser is activated. DME32—Owner’s Manual Range ON/OFF Mutes the output ON/OFF Turns the component on and off –54 dB to 0 dB...
  • Page 139 Ducker. The ducker curve displays the effect of the Ducker. The vertical axis corre- sponds to the output signal level, while the horizontal axis corresponds to the input sig- nal level. A 45-degree line means that the input signal level equals the output signal Dynamics DME32—Owner’s Manual...
  • Page 140 HOLD — This determines how long ducking remains active once the trigger signal has fallen below the threshold level. DECAY —This determines how soon the Ducker returns to its normal gain once the trigger signal level drops below the threshold. DME32—Owner’s Manual Range ON/OFF Mutes the output...
  • Page 141 The gain reduction (GR) meter displays the amount of gain reduction being applied by the Expander. The expander curve displays the effect of the Expander. The vertical axis corresponds to the output signal level, while the horizontal axis corresponds to the Dynamics DME32—Owner’s Manual...
  • Page 142 –20 –30 –40 –50 –60 –70 –70 –60 –50 DME32—Owner’s Manual Range ON/OFF Mutes the output ON/OFF Turns the component on and off ON/OFF Selects the sidechain input as the trigger source –54 dB to 0 dB Adjusts the threshold level 1:1 to Infinity:1...
  • Page 143 Release times from 0.1 to 0.5 seconds are a good place to start. GAIN —This sets the Expander’s output signal level, and can be used to compensate for the overall level change caused by the expansion process. DME32—Owner’s Manual...
  • Page 144 Gate. The gate curve displays the effect of the Gate. The vertical axis corresponds to the output signal level, while the horizontal axis corresponds to the input signal level. DME32—Owner’s Manual The Gate component features one input, one output, and a sidechain input.
  • Page 145 Adjusts the attack time Adjusts the hold time Adjusts the decay time Threshold = –10dB –10 –20 –30 Range = –30dB –40 –50 –60 –70 –70 –60 –50 –40 –30 –20 –10 Input Level (dB) DME32—Owner’s Manual Range = –70dB...
  • Page 146: Component Guide Part Ii

    User Module ........... . 193 DME32—Owner’s Manual...
  • Page 147: Effect

    Reverb Hall, Reverb Room, Reverb Stage, Reverb Plate, Early Ref, Gate Reverb, and Reverse Gate. Delays Mono Delay, Stereo Delay, Mod Delay, Delay LCR, and Echo. Modulation-type Effects Chorus, Flange, Symphonic, Phaser, Auto Pan, Tremolo, HQ Pitch, Dual Pitch, Mod Filter, Dyna Filter, and Dyna Flange. DME32—Owner’s Manual...
  • Page 148 Delay between early reflections and reverb Balance between early reflections and reverb (0% = all reverb, 100% = all early reflections) Level at which gate kicks in (OFF = gate off) Gate opening speed Gate hold time Gate closing speed DME32—Owner’s Manual...
  • Page 149 DIFF. DENSITY ER NUM. HI.RATIO FB. GAIN TYPE 1. S-Hall (small hall), L-Hall (large hall), Random, Reverse, Plate, Spring DME32—Owner’s Manual The Early Ref. component features one input and stereo outputs. Range 0.1–20.0 Reflection spacing Early reflections decay characteristics 0–10 (0 = dead, 10 = live) 0.0–500.0 ms...
  • Page 150 Reflection spacing Early reflections decay characteristics (0 = dead, 10 = live) Initial delay before reverb begins Reverb diffusion (left–right reverb spread) Reverb density Number of early reflections High-frequency feedback ratio Feedback gain Type of early reflection simulation DME32—Owner’s Manual...
  • Page 151: Mono Delay

    The IN meter displays the input signal level, while the OUT meter displays the output signal level. Parameter DELAY FB.GAIN HI.RATIO DME32—Owner’s Manual The Mono Delay component features one input and one output. Range 0.0–2730.0 ms Delay time Feedback gain (plus values for normal-phase feed- –99 to +99%...
  • Page 152: Stereo Delay

    50.0 Hz–16.0 kHz, THRU Low-pass filter cutoff frequency (THRU = filter off) Effect Description Left-channel delay time Left-channel feedback (plus values for normal-phase feedback, minus values for reverse-phase feedback) Right-channel delay time Right-channel feedback (plus values for normal-phase feedback, minus values for reverse-phase feedback) High-frequency feedback ratio DME32—Owner’s Manual...
  • Page 153 The IN meter displays the input signal level, while the OUT meters display the stereo output signal levels. Parameter DELAY FB.GAIN HI.RATIO FREQ. DEPTH WAVE DME32—Owner’s Manual The Mod Delay component features one input and ste- reo outputs. Range 0.0–2725.0 ms Delay time Feedback gain –99 to +99% (plus values for normal-phase feedback, minus values for reverse-phase feedback) 0.1–1.0...
  • Page 154 Effect Description Left-channel delay time Center delay time Right-channel delay time Left-channel delay level Center delay level Right-channel delay level Feedback delay time Feedback gain (plus values for normal-phase feedback, minus values for reverse-phase feedback) High-frequency feedback ratio DME32—Owner’s Manual...
  • Page 155 FB.D L FB.G L DELAY R FB.D R FB.G R L->R FB.G R->L FB.G HI.RATIO DME32—Owner’s Manual The Echo component features two inputs and two out- puts. Range 0.0–1350.0 ms Left-channel delay time 0.0–1350.0 ms Left-channel feedback delay time Left-channel feedback gain –99 to +99%...
  • Page 156 The IN meters display the input signal levels, while the OUT meters display the output signal levels. Parameter Range FREQ. 0.05–40.00 Hz PM DEPTH 0–100% AM DEPTH 0–100% MOD.DLY 0.0–500.0 ms WAVE SINE, TRI Effect Description Modulation speed Pulse modulation depth Amplitude modulation depth Modulation delay time Modulation waveform DME32—Owner’s Manual...
  • Page 157 The IN meters display the input signal levels, while the OUT meters display the output signal levels. Parameter FREQ. DEPTH FB.GAIN MOD.DLY WAVE DME32—Owner’s Manual The Flange component features two inputs and two outputs. Range 0.05–40.00 Hz Modulation speed 0–100% Modulation depth Feedback gain (plus values for normal-phase feed- –99 to +99%...
  • Page 158 Symphonic The Symphonic component offers a richer, more complex two-channel modulation effect than regular chorus and is proprietary to Yamaha. The Symphonic component features two inputs and two outputs. The Symphonic control window consists of symphonic controls, input level meters, output level meters, and modulation wave selector.
  • Page 159 The IN meter displays the input signal level, while the OUT meters display the output signal levels. Parameter FREQ. DEPTH FB.GAIN OFFSET STAGE DME32—Owner’s Manual The Phaser component features one input and stereo outputs. Range 0.05–40.00 Hz Modulation speed 0–100% Modulation depth Feedback gain (plus values for normal-phase feed- –99 to +99%...
  • Page 160: Auto Pan

    The IN meters display the input signal levels, while the OUT meters display the output signal levels. Parameter Range FREQ. 0.05–40.00 Hz DEPTH 0–100% DIR. WAVE SINE, TRI, SQR 1. L<–>R, L–>R, L<–R, Turn L, Turn R Effect Description Modulation speed Modulation depth Panning direction Modulation waveform (sine, triangular, or square) DME32—Owner’s Manual...
  • Page 161 The IN meters display the input signal levels, while the OUT meters display the output signal levels. Parameter FREQ. DEPTH WAVE DME32—Owner’s Manual The Tremolo component features two inputs and two outputs. Range 0.05–40.00 Hz Modulation speed 0–100%...
  • Page 162 DELAY 0.0–1000.0 ms FB.GAIN –99 to +99% MODE 1–10 Effect Description Pitch shift amount Pitch shift fine amount Pitch shift delay time Feedback gain (plus values for normal-phase feed- back, minus values for reverse-phase feedback) Pitch shift precision DME32—Owner’s Manual...
  • Page 163: Dual Pitch

    PITCH 2 FINE 2 PAN 2 DELAY 2 FB.G 2 LEVEL 2 MODE DME32—Owner’s Manual The Dual Pitch component features two inputs and two outputs. Range –24 to +24 semitones Pitch change 1 pitch shift amount –50 to +50 cents Pitch change 1 pitch shift fine amount...
  • Page 164 0–100% OFFSET 0–100 RESO. 0–20 PHASE 0.00–354.375° LEVEL 0–100 TYPE LPF, HPF, BPF Effect Description Modulation speed Modulation depth Filter frequency offset Filter resonance Left and right modulation phase difference Output level Filter type: low-pass, high-pass, or band-pass DME32—Owner’s Manual...
  • Page 165 OFFSET RESO. DECAY LEVEL TYPE DIR. 1. 6 ms–46.0 s (fs = 44.1 kHz), 5 ms–42.3 s (fs = 48 kHz) DME32—Owner’s Manual The Dyna Filter component features two inputs and two outputs. Range 0–100 Input sensitivity 0–100 Filter frequency offset 0–20...
  • Page 166 Effect Description Input sensitivity Feedback gain (plus values for normal-phase feed- back, minus values for reverse-phase feedback) Delay time offset Speed of resonant frequency changes Direction of resonant frequency changes (reso- nant frequency reacts to the input signal) DME32—Owner’s Manual...
  • Page 167 PHASE EQ BAND ON/OFF Type OUTPUT LEVEL MUTE 1. Top and bottom bands only. DME32—Owner’s Manual Range ON/OFF Turns the component on and off –Infinity dB to 0.0 dB Adjusts the input signal level NOR/REV Inverts the input signal 10–0.10 Adjusts the selectivity of each band 20.0 Hz–20.0 kHz...
  • Page 168 EQ graph. When the cursor is placed over a circle, it changes to a hand and the curve can then be dragged to achieve the required setting. DME32—Owner’s Manual...
  • Page 169 INPUT PHASE Frequency 20.0 Hz–20.0 kHz Frequency 20.0 Hz–20.0 kHz EQ band Gain OUTPUT LEVEL MUTE DME32—Owner’s Manual Range ON/OFF Turns the component on and off –Infinity dB to 0.0 dB Adjusts the input signal level NOR/REV Inverts the input signal...
  • Page 170: Fader

    Since the only difference between all the Fader components is the number of channels, only the 8-channel Fader Control window is shown here. The Fader component parameters are explained in the following table. Parameter Range Description Faders –Infinity dB to 6.0 dB Adjusts the output signal level of each channel DME32—Owner’s Manual...
  • Page 171: Filter

    LEVEL INPUT PHASE FREQ Filter SLOPE OUTPUT LEVEL MUTE DME32—Owner’s Manual The HPF component features one input and one output. Range ON/OFF Turns the component on and off –Infinity dB to 0.0 dB Adjusts the input signal level NOR/REV Inverts the input signal 20.0 Hz–20.0 kHz...
  • Page 172 –Infinity dB to 0.0 dB MUTE ON/OFF Filter Description Turns the component on and off Adjusts the input signal level Inverts the input signal Adjusts the LPF cutoff frequency Selects the filter slope Adjusts the output signal level Mutes the output DME32—Owner’s Manual...
  • Page 173 The BPF component parameters are explained in the following table. Section ON/OFF LEVEL INPUT PHASE FREQ Filter OUTPUT LEVEL MUTE DME32—Owner’s Manual The BPF component features one input and one output. Parameter Range ON/OFF –Infinity dB to 0.0 dB NOR/REV 20.0 Hz–20.0 kHz 10–0.10 –Infinity dB to 0.0 dB...
  • Page 174 ON/OFF Range Description Turns the component on and off Adjusts the input signal level Inverts the input signal Adjusts the notch filter’s center fre- quency Adjusts the filter’s selectivity Adjusts the output signal level Mutes the output DME32—Owner’s Manual Filter...
  • Page 175: Input/Output

    Chapter 9—Component Guide Part II Input/Output The Input and Output components represent the DME32’s SLOT inputs and outputs. There are eight components in the Input/Output group. Four Input components for use with slot inputs 1 through 32 and four Output components for use with slot out- puts 1 through 32.
  • Page 176: Matrix Mixer

    OUT section, with fader and meter for each output channel. When a channel is soloed, “SOLO OFF” changes to “SOLO ON.” This is especially con- venient on control windows where the input channels are organized into pages and it’s not possible to see all SOLO buttons simultaneously. DME32—Owner’s Manual...
  • Page 177 For components with more than five outputs (i.e., more than five bus level con- trols per input channel), the bus level controls in the IN section can be scrolled up or down by clicking these two arrow buttons. DME32—Owner’s Manual Range Adjusts the level of each input channel sig- –Infinity dB to 0.0 dB...
  • Page 178 The following Matrix Mixers are available. Group Matrix Mixer 12x1 12x2 12x4 12x8 12x12 16x1 16x2 16x4 16x8 16x12 16x16 Matrix Mixer Inputs Outputs DME32—Owner’s Manual...
  • Page 179: Meter

    8-channel Meter window is shown here. Each Meter control window features 12-segment level meters. The Meter component parameters are explained in the following table. Parameter Meter DME32—Owner’s Manual Range –60, –30, –18, –12, Displays the signal level of each channel –6, CLIP...
  • Page 180: Misc

    There are three components in the Miscellaneous group: Gain Trimmer, Oscillator, and System Mute. Gain Trimmer The Gain Trimmer component offers remote control and recall of up to 16 Yamaha AD824 A/D Converters. See page 256 for information on using the AD824 with the DME32.
  • Page 181 Parameter WAVEFORM LEVEL ON/OFF Note: When using the oscillator, be careful with volume levels—nobody likes sudden loud noises, or worse, speaker damage. DME32—Owner’s Manual The Oscillator component has one output. Range 100Hz 100 Hz sine wave 1kHz 1 kHz sine wave...
  • Page 182 The System Mute control window features only the SYSTEM MUTE button. When the SYSTEM MUTE button is clicked, all the outputs of the entire DME32 sys- tem, including the outputs of all DME32s in a multiple-unit system, are muted. All out- puts are unmuted when the button is clicked again.
  • Page 183: Pan

    When it’s set to 0.5, the front-center signal is fed equally to the L, R, and C outputs. And when it’s set to 1.0, the front-center signal is fed only to the C output. DME32—Owner’s Manual The LCR component features one input and three outputs: L (left), C (center), and R (right).
  • Page 184 The Pan component features one input and two outputs: L (left) and R (right). The Pan control window consists of a single pan control. The Pan component parameter is explained in the following table. Parameter Range L63–CENTER–R63 Description Pans the input signal between the left and right outputs DME32—Owner’s Manual...
  • Page 185 The Surround 2+2 control window consists of speaker buttons, ORBIT section, SOUND IMAGE POSITION section, and a two-dimensional surround pan graph, which displays the specified orbit and sound-image position. DME32—Owner’s Manual The Surround 2+2 component features one input and four outputs: FL (front-left), FR (front-right), RL (rear-left), and RR (rear right).
  • Page 186 Selects an orbit for sound-image movement Adjusts the width of the orbit Adjusts the X (left-right) position of the orbit Adjusts the depth of the orbit Adjusts the Y (front-rear) position of the orbit Sets the continuous movement speed DME32—Owner’s Manual...
  • Page 187 Circle —This orbit moves the sound image circularly. The WIDTH, DEPTH, X OFFSET, and Y OFFSET parameters can be used to adjust this orbit, as shown below. DME32—Owner’s Manual...
  • Page 188 SOUND IMAGE POSITION buttons. Con- tinuous movement is possible by holding down the mouse button, and the speed can be set using the SPEED control. The two values next to these buttons indicate the exact position of the sound image. DME32—Owner’s Manual...
  • Page 189 L and R outputs. When it’s set to 0.5, the front-center signal is fed equally to the L, R, and C outputs. And when it’s set to 1.0, the front-center signal is fed only to the C output. DME32—Owner’s Manual Parameter Range...
  • Page 190 SOUND IMAGE POSITION buttons. Con- tinuous movement is possible by holding down the mouse button, and the speed can be set using the SPEED control. The two values next to these buttons indicate the exact position of the sound image. DME32—Owner’s Manual...
  • Page 191 L and R outputs. When it’s set to 0.5, the front-center signal is fed equally to the L, R, and C outputs. And when it’s set to 1.0, the front-center signal is fed only to the C output. DME32—Owner’s Manual Parameter Range...
  • Page 192: Router

    In other words, a Router can distribute an input signal among several outputs, but it cannot mix input signals. If you assign an input signal to an output that is already in use, the previous assignment is cancelled. Router component buttons cannot be linked using the Parameter Link function. DME32—Owner’s Manual...
  • Page 193 Chapter 9—Component Guide Part II The following Routers are available. Group DME32—Owner’s Manual Router Inputs 1x12 1x16 2x12 2x16 4x12 4x16 8x12 8x16 12x1 12x2 12x4 12x8 12x12 12x16 16x1 16x2 16x4 16x8 16x12 16x16 Outputs...
  • Page 194: Switch

    Each Switch control window features on/off and phase buttons. The Switch component parameters are explained in the following table. Parameter Range ON/OFF ON/OFF Phase NOR/REV Switch Description Turns on and off the output of each channel Invert the phase of each input signal DME32—Owner’s Manual...
  • Page 195: User Control

    The following example shows a User Control control window featuring parameters copied from various components. DME32—Owner’s Manual The User Control component has no inputs or outputs.
  • Page 196 Select the parameter, then while holding down the Shift key, right-click over the control. The following pop-up menu appears. Choose Copy. The pop-up menu disappears. Select the User Control window, and right-click over it. The following pop-up menu appears. User Control DME32—Owner’s Manual...
  • Page 197 The selected control, or all controls are deleted. User controls are stored in configurations, and once completed, it’s a good idea to store the configuration. You must compile and transfer the configuration to the DME32 for the user control to take effect.
  • Page 198: User Module

    See “Adding Wires” on page 51 and “Deleting Wires” on page 56 for more information. Initially a User Module features one input and one out- put, although this can be expanded to up to 16 inputs and 16 outputs. User Module DME32—Owner’s Manual...
  • Page 199 In the Save File Name field, enter a title for the User Module. Titles can be up to 24 characters long. Click the Clear button to clear the title if you want to enter another title. Click Save. The User Module is saved and the Module window closes. DME32—Owner’s Manual...
  • Page 200 The title of the selected module appears in the Select File Name field, as shown below. Click the Clear button to cancel the selection if you want to select another module. Click Load. The selected module is loaded and the Module window closes. User Module DME32—Owner’s Manual...
  • Page 201 In the Mode section, select Delete. Select the module that you want to delete from the File List, as shown below. Click the Clear button to cancel your selection if you want to select another module. Click Delete. The selected module is deleted. DME32—Owner’s Manual...
  • Page 202: Front Panel Operation

    Restricting Access to the DME32 ........
  • Page 203: Recalling Configurations

    Chapter 10—Front Panel Operation Recalling Configurations Configurations can be recalled from the DME32 front panel as follows. Note: When recalling a configuration, be aware that volume levels may change abruptly as the system is reconfigured—nobody likes sudden loud noises, or worse, speaker damage.
  • Page 204: Storing Scenes

    Storing Scenes Scenes can be stored from the DME32 front panel as follows. Note: When storing a scene, make sure that there are no settings that you do not want to store. Perhaps some settings have been adjusted accidentally, or by someone else. If you are not sure, recall the last scene, make the adjustments that you really want, and then store the scene.
  • Page 205: Recalling Scenes

    Chapter 10—Front Panel Operation Recalling Scenes Scenes can be recalled from the DME32 front panel as follows. Note: When recalling a scene, be aware that volume levels may change abruptly as param- eters change—nobody likes sudden loud noises, or worse, speaker damage.
  • Page 206: Editing Parameters & The User Define Button

    When a parameter is edited, the scene edit dots appear on the SCENE NO. display, indi- cating that a parameter has been edited since the last scene was recalled. Editing Parameters & the User Define Button CONFIGURATION SCENE CONFIGURATION SCENE CONFIGURATION SCENE ) to move the cursor between the COMPONENT, DME32—Owner’s Manual...
  • Page 207 Chapter 10—Front Panel Operation When the DME32 is turned on, or a scene recalled, the first parameter of the first com- ponent is selected, unless the [USER DEFINE] button has been assigned to a parameter, in which case, that parameter is selected.
  • Page 208: Restricting Access To The Dme32

    Restricting Access to the DME32 Access to the DME32 can be restricted by using the Protect function. Two levels of pro- tection are available: Scene Recall Only and Full Protect. Scene Recall Only allows scenes to be recalled while preventing access to all other functions. Full Protect prevents access to all functions, although it can be disabled temporarily by entering the correct password, allowing editing by authorized users.
  • Page 209 Setup protection level display, and the SLOT display. If Scene Recall Only mode is enabled and you want to edit component parameters, first switch to Full Protect mode (see page 205), and then temporarily disable the protection (see page 206). DME32—Owner’s Manual CONFIGURATION SCENE CONFIGURATION...
  • Page 210 Full Protect mode is enabled and the PROTECT indicator lights up. In Full protect mode, scenes cannot be stored or recalled. Components, parameters, and values can be selected and viewed in the normal way, but they cannot be edited. Restricting Access to the DME32 CONFIGURATION SCENE...
  • Page 211 Press the [VALUE] button to enable Full Protect mode, or press the [PARAM- ETER] button to cancel. Full Protect mode is enabled and the PROTECT indicator lights up. If you forget the password, see “Checking the Firmware Version & Battery” on page 210. DME32—Owner’s Manual CONFIGURATION SCENE CONFIGURATION...
  • Page 212: Changing The Password

    Enter the old password, and then press the [RECALL] button. The New password display appears, as shown below. SCENE NO. Enter the new password, and then press the [RECALL] button. The new password is set. Restricting Access to the DME32 CONFIGURATION SCENE CONFIGURATION SCENE...
  • Page 213: Deleting The Password

    Enter the old password, and then press the [RECALL] button. The New password display appears, as shown below. SCENE NO. Press the [PROTECT] button. The password is deleted and the PROTECT indicator goes out. DME32—Owner’s Manual CONFIGURATION SCENE CONFIGURATION SCENE...
  • Page 214: Selecting The Wordclock Source

    The DME32 checks the selected source to see if a usable wordclock signal is available. If such a signal exists, the DME32 locks to it and the LOCK indicator lights up. The 48kHz indicator lights up if the selected wordclock is at 48 kHz; the 44.1kHz indicator lights up if it’s at 44.1 kHz.
  • Page 215: Checking The I/O Slots

    When the number of DME32s in a multiple-unit system is changed (e.g., DME32s are added or removed), all DME32s must be initialized. Checking the Firmware Version & Battery You can check the date and version number of the DME32 firmware and battery voltage as follows. Turn off the DME32.
  • Page 216: Gpi Interface

    Emergency Mode ..........220 DME32—Owner’s Manual...
  • Page 217: About The Gpi Interface

    They can also be configured for use with Emergency mode, in which the DME32 mutes all outputs. The DME32 can be configured to switch a GPI output when a GPI input is triggered, or to transmit a Program Change message when a scene or configu- ration is recalled via a GPI input, or to transmit a Control Change message when a com- ponent parameter is adjusted via a GPI input.
  • Page 218 Euro-block plug Remote switch box The next example shows how the DME32 can remotely control other equipment via the GPI interface. Scenes 1 through 4 are assigned to GPI outputs 1 through 4. When a scene is recalled, the corresponding GPI output is switched from high or low. A more advanced setup could be used to switch a GPI output when a component parameter is turned on or off, or a parameter is adjusted above or below a specified threshold.
  • Page 219: Assigning Gpi Inputs

    Click the IN tab if the IN page is not already shown. The IN page appears, as shown below. Select a DME32 (GPI Select: UNIT) and GPI input (GPI Select: GPI CH). To assign a scene, click the Scene Change button, and then click a Scene Select button from 1 through 99.
  • Page 220: Assigning Gpi Inputs

    You must compile and transfer the configuration to the DME32 for the GPI IN settings to take effect. See “How to Build & Edit Configurations” on page 44 for more informa- tion. The GPI IN parameters are explained in the following table.
  • Page 221: Parameter Control

    IN changes from high to low (i.e., when potentiometer High-to-low lowered) 1. Transition between low and high occurs at the center position. DME32—Owner’s Manual Normally Open Switch Rotary controls & sliders High = max. value High = top setting Low = min.
  • Page 222: Assigning Gpi Outputs

    Click OK to save your settings, or click Cancel to leave them unchanged. The GPI window closes. You must compile and transfer the configuration to the DME32 for the GPI OUT set- tings to take effect. See “How to Build & Edit Configurations” on page 44 for more information.
  • Page 223: Scene Recall

    High = +5 V Threshold Value Low-to-high High-to-low DME32—Owner’s Manual Parameter Range UNIT 1–4 Selects a DME32 GPI CH 1–16 Selects a GPI output 1–99 Assigns a scene to the selected GPI output Selects the component whose parameter is COMPONENT to be assigned...
  • Page 224 ON = low Value above threshold = low High-to-low Assigning GPI Outputs Parameter type Rotary controls & sliders Setting below threshold = low Setting above threshold = high Setting below threshold = high Setting above threshold = low Pop-up menus DME32—Owner’s Manual...
  • Page 225: Emergency Mode

    Chapter 11—GPI Interface Emergency Mode A GPI input can be dedicated for use with Emergency mode, in which the DME32 mutes all outputs and the EMERGENCY indicator lights up. When the emergency con- dition is removed normal operation is resumed and the EMERGENCY indicator goes out.
  • Page 226: Pc Cards

    PC Cards & the DME32 ........
  • Page 227: Pc Cards & The Dme32

    Insert the PC Card into the CARD slot, connector first and with the labeled-side facing up. To eject the PC Card, press the eject button at the side of the CARD slot. Do not eject a PC Card while the DME32 is saving, loading, or deleting a configuration. DME32—Owner’s Manual PC Card...
  • Page 228: Formatting Pc Cards

    Note: Formatting erases all previously stored data, so if you’re reusing a PC Card, make sure that it contains no important data before formatting. Insert the PC Card into the DME32 CARD slot. Use the [UTILITY] button to select the “Card Format” function.
  • Page 229: Saving Configurations To Pc Cards

    Saving Configurations to PC Cards Configurations can be saved to PC Cards as individual files, stating with “CNF1.DME”. Insert the formatted PC Card into the DME32 CARD slot. Use the [UTILITY] button to select the “Save to card” function. SCENE NO.
  • Page 230: Loading Configurations From Pc Cards

    Use the [PARAMETER] button or cursor buttons to select the PARAMETER sec- tion of the display, and then use the DATA wheel or [INC] and [DEC] buttons to select the DME32 configuration into which you want to load the configu- ration, as shown in the following example.
  • Page 231: Deleting Configurations From Pc Cards

    Chapter 12—PC Cards Deleting Configurations from PC Cards Individual configurations can be deleted from PC Cards as follows. Insert the PC Card into the DME32 CARD slot. Use the [UTILITY] button to select the “Delete card data” function. SCENE NO.
  • Page 232: Wordclocks

    Wordclocks & the DME32 ........
  • Page 233: Wordclocks & The Dme32

    The DME32 can be used as the 48 kHz wordclock master for an entire system, or slaved to an external wordclock source of between 39.69 kHz and 50.88 kHz. It can receive an external wordclock signal via its BNC WORDCLOCK IN or the input of a digital I/O card.
  • Page 234: Wordclock Connections

    Note: When the wordclock source is changed on the wordclock master device (e.g., AD824 or DME32), noise may occur from the DME32’s analog outputs, especially if an MY8-AT I/O card is installed, so turn down your power amps, or turn off the DME32 beforehand, otherwise any connected speakers may be damaged.
  • Page 235 When a configuration is transferred to the DME32, the DME32 checks the specified source to see if a usable wordclock signal is available. If such a signal exists, the DME32 locks to it and the LOCK indicator lights up. The 48kHz indicator lights up if the selected wordclock is at 48 kHz;...
  • Page 236: Wordclock Hookup Examples

    The following example shows how the wordclock can be configured when using two DME32s and MY4-AD and MY4-DA I/O cards for analog inputs and outputs. DME32 #1 is the wordclock master and its wordclock source is set to Internal. DME32 #2 auto- matically receives its wordclock from the cascade connection.
  • Page 237 The next example shows how the wordclock can be configured when using four DME32s and AD824 AD Converters and DA824 DA Converters for analog inputs and outputs. DME32 #1 is the wordclock master and its wordclock source is set to Internal. The other DME32s automatically receive their wordclocks via the cascade connections.
  • Page 238: Wordclock Hookup Examples

    The wordclock source on DME32 #1 is set to Wordclock In. DME32 #2 automat- ically receives its wordclock from the cascade connection. The wordclock termination switch on DME32 #1 is set to ON. The DA824s receive their wordclocks via their slot inputs, while the AD824s receive theirs via BNC connections from DME32 #1.
  • Page 239: Terminating Bnc Wordclock Distribution

    The DME32’s WORD CLOCK 75 ON/OFF switch allows the DME32 to be connected in a variety of ways. The following examples show three ways in which wordclock signals can be distributed and how ter- mination should be applied in each case.
  • Page 240: Multiple Dme32S

    Multiple-unit Hookup Examples ........238 DME32—Owner’s Manual...
  • Page 241: About Multiple Dme32S

    • The GPI interfaces on all cascaded DME32s can be used, providing a maximum of 64 GPI inputs and 64 GPI outputs with four DME32s. • Wordclock settings only need to be made on DME32 #1. The other DME32s automat- ically receive their wordclocks via the cascade connections.
  • Page 242: Cascade Connections

    CASCADE OUT connector is automatically assigned the last MIDI connections need only be made to DME32 #1. When DME32 #1 receives a Pro- gram Change message that has been assigned to Scene 10, for example, Scene 10 is recalled on all DME32s via the cascade connections.
  • Page 243: Multiple-Unit Hookup Examples

    The following example shows how two DME32s can be cascaded to achieve 16 analog inputs and 16 analog outputs by using MY4-AD and MY4-DA I/O cards. DME32 #1 is automatically assigned ID #1 because nothing is connected to its CASCADE IN port, while DME32 #2 is automatically assigned ID 2 because nothing is connected to its CASCADE OUT port.
  • Page 244: Multiple-Unit Hookup Examples

    The following example shows how four DME32s can be cascaded to achieve 128 inputs and 128 outputs. DME32 #1 is automatically assigned ID #1 because nothing is con- nected to its CASCADE IN port, while DME32 #4 is automatically assigned ID 4 because nothing is connected to its CASCADE OUT port.
  • Page 245: Midi

    MIDI & the DME32 ........
  • Page 246: Midi & The Dme32

    ECHO settings on the MIDI Setup window. The MIDI Channels and the type of mes- sages that the DME32 transmits and receives can also be set on this window. See “MIDI Set- tings” on page 242 for more information.
  • Page 247 Determines whether or not assigned scenes or configurations are recalled when Program Change messages are received Determines whether the DME32 responds to Program Change messages received on the specified MIDI Channel only or Pro- gram Change messages received on all MIDI Channels...
  • Page 248: Assigning Scenes & Configurations To Program Changes

    Make the required settings and then click OK to save your settings, or click Cancel to leave them unchanged. The MIDI window closes. MIDI settings are stored by the DME32 system, not scenes or configurations. Assigning Scenes & Configurations to Program Changes Scenes 1 through 99 and configurations A and B can be assigned to MIDI Program Changes...
  • Page 249 Click OK to save your assignments, or click Cancel to leave the settings unchanged. The MIDI window closes. Scene and configuration to Program Change assignments are stored by the DME32 system, not scenes or configurations. If a scene or configuration is assigned to more than one Program Change, the lowest Pro- gram Change is transmitted when that scene or configuration is recalled.
  • Page 250: Assigning Component Parameters To Control Changes

    The Control Change window closes. If a parameter has already been assigned to the selected Control Change, an overwrite con- firmation message appears. Click OK to overwrite the previous assignment, or click Cancel to keep it. DME32—Owner’s Manual...
  • Page 251 The Control Change window parameters are explained in the following table. Parameter Range UNIT 1–4 Selects the DME32 containing the parameter to be assigned Component Selects the component whose parameter is to be assigned Selects individual components in configurations containing Sub No.
  • Page 252: Component Parameters & Parameter Changes

    Click OK to save your assignments, or click Cancel to leave the settings unchanged. The MIDI window closes. Parameter to Control Change assignments are stored by the DME32 system, not scenes or configurations. If a parameter is assigned to more than one Control Change, the lowest Control Change is transmitted when that parameter is adjusted.
  • Page 253: Saving Midi Settings

    Manufacturer's ID No.(YAMAHA) parameter change or response for request n=0-15 (Device Channel No.1-16) group ID (digital mixer) Device code (DME32) byte operation for edit buffer Parameter No. (H high order bit) Parameter No. (H low order bit) Parameter No. (L high order bit) Parameter No.
  • Page 254: Deleting Midi Settings

    Select the MIDI settings that you want to delete from the File List, as shown below. Click the Clear button to cancel your selection if you want to select again. Click Delete. The selected MIDI settings are deleted. DME32—Owner’s Manual...
  • Page 255: I/O Options

    I/O Options & the DME32 ........
  • Page 256: I/O Options & The Dme32

    Chapter 16—I/O Options I/O Options & the DME32 For analog and digital audio inputs and outputs, the DME32 uses optional mini YGDAI (Yamaha General Digital Audio Interface) I/O cards, which offer several analog I/O options and digital I/O interfaces in all the popular digital audio interconnect formats, including AES/EBU, ADAT, and Tascam TDIF-1.
  • Page 257: I/O Card Specifications

    As these specifications show, analog I/O cards offer either inputs or outputs, while dig- ital I/O cards offer both inputs and outputs. Choosing I/O Cards The DME32 features four I/O slots, for a total of 32 inputs and 32 outputs, which cor- respond to the slots as follows: DME32 Slot The type of cards you choose affects the number of channels that can be accessed.
  • Page 258 Chapter 16—I/O Options The following table shows which cards to use when connecting the DME32 to other Yamaha digital audio products. Each product can be connected using the preferred interface format—AES/EBU, ADAT, or Tascam TDIF-1. Total slot I/O Product Outs...
  • Page 259: Installing I/O Cards

    Keep the cover and fixing screws in a safe place for future use. Insert the card between the guide rails and slide it all the way into the slot, as shown below. You may have to push firmly to plug the card into the DME32 connector.
  • Page 260: Ad824 & Da824 Converters

    AES/EBU, ADAT, and Tascam TDIF-1. Analog outputs feature electronically balanced XLRs and 1/4" phone jacks. See your Yamaha dealer for more information on the AD824 and DA824. Hookup examples using the AD824 and DA824 are provided on the following pages.
  • Page 261: Hookup Examples

    The following two examples show how the AD824 AD Converter can easily be con- nected to the DME32 using AES/EBU and ADAT interfaces. The only drawback with this type of connection is that only the eight inputs of each slot can be accessed, not the eight outputs.
  • Page 262 The DME32 is wordclock master, with the AD824 receiving its wordclock via a BNC connection, the DA824, via its slot input.
  • Page 263: Ad824 & Da824 Converters

    The final example shows how the AD824 COM ports should be connected when several AD824s are used with the DME32. DME32 SCENE NO. CONFIGURATION 48kHz 44.1kHz LOCK EMERGENCY SLOT 1 AD824 #1 WORD CLOCK PEAK INTERNAL NOMINAL 44.1kHz 48kHz SLOT...
  • Page 264: Troubleshooting

    If you are using a 9-pin serial connection, make that the PC Control switch set- ting on the rear of the DME32 conforms to the type of serial port on your PC: RS232C or RS422. Make sure that the serial port on your PC is working correctly.
  • Page 265 Check the settings on the MIDI Setup window. See “MIDI Settings” on page 242. Make sure that the DME32 is set to receive Program Change messages and that the MIDI Receive Channel setting is correct. See “MIDI Settings” on page 242.
  • Page 266: Dme Manager

    This is normal. Configurations cannot be stored using the Run Mode Controller. Use the Data Transfer window to transfer configurations. See “Sending Configurations to the DME32” on page 62. Is the component’s Protect property checked? See “Customizing Com- ponent Properties” on page 80.
  • Page 267: Component Title Table

    Component Title Table The following table shows how component titles appear on the Component List, com- ponent icons, and DME32 display. Apart from the Cascade components, the titles that appear on the component icons and the DME32 display are identical, although com- ponent icon titles can be customized.
  • Page 268 Delay 2 Out Delay 3 Out Delay 4 Out Delay Delay 5 Out Delay 6 Out Delay 7 Out Delay 8 Out Delayed Mixer DME32—Owner’s Manual Component List Component Icon 2way 12dB/oct 2way 24dB/oct 2way 36dB/oct 2way 48dB/oct 3way 12dB/oct 3way 24dB/oct...
  • Page 269 HqPitch DuPitch ModFilter DynFilter DynFlange PEQ 2 PEQ 3 PEQ 4 PEQ 6 PEQ 8 GEQ 7 GEQ 15 GEQ 31 Component Title Table DME32 Display Compander Compressor De-Esser Ducker Expander Gate StCompander StCompressor StDe-Esser StDucker StExpander StGate RevHall RevRoom...
  • Page 270 Meter 1 Meter 2 Meter 4 Meter Meter 8 Meter 12 Meter 16 Gain Trimmer Misc Oscillator System Mute DME32—Owner’s Manual Component List Component Icon Fader 1 Fader 2 Fader 4 Fader 8 Fader12 Fader16 Notch Slot 1 In (1-8)
  • Page 271: Component Title Table

    Rtr1608 Router 16x12 Rtr1612 Router 16x16 Rtr1616 Sw 1 Sw 2 Sw 4 Sw 8 Sw 12 Sw 16 UserCtrl UserModule Component Title Table DME32 Display Surr2+2 Surr3+1 Surr5.1 Rtr102 Rtr104 Rtr108 Rtr112 Rtr116 Rtr201 Rtr202 Rtr204 Rtr208 Rtr212 Rtr216...
  • Page 272: Dme32 Error Messages

    Appendix A: General DME32 Error Messages If the DME32 displays an error message, look for the solution in the following table. Message ****** WARNING ****** The internal battery has expired. LOW BATTERY ABORTED-TooMany Several errors occurred while trying to Errors! download the firmware.
  • Page 273: Dme Manager Error Messages

    If you are using com port 2, for example, the setting should be “COM2”. Try opening the configuration again, or try receiving it from the DME32 again. Compile the configuration, and then try saving again. Compile the configuration, and then try sending again.
  • Page 274 Appendix A: General Message The configuration data has changed on The DME32 configuration the DME32. This may due, for example, data has changed. Receive to the wordclock setting being changed data from DME32? from the front panel, or a configuration being loaded from a PC Card.
  • Page 275: Appendix B: Specifications

    10˚ C to 35˚ C (50˚ F to 95˚ F) –20˚ C to 60˚ C (–4˚ F to 140˚ F) 2.5 m Power cord, CD-ROM (DME Manager program), 9-pin D-sub crossed cable, 16-pin Euro-block plug, Owner’s Manual MY8, MY4 mini YGDAI I/O cards DME32—Owner’s Manual...
  • Page 276: Control I/O

    GPI IN (x16) GPI OUT (x16) GPI +V (x16) SLOT (x4) Connector Pin Assignments PC CONTROL (RS232C) Name Unused PC CONTROL (RS422) Name Unused Rx– Tx– DME32—Owner’s Manual Format Level — (ON/OFF) — MIDI — MIDI — — — —...
  • Page 277 Bus 21–24 in– Bus 25–28 in– Bus 29–32 in– Sum 1–4 out– Sum 5–8 out– Sum 9–12 out– Sum 13–16 out– Sum 17–20 out– Sum 21–24 out– Sum 25–28 out– Sum 29–32 out– Wordclock in Control Rx– Control Tx– DME32—Owner’s Manual...
  • Page 278 Sum 21–24 in+ Sum 25–28 in+ Sum 29–32 in+ Wordclock in Control Tx+ Control Rx+ ID in (GND) ID in DME32—Owner’s Manual Name Bus 1–4 out– Bus 5–8 out– Bus 9–12 out– Bus 13–16 out– Bus 17–20 out– Bus 21–24 out–...
  • Page 279: Dme32 Dimensions

    DME32 Dimensions W: 480 Specifications and external appearance subject to change without notice. For European Model Purchaser/User Information specified in EN55103-1 and EN55103-2. Inrush Current: 13A Conformed Environment: E1, E2, E3 and E4 DME32 Dimensions H: 141.5 DME32—Owner’s Manual Unit: mm...
  • Page 280: Appendix C: Midi

    Program Change Assign Table Program Scene/ Change Configuration Program Change Assign Table Appendix C: MIDI Program Scene/ Change Configuration Program Scene/ Change# Configuration DME32—Owner’s Manual...
  • Page 281: Control Change Assign Table

    Appendix C: MIDI Control Change Assign Table Control Change Unit DME32—Owner’s Manual Component Sub. No Parameter Pair...
  • Page 282 Control Change Assign Table Control Change Unit Component Sub. No Parameter Pair DME32—Owner’s Manual...
  • Page 283 Appendix C: MIDI Control Change Unit DME32—Owner’s Manual Component Sub. No Parameter Pair...
  • Page 284: Midi Data Format

    Parameter value changes are transmitted and received. If [Parameter Change Tx] is ON, these messages are transmitted when the value of a parameter is changed. These mes- sages can be received when [Parameter Change Rx] is ON. 2. DME32 Settings and Operation 2.1 MIDI Setup 2.1.1 MIDI Channel 2.1.1.1 Transmit Channel...
  • Page 285: Channel Message

    Control values are converted into parameter values according to the following equa- tion. S = total number of variable steps for the parameter C / S = X remainder Y INT ((Y+1)/2) = Z DME32—Owner’s Manual rx/tx Function rx/tx Parameter control (according to Control Change...
  • Page 286: Midi Data Format

    Manufacturer's ID No.(YAMAHA) parameter change or response for request n=0-15 (Device Channel No.1-16) group ID (digital mixer) Device code (DME32) byte operation for edit buffer Parameter No. (H high order bit) Parameter No. (H low order bit) Parameter No. (L high order bit) Parameter No.
  • Page 287: Glossary

    Cable mode—The DME Manager mode for wiring components. Compiling—The process of translating a configuration into information that the DME32 can understand. Configurations must be compiled before they can be saved or transferred to the DME32. Component—Components form the building blocks in DME32 configurations.
  • Page 288 1 kilometer, higher data rates, and greater immunity to inter- ference than RS232C. Run mode—The DME Manager mode used to control the DME32 system in real time, which includes editing component parameters, storing and recalling scenes, and recalling configurations.
  • Page 289: Index

    Echo 150 editing 48 Effects 142 EQ 162 Expander 135 Fader 165 Filters 166 Flange 152 Gain trimmer 175 Gate 138 Gate reverb 145 GEQ 164 HPF 166 HQ pitch 157 Input 170 LCR 178 linking parameters 78 DME32—Owner’s Manual...
  • Page 290 PC cards 225 opening 45 opening saved configurations 46 DME32—Owner’s Manual printing 87 recalling from DME Manager 74 recalling from the DME32 198 saving 60 saving to PC cards 224 saving under a new name 60 selecting open configurations 46 windows 26...
  • Page 291 255 specifications 253 wordclock source 229 I-beam cursor 33 IN, GPI terminal 212 INC button 17 Initial settings, definition 287 Initializing the DME32 210 Input component 170 Inserting PC cards 222 Installing DME Manager 12 DME32 7 I/O cards 255...
  • Page 292 248 Parameter link command 37 Parameters assigning to control changes 246 editing from DME Manager 69 editing from the DME32 201 printing lists 87 Passwords changing on DME Manager 84 changing on the DME32 207 deleting on DME Manager 85...
  • Page 293 78 wires 56 Resizing configuration window sections 59 Restoring configuration windows 26 Restricting access to the DME32 203 Reverb hall component 143 Reverb plate component 143 Reverb room component 143 Reverb stage component 143 Reverse gate component 145...
  • Page 294 Wordclocks about 228 connections 229 definition 288 hookup examples 231 multiple DME32s 236 selecting from DME Manager selecting from the DME32 209 terminating 234 X, grid spacing 49 Y, grid spacing 49 Yamaha web site iii YGDAI card specifications 253...
  • Page 295: Midi Implementation Chart

    YAMAHA [Digital Mixing Engine] Model: DME32 Function... Basic Default Channel Changed Default Mode Messages Altered Note Number True Voice Note On Velocity Note Off After Keys Touch Ch’s Pitch bend Control 0–119 Change Prog Change :True# System Exclusive :Song Pos...
  • Page 296 YAMAHA CORPORATION Pro Audio & Digital Musical Instrument Division P.O. Box 3, Hamamatsu, 430-8651, Japan 00 10 800 AP Printed in Japan...

Table of Contents
