Hardware Installation
.
To
DEFINITY AUDIX
Alarm Board LAN
Connector
AT&T Provided D8W Cord

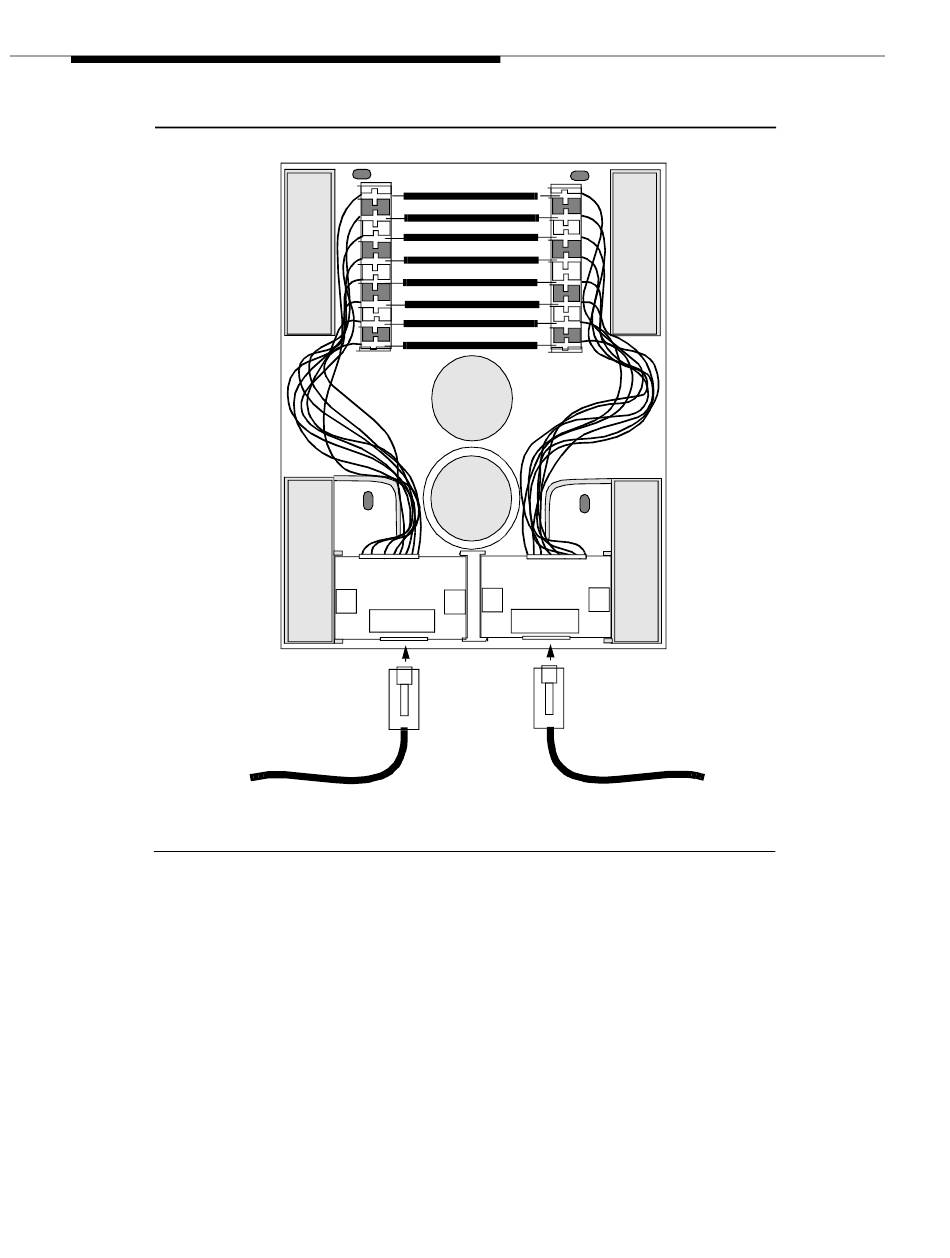

Figure 2-5. 104A Connecting Block
3. Connect the Alarm Board RJ45 connector to the 104A connecting block.
Use a D8W modular wall cord (up to 25 feet long) for the purpose. Make
this connection whether or not I
activated right away.
If the customer intends to connect a LAN to the DEFINITY AUDIX system,
there must be a customer-provided 10BaseT twisted pair cable with a
male RJ-45 connector to the connecting block. The customer is
responsible for this LAN connection. (The IMAP feature for I
Message Manager is activated later in the installation using the
administration terminal.)
2-12
Issue 2 December 1996
8
8
7 7
6
6
5
5
4
4
3
3
2
2
1
1
WE
RJ45
Connectors
Message Manager is to be
NTUITY
104A
10BaseT
LAN
Connection
Customer Provided Connection
NTUITY
