Lucent Technologies DEFINITY AUDIX Installation And Upgrade page 21

Task 4: Verify the Components and Connectivity
DEFINITY
AUDIX
D8W
MFB
ALB
DISK TAPE
*Demarcation Point
—Provided by AT&T
—RJ45 connection on a 104A
connecting block, using a
D8W modular wall cord
—Located on cross-connect field
—Maximum distance - 25 feet
from switch
** Software
—Installed by customer or Lucent
—Maintained by Lucent

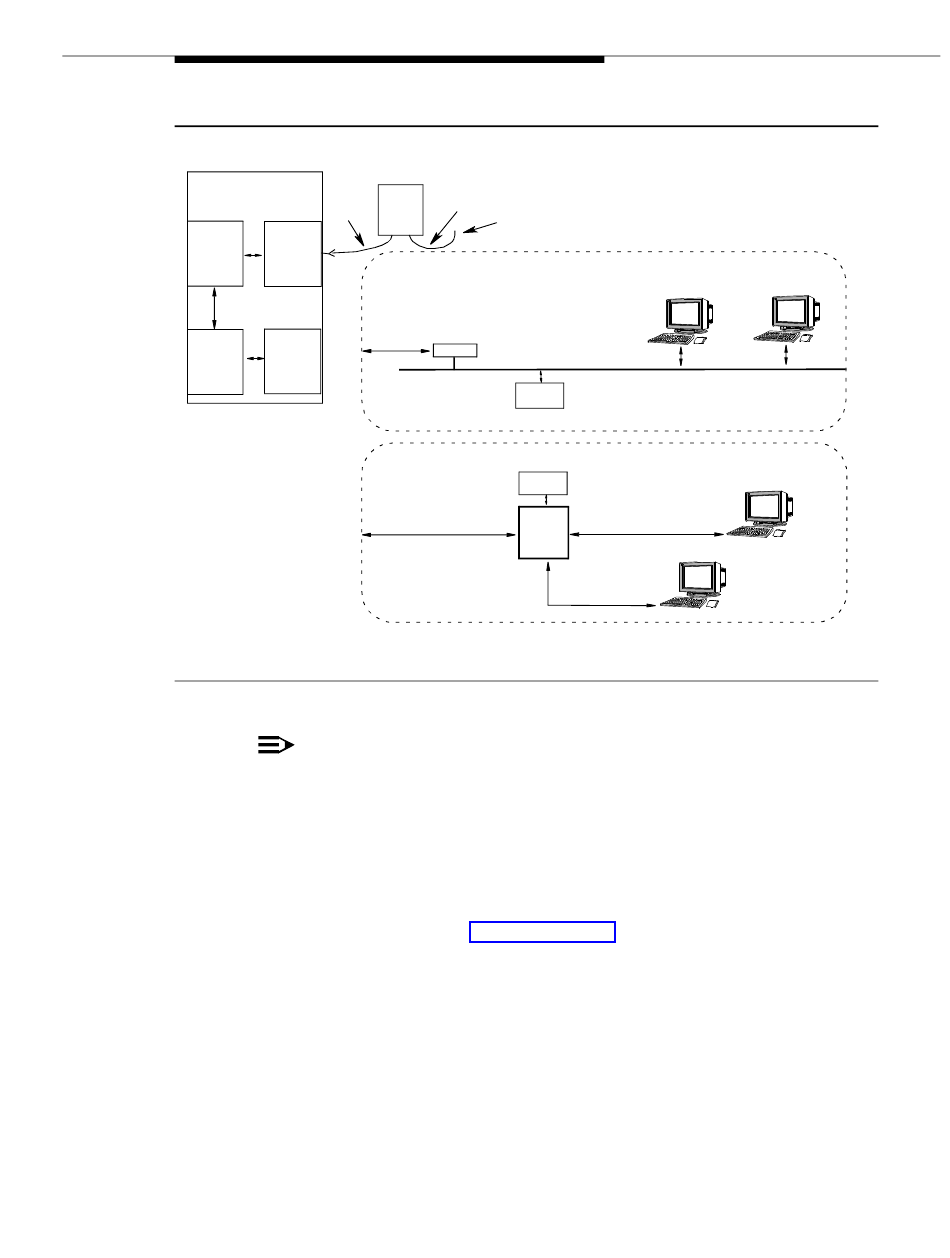

Figure 1-3. DEFINITY AUDIX LAN Connectivity
NOTE:
If DEFINITY AUDIX is to be used as a server for Local Area Network (LAN)
applications such as I
connection be available to the system prior to hookup. This connection to
the LAN is provided by Lucent on the wall field within 25 feet of the switch.
The preceding illustration shows two possible ways of connecting the DEFINITY
AUDIX system to a local area network. Each possibility shows the RJ45
connector on the alarm board connected to a 10BaseT LAN system. Further
details are provided under: ''LAN Connection'' on page 2-11 .
Customer
104A* Provided
10BaseT Twisted Pair
(See Below Examples)
10BaseT
(TWISTED PAIR)
BALUN ETHERNET COAXIAL CABLE
LAN
SERVER
LAN
SERVER
10BaseT
(TWISTED PAIR)
10baseT
HUB
Message Manager, it is required that a LAN
NTUITY
I
NTUITY
MESSAGE MANAGER
CLIENT SOFTWARE**
I
NTUITY
MESSAGE MANAGER
CLIENT SOFTWARE**
Issue 2 December 1996
1-7
