After the Upgrade
.
To
DEFINITY AUDIX
Alarm Board LAN
Connector

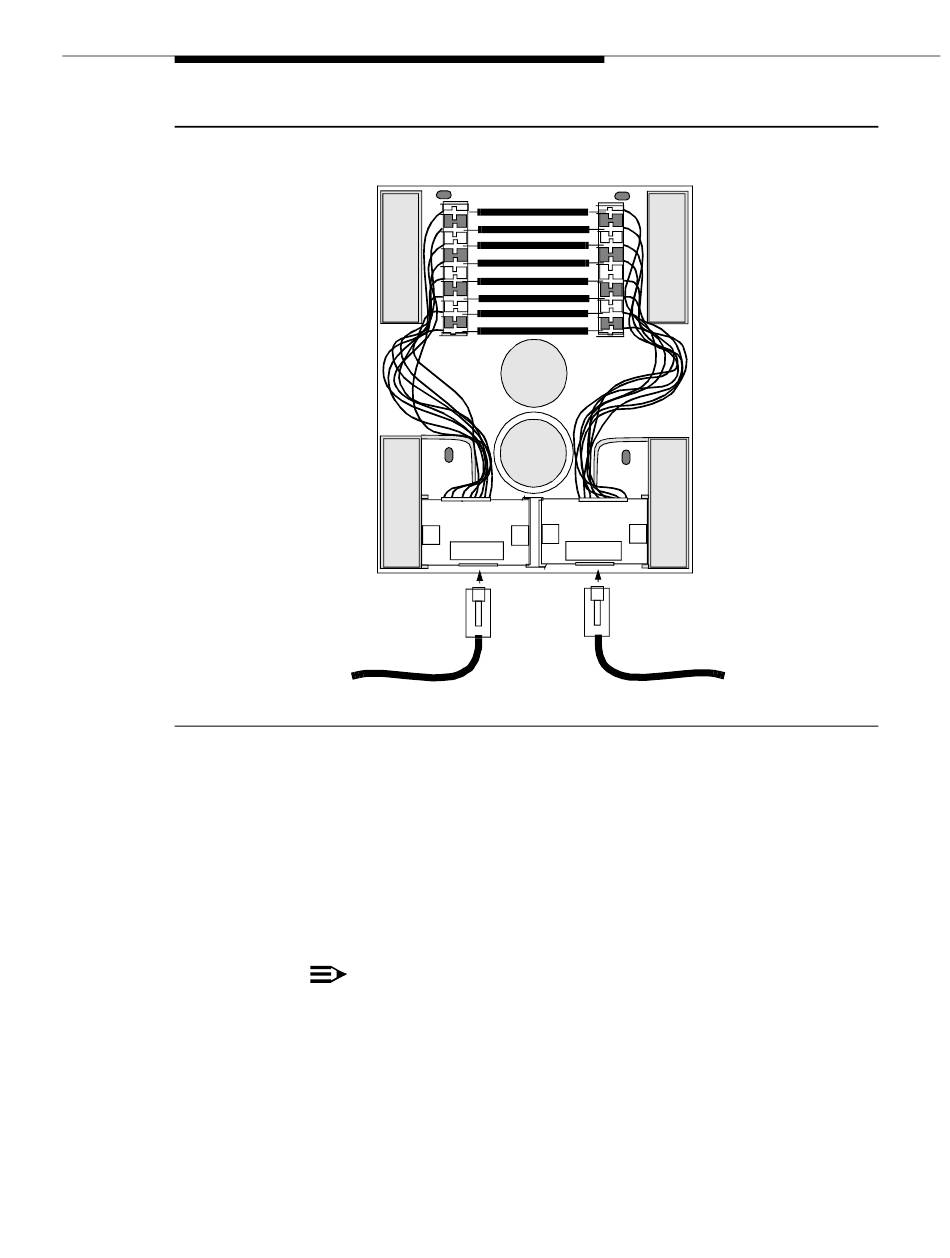

Figure 7-3. 104A Mounting Block
2. Mount the 104A connecting block on the wall field.
3. Connect the RJ45 10BaseT LAN connector into one of the connections at
the bottom of the 104A connecting block.
4. Connect one end of the D8W modular wall cord supplied with the upgrade
kit into the other connection at the bottom of the 104A connecting block.
5. Connect the other end of the D8W modular wall cord into the Alarm Board
RJ45 connector.
NOTE:
Joint Acceptance Testing is required by both the customer and the
Lucent Technologies installer. Acceptance Testing is performed at
the end of the installation. This demonstrates that installation was
successful. AUDIX Server Testing is also performed at this time.
