Hardware Installation

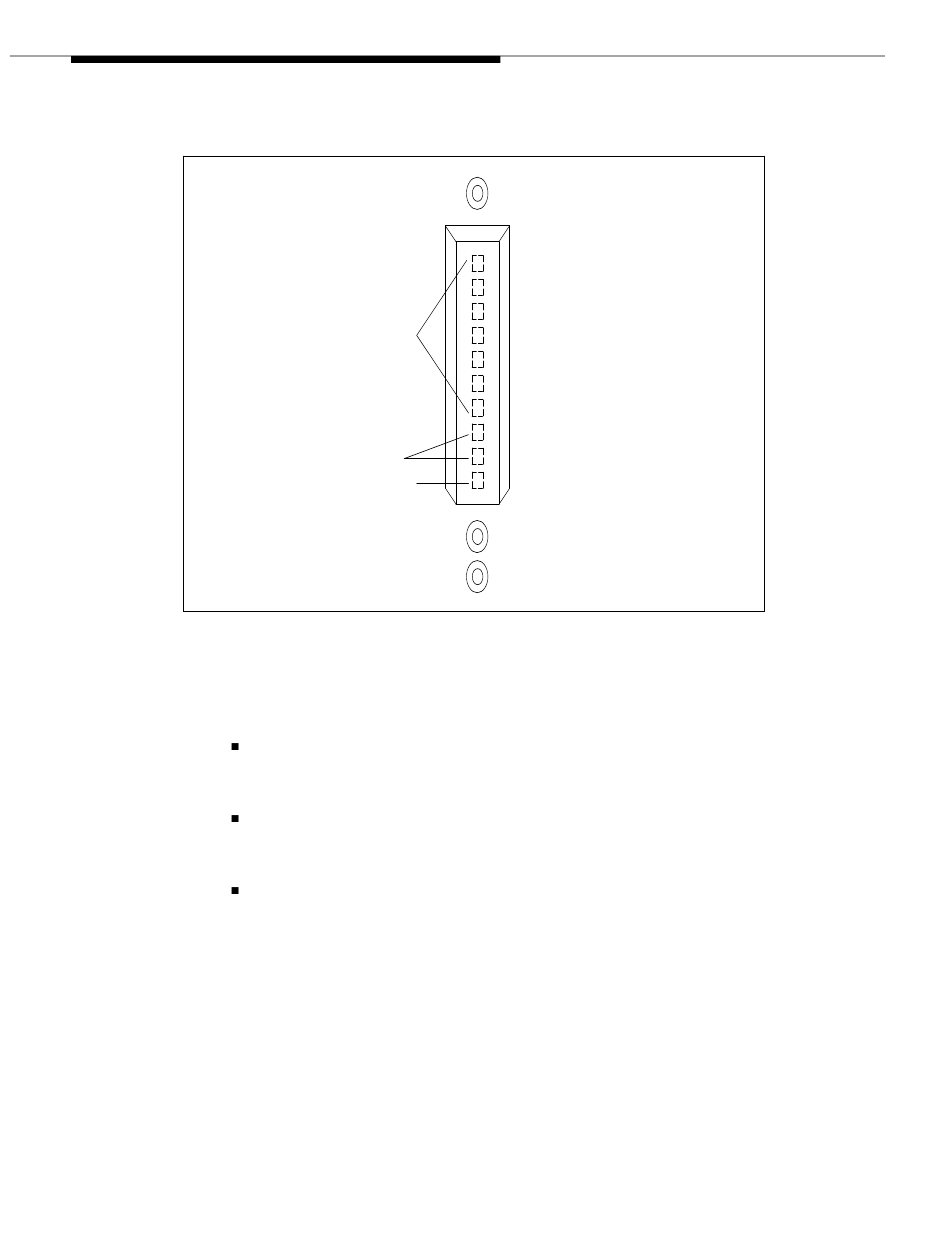

Figure 2-3. DEFINITY AUDIX System LCD Display
The following list describes the positions of the LCD.
See DEFINITY AUDIX System — Maintenance, 585-300-110 for a
complete description of the LCD display.
2-8
Issue 2 December 1996
STATE OF
OPERATION
OR
MENU
SELECTION
ALARM
FLASHING
HEARTBEAT
Standing to the right of the faceplate and reading from bottom to
top, the first position contains the DEFINITY AUDIX system
heartbeat.
The second and third positions display two letters indicating the
following types of alarms: warnings (WN), minor (MN) and major
(MJ). These positions are blank if there are no alarms.
The remaining positions indicate the DEFINITY AUDIX system
states or menu selections.
ENTER/YES
BUTTON
BACK
BUTTON
NEXT/NO
BUTTON
