3.8.24

LEDs

LED DS1 is connected to the PMI8952 'CHG_LED' pin and signals charging status. It is configured by default

to indicate battery charging status.

Two user controlled general purpose LED's are also available:

DS2 (BLUE) – Controlled by PMI_MPP_4_BLUE_LED_DRV

•

DS3 (GREEN) – Controlled by PMI_MPP_2_GREEN_LED_DRV

Note that LED DS2320 is not supported with the 642A SOM.

Open-Q™ 624A Development Kit User Kit

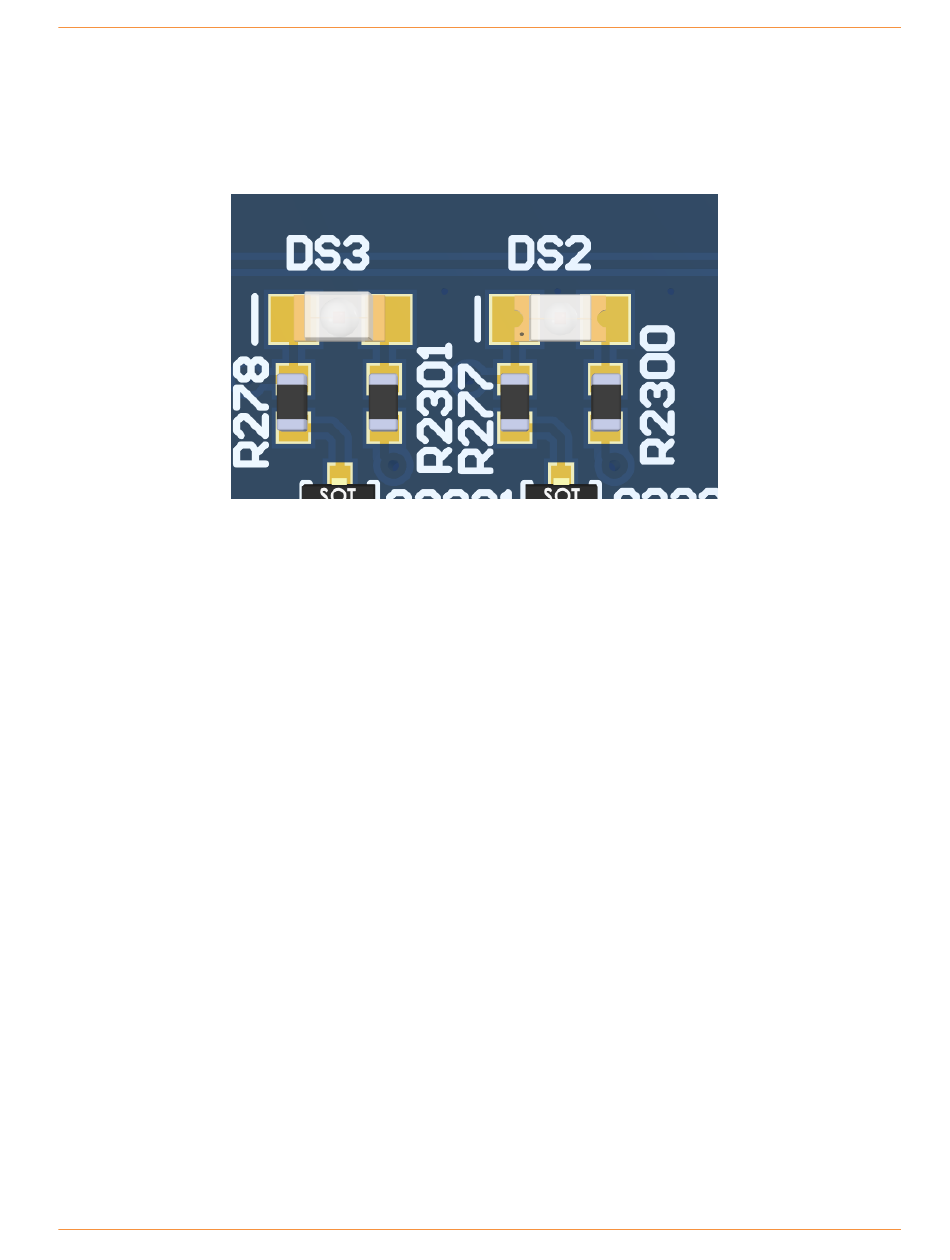

Figure 27 User LEDs
