On Board PCB Wi-Fi and BT Antennas
The Open-Q™ 624A carrier board has two on-board Wi-Fi PCB antennas and one on-board Bluetooth
antenna that connects to the Wi-Fi/BT module on the SOM via coaxial cables. These antennas connect to the
SOM in the following configuration:
o
WLAN ANT1 on the carrier board connects through coax connector J9 to MH4F connector
ANT0 on the Wi-Fi/BT module
o
WLAN ANT2 on the carrier board connects through coax connector J8 to MH4F connector
ANT1 on the Wi-Fi/BT module
BT ANT on the carrier board connects through coax connector J7 to MH4F connector BT on
o
the Wi-Fi/BT module
WLAN
ANT1
Open-Q™ 624A Development Kit User Kit
WLAN
ANT0

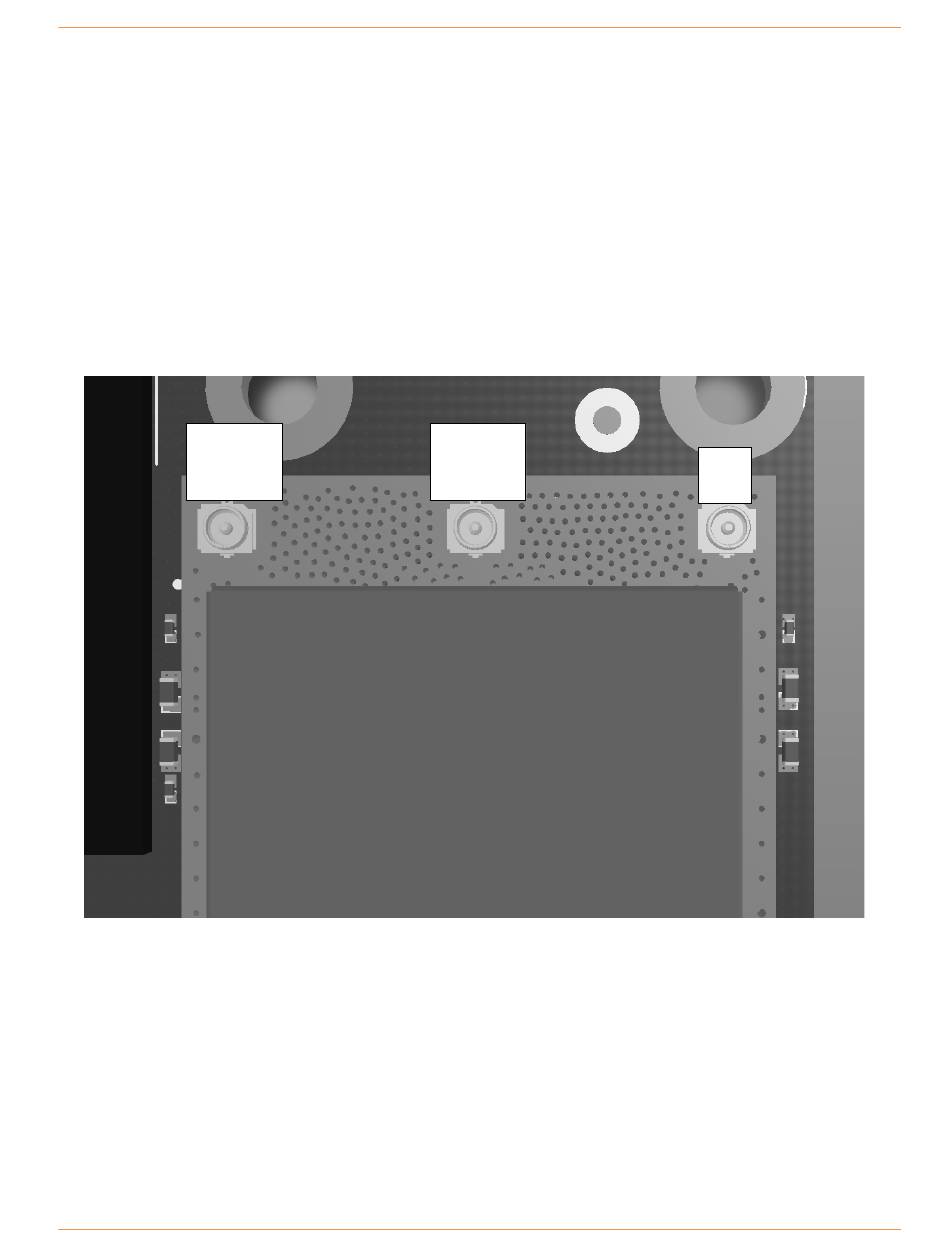

Figure 18 Wi-Fi/BT Module Antenna Connectors
Open-Q™ 624A Development Kit
BT
39
