Battery Connector J300 - Intrinsyc LANTRONIX Open-Q 624A User Manual

Function
CBL_PWR_N
NC
BAT_THERM
BAT_ID
Warning! Before making any changes to the dip switch, make sure to note down the previous configuration.

3.8.6 Battery Connector J300

Open-Q™ 624A Development Kit User Kit
Switch
Position
1 When switch is ON, platform will automatically
boot when power is applied
2 No Function
3 Turn switch ON to simulate battery thermistor,
either when using a battery pack without
thermistor, or when using onboard DC power
supply instead of battery.
4 Turn switch ON to simulate battery ID, either
when using a battery pack without a battery ID
pin, or when using onboard DC power supply
instead of battery.

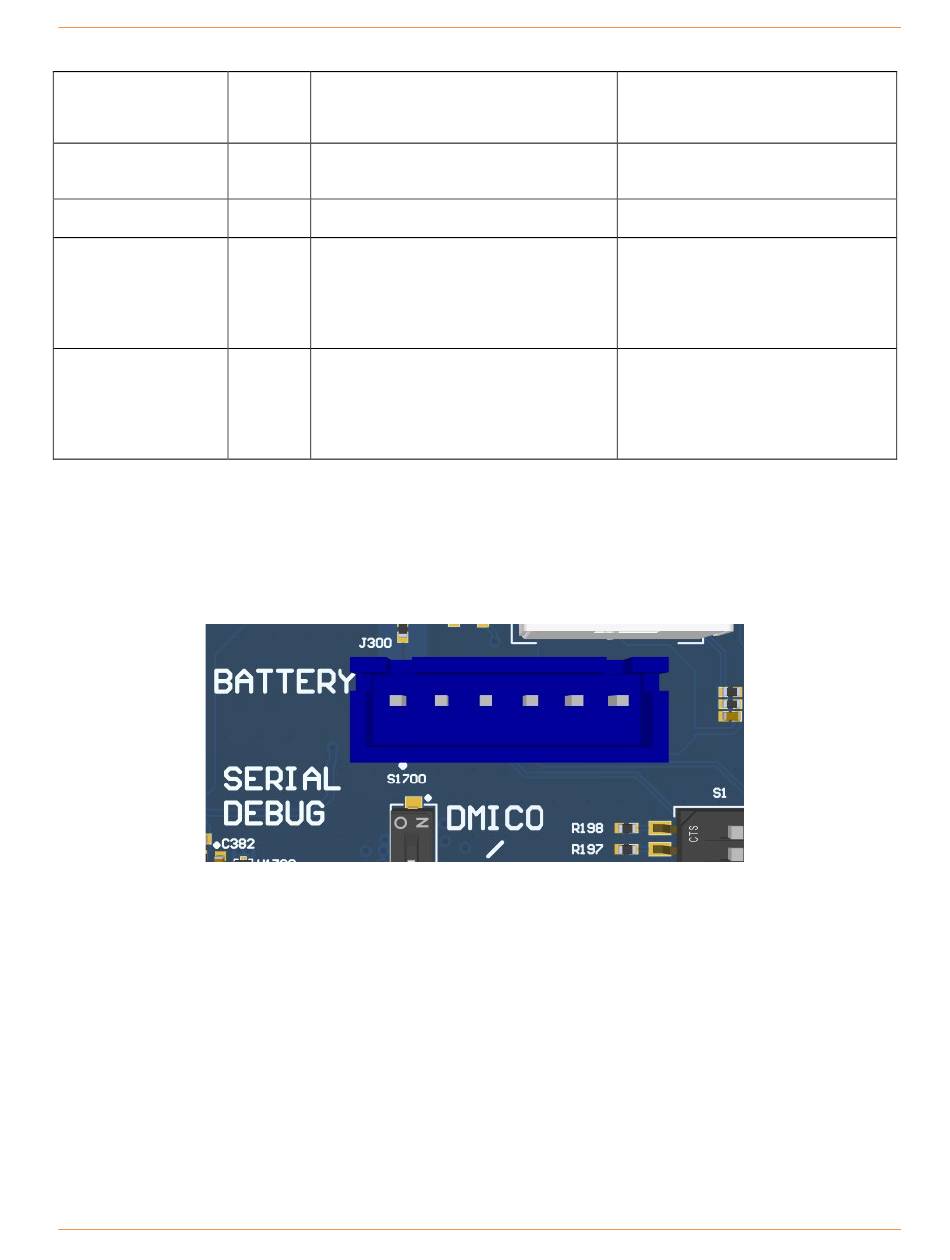

Figure 8 J300 Battery Connector
Description
Open-Q™ 624A Development Kit
Notes
Default out of the box configuration is ON
Default out of the box configuration is ON.
See section 3.8.4 above for more details
on switching between battery and onboard
DC Power Supply.
Default out of the box configuration is ON.
See section 3.8.4 above for more details
on switching between battery and onboard
DC Power Supply.
