Open-Q™ 624A Development Kit
Therefore, if the goal is to evaluate the GNSS receiver performance of the SOM with a user-selected antenna
intended for an end product, it should be connected directly to the SOM's GPS antenna connector (U.FL) to
eliminate the effects of the LNA, filter, and coax cable losses on the carrier board.

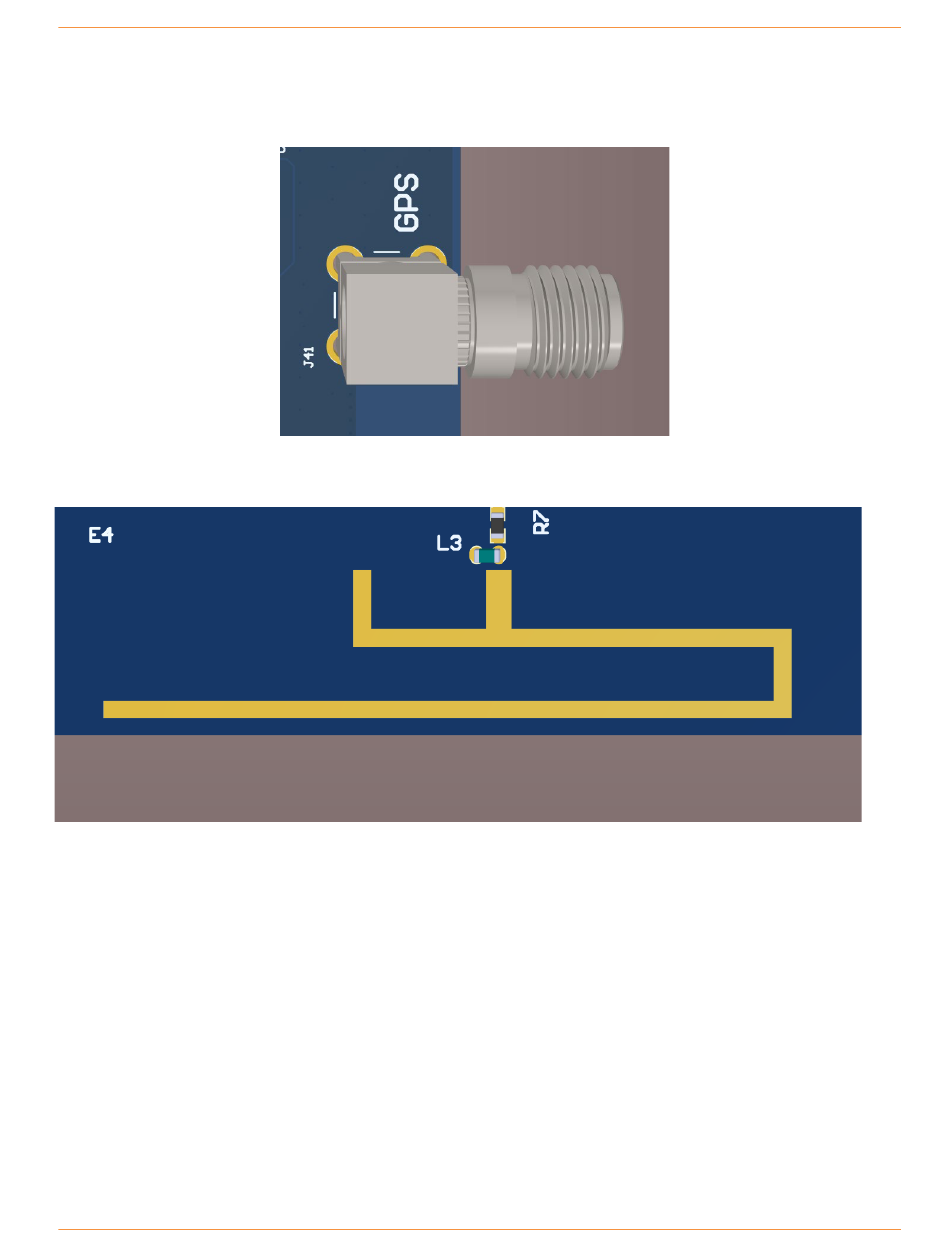

Figure 20 GNSS External Antenna Connector
Figure 21 Onboard GNSS Antenna
Open-Q™ 624A Development Kit User Kit
41
