Output from two WSA8815 amplifiers are available at J2100. The WSA8815 amplifiers can deliver up to 4.0 W
into an 8 Ω load with 1% THD. Speaker impedances of 4 Ω to 8 Ω are supported.
Description
Speaker Left Channel (-)
Speaker Left Channel (+)
Speaker Right Channel (-)
Speaker Right Channel (+)
Open-Q™ 624A Development Kit User Kit

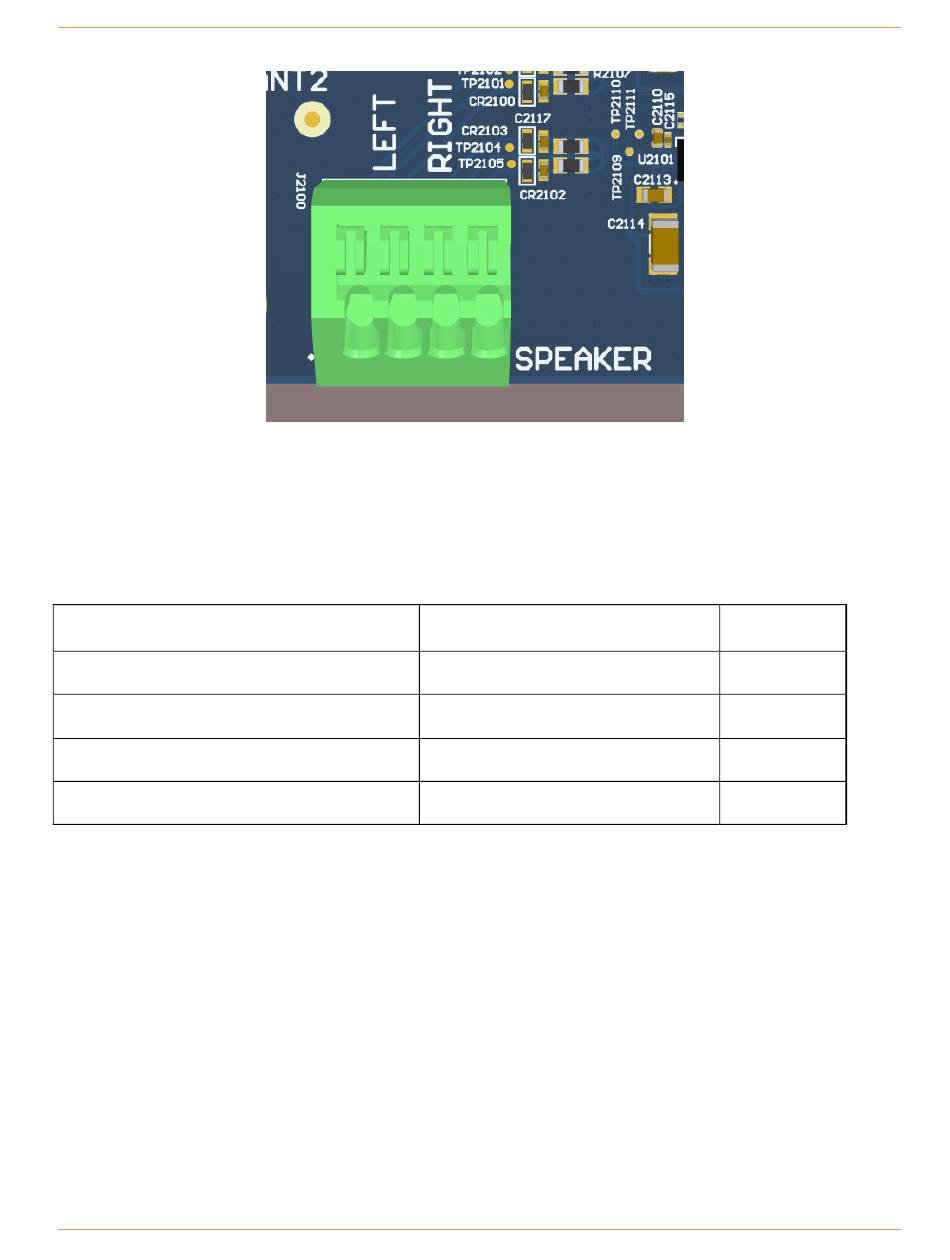

Figure 16 Stereo Speaker Header J2100
Table 3-12 Stereo Speaker Header J2100
Signal
WSA_SPKR_L_N
WSA_SPKR_L_P
WSA_SPKR_R_N
WSA_SPKR_R_P
Open-Q™ 624A Development Kit
Pin NO
J2100[1]
J2100[2]
J2100[3]
J2100[4]
