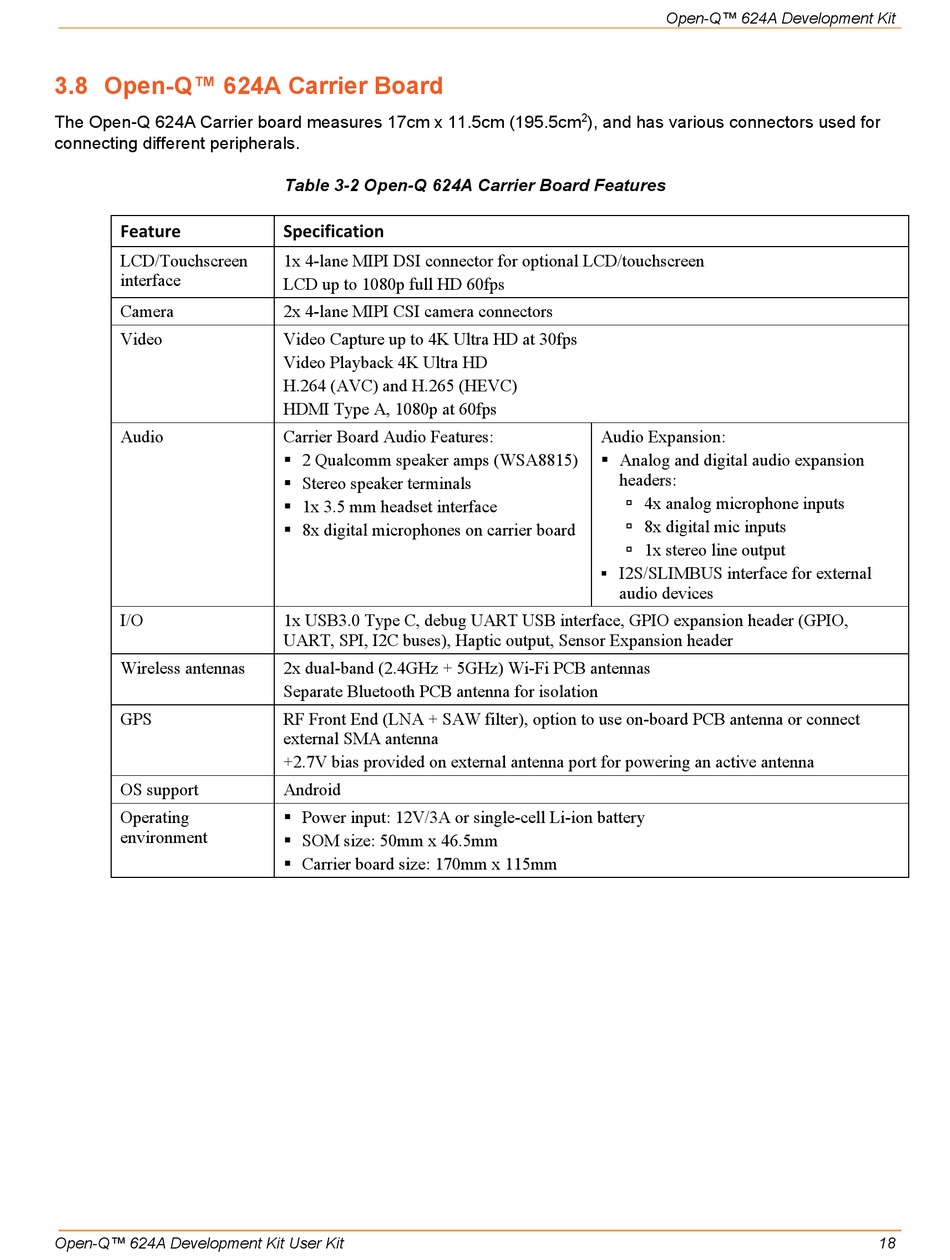

3.8 Open-Q™ 624A Carrier Board
The Open-Q 624A Carrier board measures 17cm x 11.5cm (195.5cm
connecting different peripherals.
Feature
LCD/Touchscreen
interface
Camera
Video
Audio
I/O
Wireless antennas
GPS
OS support
Operating
environment
Open-Q™ 624A Development Kit User Kit
Table 3-2 Open-Q 624A Carrier Board Features
Specification
1x 4-lane MIPI DSI connector for optional LCD/touchscreen
LCD up to 1080p full HD 60fps
2x 4-lane MIPI CSI camera connectors
Video Capture up to 4K Ultra HD at 30fps
Video Playback 4K Ultra HD
H.264 (AVC) and H.265 (HEVC)
HDMI Type A, 1080p at 60fps
Carrier Board Audio Features:
 2 Qualcomm speaker amps (WSA8815)
 Stereo speaker terminals
 1x 3.5 mm headset interface
 8x digital microphones on carrier board
1x USB3.0 Type C, debug UART USB interface, GPIO expansion header (GPIO,
UART, SPI, I2C buses), Haptic output, Sensor Expansion header
2x dual-band (2.4GHz + 5GHz) Wi-Fi PCB antennas
Separate Bluetooth PCB antenna for isolation
RF Front End (LNA + SAW filter), option to use on-board PCB antenna or connect
external SMA antenna
+2.7V bias provided on external antenna port for powering an active antenna
Android
 Power input: 12V/3A or single-cell Li-ion battery
 SOM size: 50mm x 46.5mm
 Carrier board size: 170mm x 115mm
Open-Q™ 624A Development Kit
), and has various connectors used for
2
Audio Expansion:
 Analog and digital audio expansion
headers:
 4x analog microphone inputs
 8x digital mic inputs
 1x stereo line output
I2S/SLIMBUS interface for external

audio devices
18
