Open-Q™ 624A Development Kit
3.8.23
USB Type C Port J2500

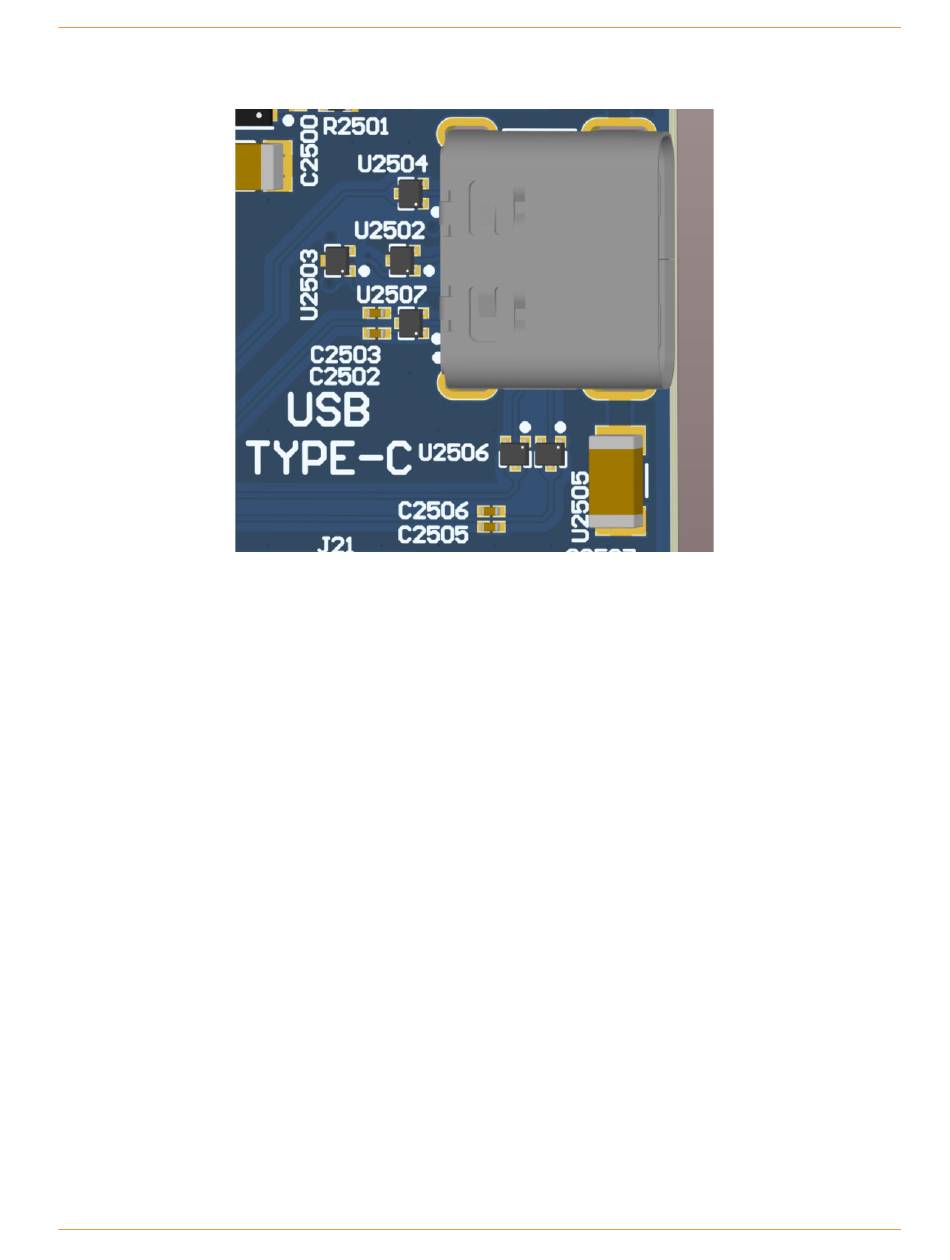

Figure 26 USB Type C Port J2500
J2500 is a USB 3.0 Type C Connector with SuperSpeed and High-Speed connections. The connector pinout
follows the industry standard for USB 3.0. Embedded Display Port (eDP) is not supported.
Android ADB Access is possible on the HS lines using a USB Type C to Micro B adaptor.
Open-Q™ 624A Development Kit User Kit
51
