Intrinsyc Open-Q 626 mSOM Quick Start Manual

Package Contents
1. Open-Q™ 626 µSOM with APQ8053 processor

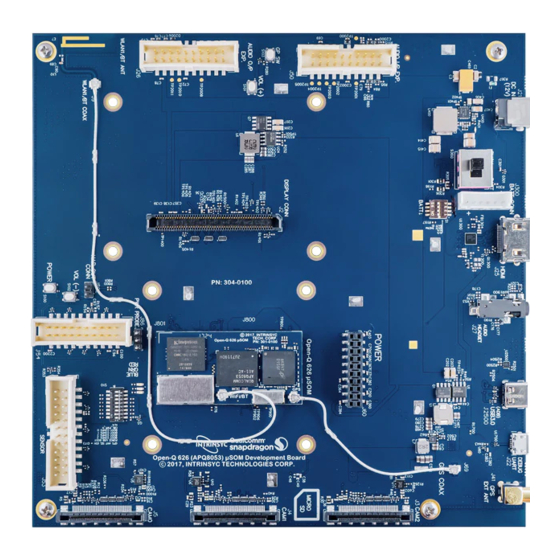

2. Open-Q™ 626 Carrier board
3. STEVAL_MKI128V6 sensor accessory board
4. AC Power Adapter
5. HDMI Video Cable
6. 4.5" FWVGA MIPI DSI LCD/touchscreen (optional accessory)
1. WLAN PCB Antenna 24. SOM power measurement
2. Audio output expansion header
25. GPIO expansion header
3. Volume + button
26. Volume - button
4. General Purpose button
27. Power button
5. Audio input expansion header
28. MIPI DSI LCD/touchscreen
6. 12V DC input jack
7. Power source switch
8. Battery connector
29. 16GB eMMC flash memory
9. Battery charge config switch
30. APQ8053 CPU
10. HDMI video output
31. 2GB LPDDR3 RAM memory
11. 3.5 mm headset jack
32. GPS antenna connector U.FL
12. Power header
33. WLAN antenna connector U.FL
13. USB Type-C connector
34. Open-Q 626 µSOM (micro Sys-
14. Debug UART (USB MicroB)
15. GPS ext. ant. SMA connector
16. GPS PCB Antenna (on bottom)
17. MIPI camera 2 connector
18. Micro SD slot (on bottom)
19. MIPI camera 1 connector
20. MIPI camera 0 connector
21. Sensor board header
22. Configuration DIP switches
23. 3 x LEDs
Your use of this document is subject to and governed by those terms and conditions (https://www.intrinsyc.com/legal-terms/qualcomm-terms.html) in the Intrinsyc Purchase and Software License Agreement for the Open-Q™ 626 µSOM Development Kit based on the Qualcomm® Snapdrag-
on™ 626 Processor (APQ8053), which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing an Open-Q™ 626 µSOM Development Kit from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered
part of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of the Open-Q™ 626 µSOM Development Kit under the Agreement. Distribution of this document is strictly prohibited without the express written permission of Intrinsyc Tech-
nologies Corporation and its respective licensors, which they can withhold, condition or delay in its sole discretion. Intrinsyc is a trademark of Intrinsyc Technologies Corporation, registered in Canada and other countries. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated,
registered in the United States and other countries. Other product and brand names used herein may be trademarks or registered trademarks of their respective owners.
™
Open-Q 626 µSOM Development Kit
Quick Start Guide
header
28
connector to interface with
Intrinsyc display adapter
27
26
25
24
23
tem on Module)
22
21
1 3
2
29 30
33
20 19
4
5
34
31
32
18 17
6
7
8
9
10
11
12
13
14
15
16
