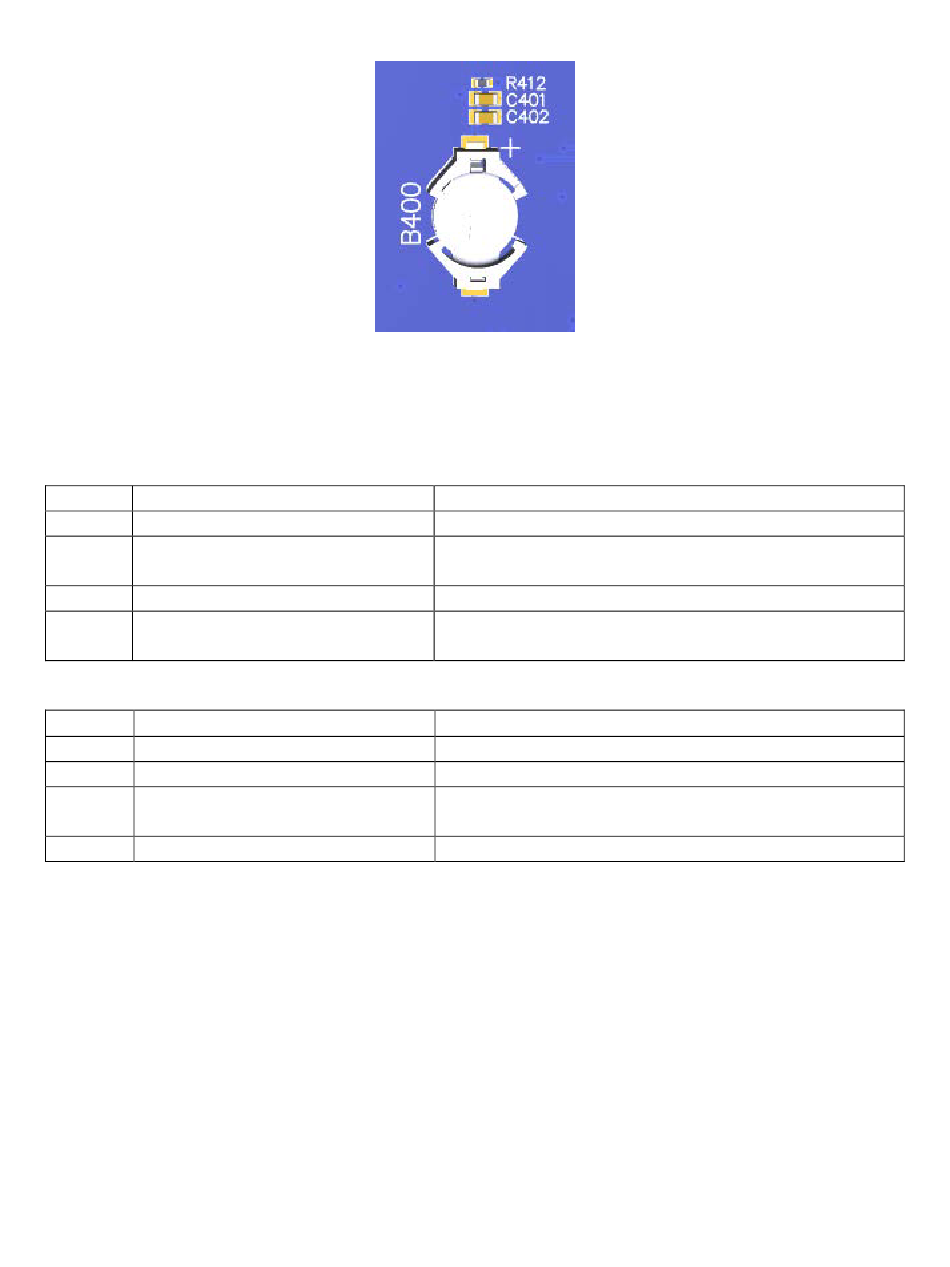

Open-Q™ 2500 Development Kit User Guide

3.7.6 User Buttons and LEDs

There are four user buttons and four LED's on the Open-Q 2500 development kit. Following is the
information regarding the User Buttons:
User Button
S1100 Volume +
S1102 Volume -
S1101 GP Switch
S1103 Power ON
Following is the information regarding the User LED's:
LED
DS1100 Yellow LED
DS1101 Blue LED
DS1102 Red LED
DS1103 Green LED
Function
Use this button to control or increase the volume.
Use this button to control or decrease the volume.
This button can also be used to reset the board.
This is a general-purpose user button.
Use this button to power on the 2500 development
kit.
Function
General purpose LED
General purpose LED
This LED indicates charging (NOTE: not functional
in REV1 of carrier board)
This LED indicates power
