3.8.10
Debug Serial UART over USB J22
The UART connection used on the Open-Q 624A is a USB micro B connector (J22). This debug UART is
available over USB via the FTDI FT232RQ chip on the carrier board. To get the serial terminal working with a
PC, user needs to ensure that the appropriate FTDI drivers are installed.
Also, ensure the following DIP Switch is set:
DIP Switch S10 – Position 8 'FORCE_SW_UART' Set to OFF/OPEN
The following table shows the serial configuration:
Open-Q™ 624A Development Kit User Kit

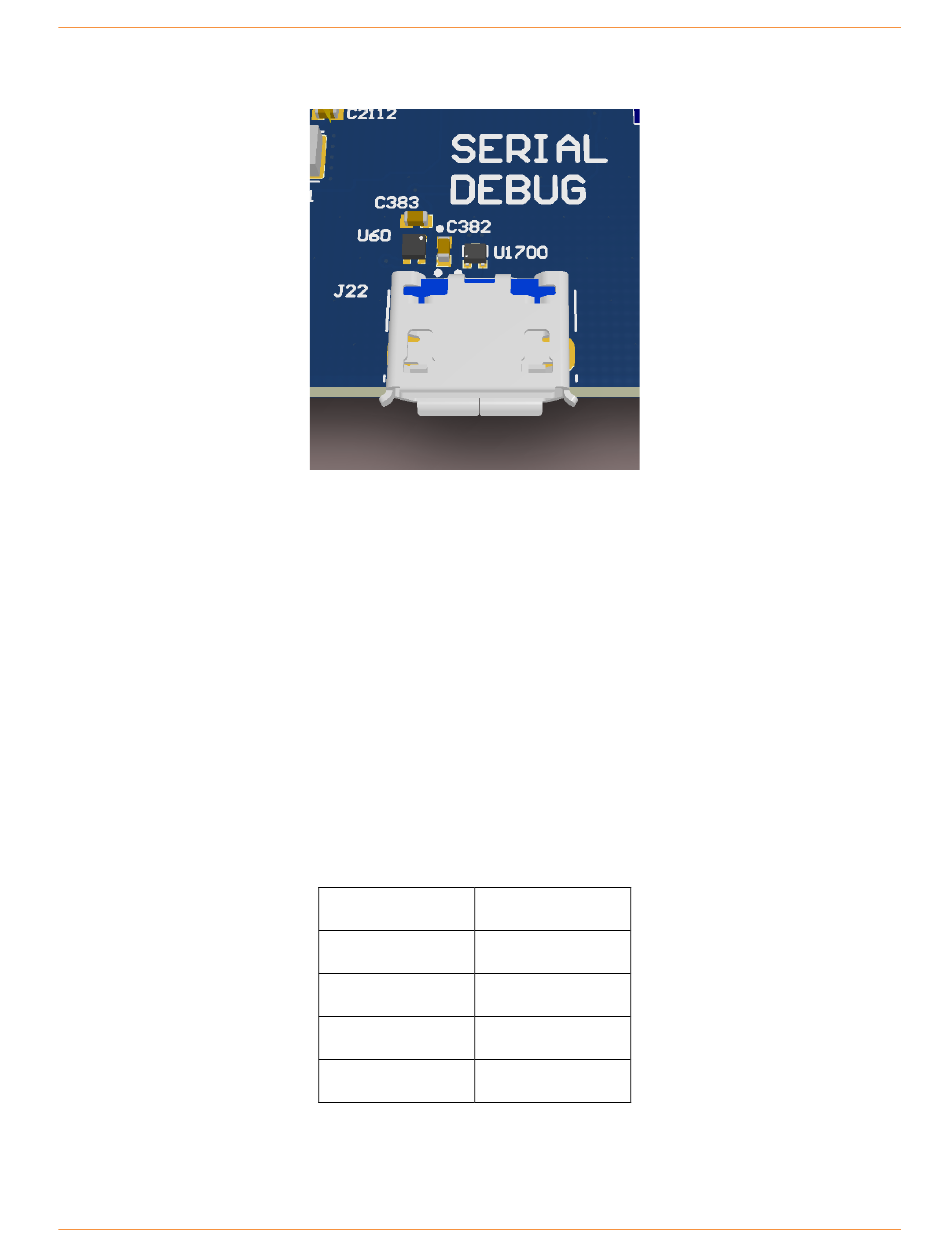

Figure 12 J22 Debug UART over USB
Table 3-9 Serial Debug Port Settings
Baud Rate
115200
Data Bits
8
Parity
none
Stop Bits
1
Flow Control
none
Open-Q™ 624A Development Kit
28
